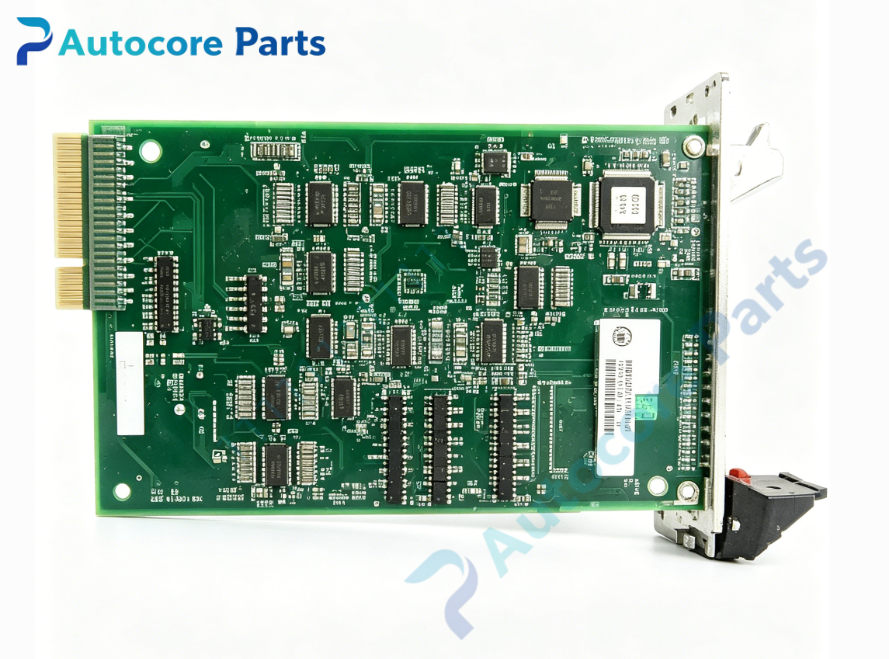

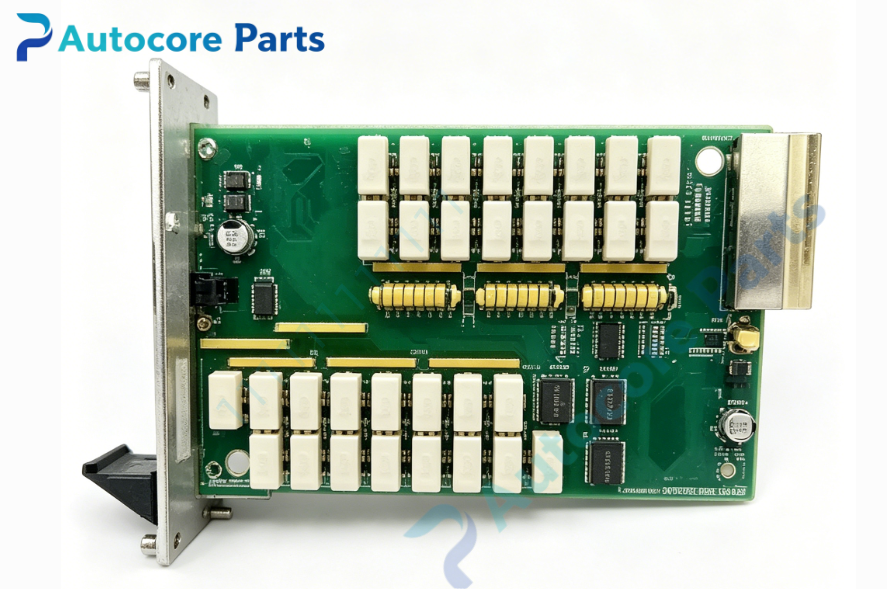

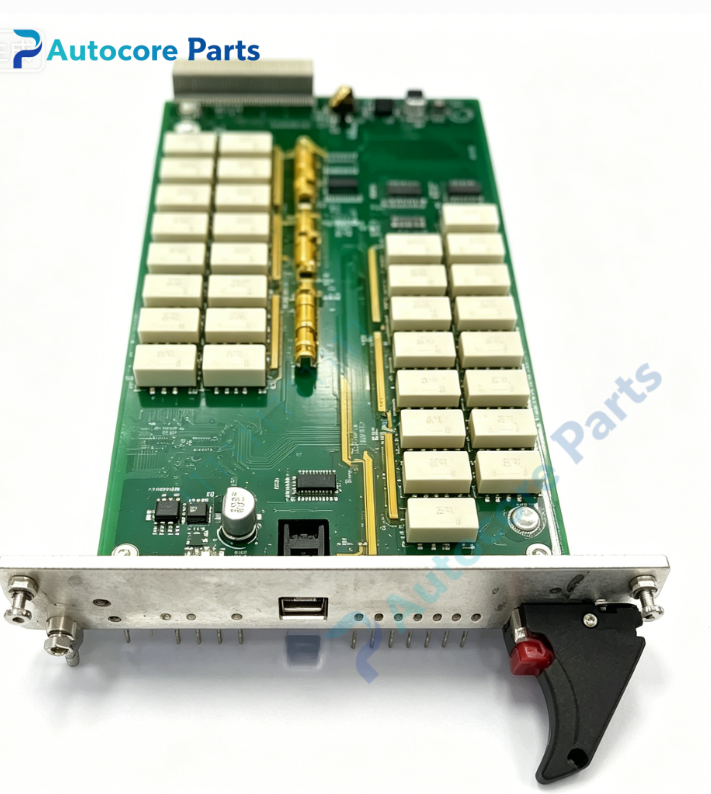

AMAT 0190‑23441 300mm Enabler Interlock Module PCB Assembly

Technical Specifications

Model：0190‑23441

Brand：AMAT Applied Materials

Product Type：300mm Enabler Interlock Module PCB assembly

Applicable System：AMAT 300mm semiconductor process equipment mainframe subsystem

Supply Voltage：5V,24VDC auxiliary DC power input

Interface：Multi‑pin signal connectors for safety sensor and system control unit

Common Revision：Multiple hardware revisions available

Status Indicator：On‑board LED for interlock trigger and fault diagnostic status

Built‑in Function：Safety interlock signal acquisition,enabler permission logic processing,mainframe safety lock‑out trigger,hardware fault detection,fault status feedback to host controller

Working Temperature：0℃ ~ +50℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：Chassis internal fixed installation

Weight：0.44kg

Product Brief:

0190‑23441 is legacy 300mm enabler interlock module PCB assembly manufactured by AMAT Applied Materials. It acts as safety protection control module for 300mm tool mainframe subsystem. It collects multi‑group safety sensor signals, executes enabler permission logic and triggers equipment safety lock‑out under abnormal conditions. On‑board LED provides visual diagnosis for interlock trigger and fault state. This is EOL discontinued spare part,widely used for maintenance and renovation of AMAT legacy 300mm wafer fabrication tools. Please confirm hardware revision and equipment compatibility before purchase. Strict ESD anti‑static protection shall be performed during installation.
