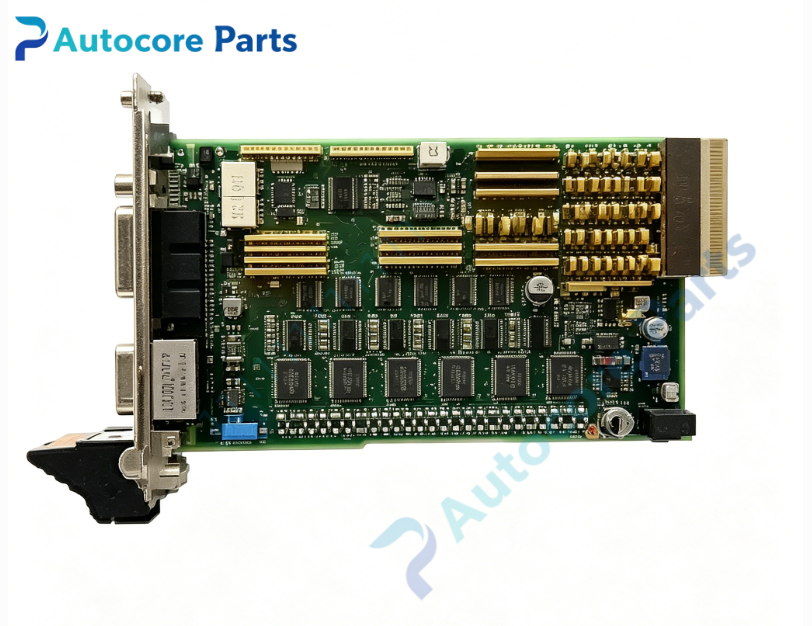

AMAT DIP15049105 CDN491 DeviceNet I/O PCB Assembly

Technical Specifications

Model：DIP15049105，Cross‑Ref P/N:0190‑08860，Sub‑Model:CDN491

Brand：AMAT Applied Materials

Product Type：CDN491 DeviceNet I/O PCB assembly

Applicable System：AMAT semiconductor process equipment,CPCI‑bus control architecture

Supply Voltage：5V auxiliary DC power input

Interface：CPCI bus connector,DeviceNet field‑bus communication port

Common Revision：REV001,REV002,multiple hardware revisions available

Status Indicator：On‑board LED for bus link,channel activity and fault diagnostic status

Built‑in Function：Multi‑channel signal access,DeviceNet protocol processing,CPCI‑DeviceNet data gateway,data interaction with MFC,sensors and digital valves,alarm signal transmission to host controller

Working Temperature：0℃ ~ +50℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：CPCI card cage plug‑in installation

Weight：0.41kg

Product Brief:

DIP15049105 is legacy CDN491 DeviceNet I/O PCB assembly manufactured by AMAT Applied Materials, functionally cross‑referenced to part number 0190‑08860. It acts as CPCI‑bus field‑bus gateway module. It completes protocol conversion and reliable data exchange between host controller and field devices such as MFC,pressure sensors and digital valves. On‑board LED provides visual diagnosis for bus link,channel running and fault state. This is EOL discontinued spare part,widely used for maintenance and renovation of AMAT legacy wafer fabrication tools. Please confirm hardware revision and equipment compatibility before purchase. Strict ESD anti‑static protection shall be performed during installation.
