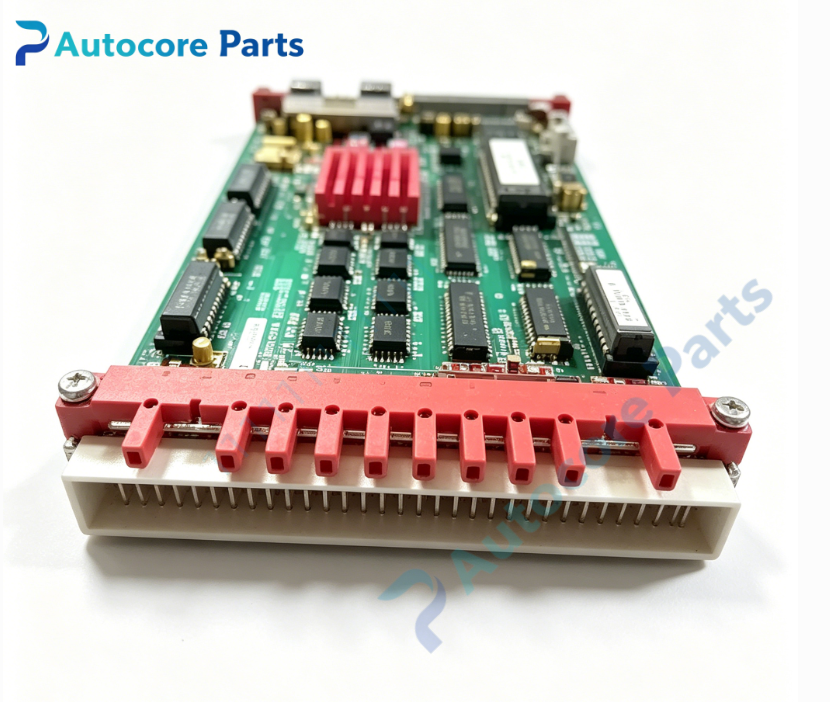

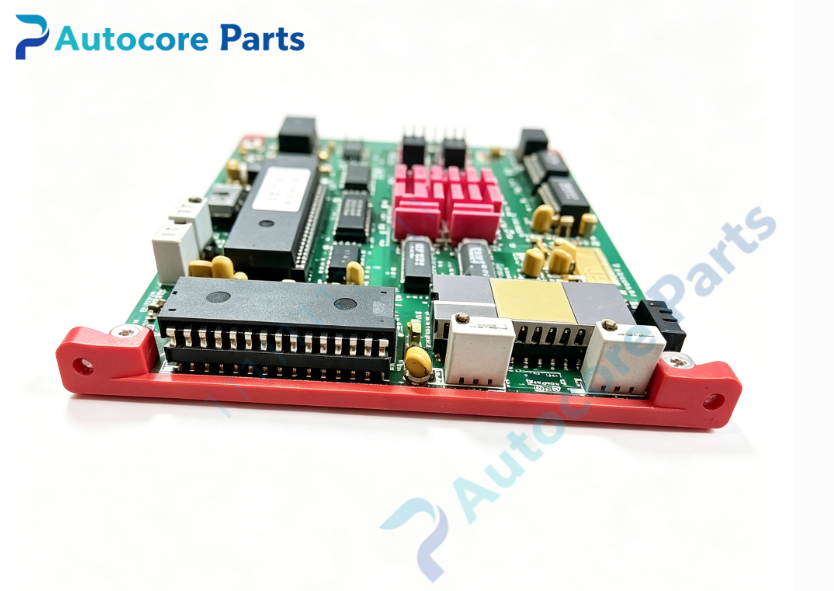

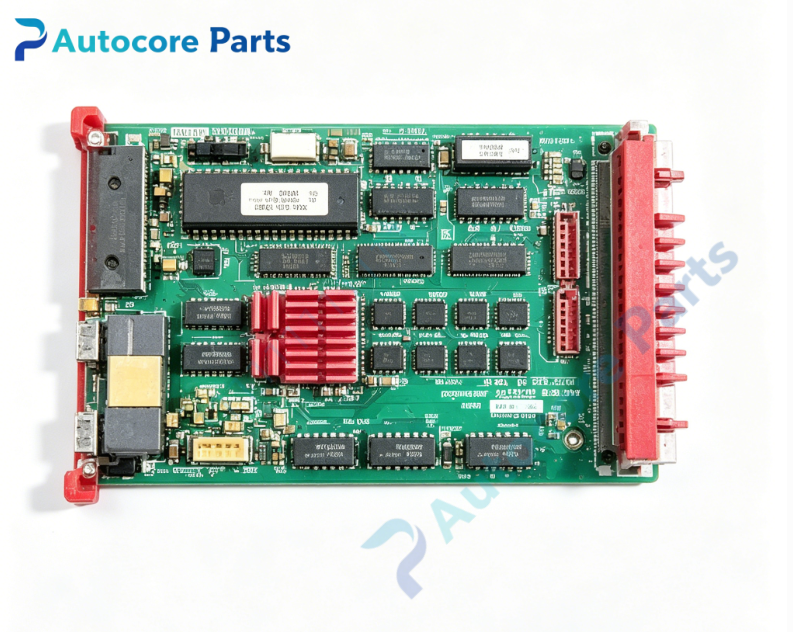

AMAT 0100‑09022 Mini AI/AO Detector Board Assembly

Technical Specifications

Model：0100‑09022

Brand：AMAT Applied Materials

Product Type：Mini AI/AO detector PCB assembly

Applicable System：AMAT Centura,P5000 200mm semiconductor process equipment

Supply Voltage：5V,±12V VME backplane power supply

Signal Type：Multi‑channel analog input and analog output

Connector：D‑Sub multi‑pin field signal connectors

Common Revision：Rev F

Status Indicator：On‑board multi‑color LED for channel working and fault status

Built‑in Function：Analog sensor signal acquisition,analog output drive,signal filtering and conditioning,process parameter detection,hardware self‑diagnosis,data interaction with main CPU via system bus

Working Temperature：0℃ ~ +50℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：Chassis slot plug‑in installation

Weight：0.68kg

Product Brief:

0100‑09022 is legacy Mini AI/AO detector board assembly manufactured by AMAT Applied Materials. It serves as analog signal interface unit for Centura and P5000 wafer processing equipment. It acquires raw analog signals from pressure,temperature and flow sensors inside process chamber,performs signal filtering and conditioning,and outputs analog control signals to field actuators. On‑board LED indicators support quick on‑site channel status inspection and fault diagnosis without extra testing tools. Plug‑in slot structure enables convenient disassembly and replacement. This is EOL discontinued spare part,widely used for maintenance and renovation of AMAT legacy 200mm wafer fabrication tools. Please confirm hardware revision and equipment compatibility before purchase. Strict ESD anti‑static protection shall be performed during installation.
