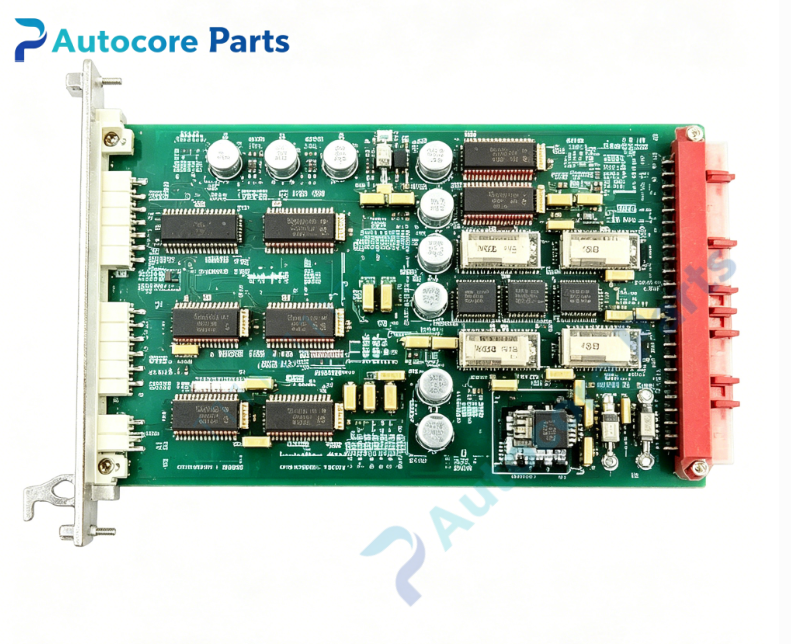

AMAT 0100‑90140 Chamber Interconnect PCB Assembly

Technical Specifications

Model：0100‑90140

Brand：AMAT Applied Materials

Product Type：Chamber interconnect PCB assembly

Applicable System：AMAT Centura,P5000 200mm semiconductor process equipment

Supply Voltage：5V,±12V auxiliary power supply

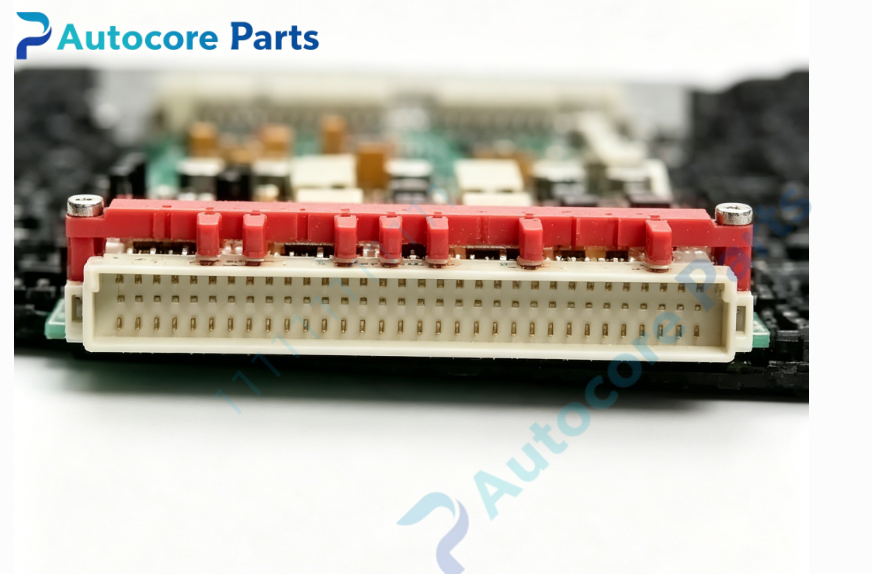

Interface：Multi‑pin high‑density signal connectors for chamber signal interconnection

Common Revision：Multiple hardware revisions available

Status Indicator：No on‑board LED,working status fed back by connected functional boards

Built‑in Function：Process‑chamber signal routing and distribution,cross‑subsystem signal transition,impedance matching,mechanical positioning for internal wiring,electrical signal isolation

Working Temperature：0℃ ~ +50℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：Fixed installation inside equipment chassis

Weight：0.44kg

Product Brief:

0100‑90140 is legacy chamber interconnect PCB assembly manufactured by AMAT Applied Materials. It acts as signal routing transition unit between process chamber and main control system for Centura and P5000 wafer fabrication equipment. It implements signal distribution,impedance matching and partial electrical isolation for chamber sensors and actuators. High‑density reliable connectors guarantee stable signal transmission under long‑term production environment. This is EOL discontinued spare part,widely used for maintenance and renovation of AMAT legacy 200mm wafer fabrication tools. Please confirm hardware revision and system compatibility before purchase. Strict ESD anti‑static protection shall be performed during installation.
