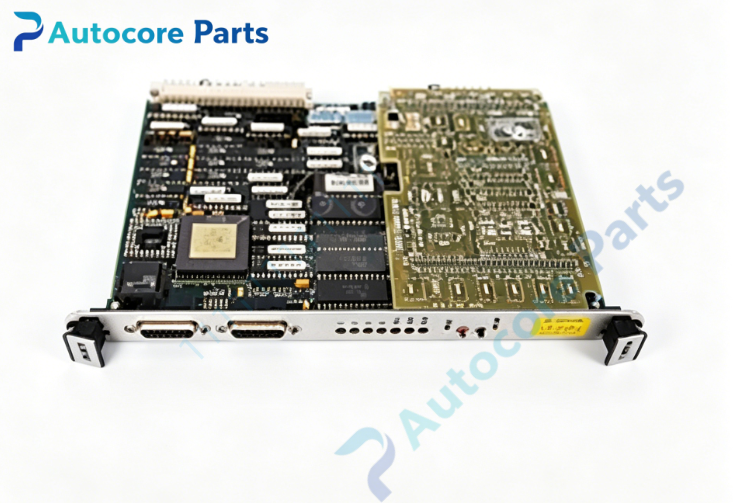

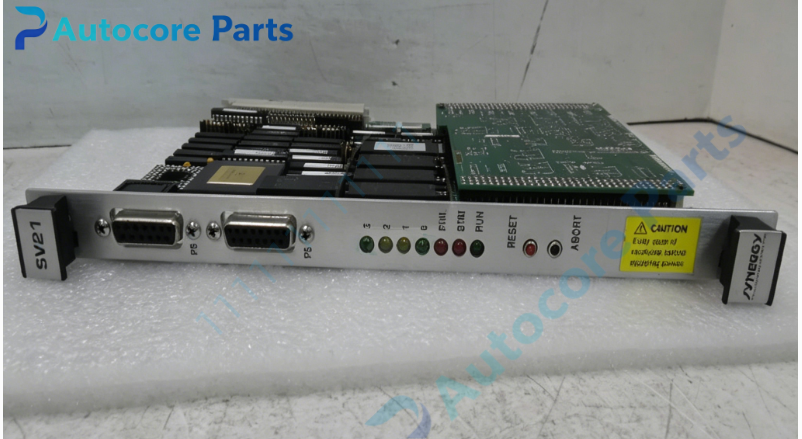

AMAT 0120‑90449 Chamber Interface PWBA Assembly

Technical Specifications

Model：0120‑90449

Brand：AMAT Applied Materials

Product Type：Chamber interface PWBA populated assembly

Applicable System：AMAT Centura,P5000 200mm semiconductor process equipment

Supply Voltage：5V,±12V auxiliary power supply

Interface：Multi‑pin high‑density signal connectors for chamber‑control interconnection

Common Revision：Multiple hardware revisions available

Status Indicator：No on‑board LED,working status fed back by connected functional boards

Built‑in Function：Process‑chamber signal routing and distribution,cross‑subsystem signal transition,signal impedance matching,hardware signal conditioning,mechanical positioning for internal wiring

Working Temperature：0℃ ~ +50℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：Fixed installation inside equipment chassis

Weight：0.44kg

Product Brief:

0120‑90449 is legacy populated chamber interface PWBA assembly manufactured by AMAT Applied Materials. It is the fully component‑soldered finished assembly,corresponding to bare PCB version. It acts as signal routing transition unit between process chamber and main control system for Centura and P5000 wafer fabrication equipment. It implements signal distribution,impedance matching and signal conditioning for chamber sensors and actuators. High‑density reliable connectors guarantee stable signal transmission under long‑term production environment. This is EOL discontinued spare part,widely used for maintenance and renovation of AMAT legacy 200mm wafer fabrication tools. Please confirm hardware revision and system compatibility before purchase. Strict ESD anti‑static protection shall be performed during installation.
