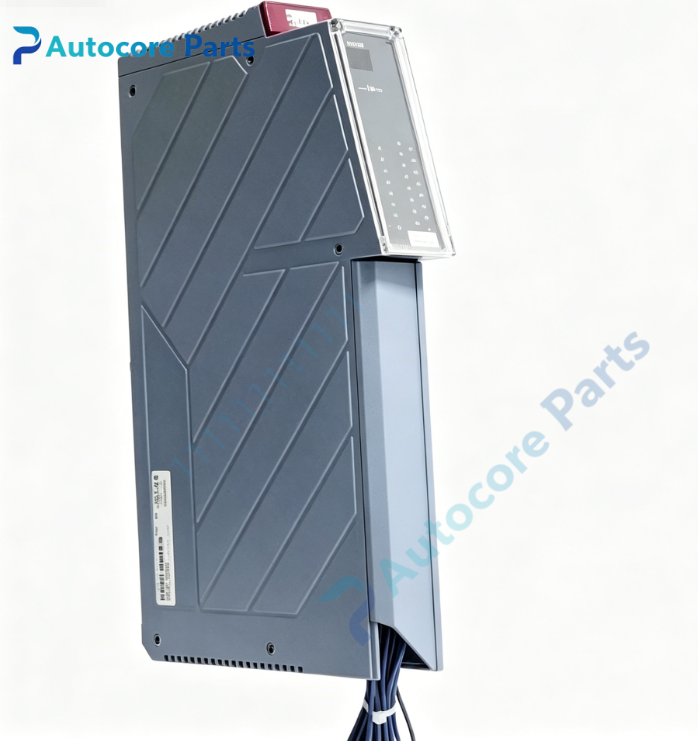

B&R 2DI426.6 Digital Input Module

Technical Specifications

Model:2DI426.6 (DI426)

Brand:B&R

Product Type:2010 series PLC digital input module

Applicable System:B&R 2010 series PLC system,applied for packaging machinery,automated assembly,process equipment for switch and sensor signal acquisition

Input Voltage:24VDC nominal,max 30VDC

Channel Quantity:32 digital inputs,divided into 8 isolated groups

Input Mode:sink / source configurable

Response Time:1ms

Isolation:optocoupler isolation between input groups

Installation:install on BP200 / BP201 / BP210 base plate,terminal blocks sold separately

Degree of protection:IP20

Certification:CE,cULus

Working temperature:0℃ ~ +55℃

Storage temperature:‑25℃ ~ +70℃

Relative humidity:5‑85% non‑condensing,pollution degree 2

Built‑in function:2010 series digital input module collects field switch and proximity‑sensor signals,transmits digital data to PLC backplane bus. Optocoupler group‑isolation suppresses field interference. Supports sink and source wiring modes to match different field devices. Each group with status indicator for quick fault diagnosis,hot‑swap supported during equipment maintenance

Product Brief

2DI426.6 (DI426) belongs to B&R 2010 series I/O module family,it provides 32‑channel high‑speed digital input for PLC control system. It needs matching base plate and separate terminal blocks for field wiring. Widely used for original B&R automation equipment maintenance and renovation. Before purchase,please confirm PLC hardware version and base‑plate compatibility. ESD anti‑static protection shall be followed during installation
