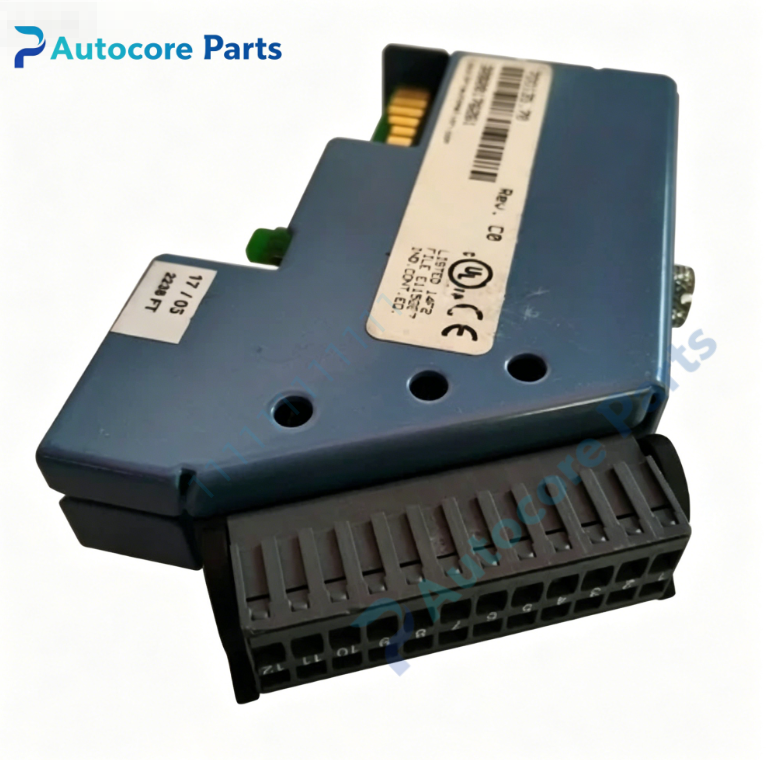

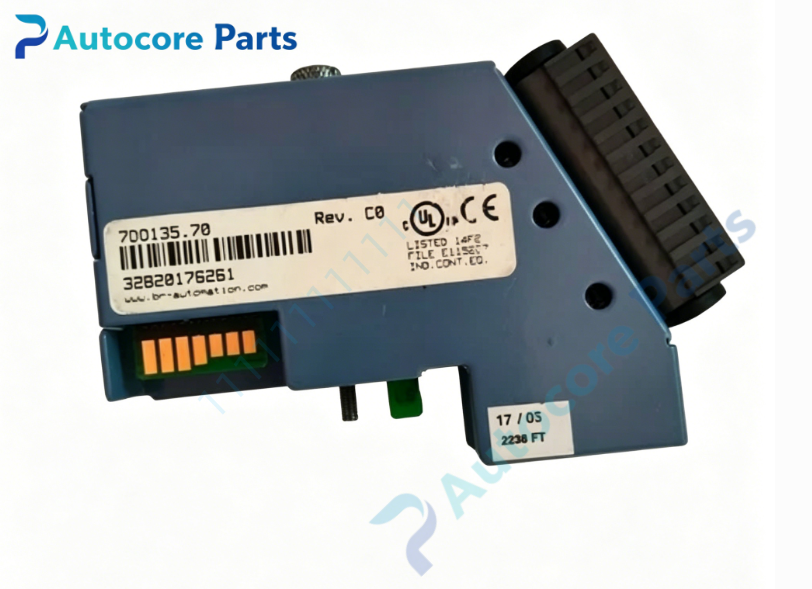

B&R 7DO135.70 Digital Output Module

Technical Specifications

Model:7DO135.70 (DO135)

Brand:B&R

Product Type:2003 series PLC digital output module

Applicable System:B&R 2003 series PLC system,applied for packaging machinery,automated assembly,process equipment for solenoid valve and indicator lamp control

Output Voltage:24VDC

Channel Quantity:16 digital output channels

Single‑channel Current:0.5A

Protection:Independent short‑circuit protection for each channel

Indicator:Channel‑by‑channel status LED

Installation:Screw‑in compact module,plug into 2003 series backplane slot,terminal block TB712 sold separately

Degree of protection:IP20

Certification:CE,cULus

Working temperature:0℃ ~ +55℃

Storage temperature:‑25℃ ~ +70℃

Relative humidity:5‑85% non‑condensing,pollution degree 2

Built‑in function:Compact screw‑in digital output module converts PLC bus digital signals into field switch signals to drive solenoid valves,relays and indicator lights. Each channel supports independent short‑circuit protection to avoid module damage caused by field wiring faults. LED status indicators facilitate on‑site fault diagnosis,supports hot‑swap replacement during equipment maintenance

Product Brief

7DO135.70 (DO135) belongs to B&R 2003 series I/O module family,it provides 16‑channel digital output function for PLC control system. Matching TB712 terminal block is required for field wiring connection. Widely used for original B&R automation equipment maintenance and renovation. Before purchase,please confirm PLC hardware version and slot matching requirement. ESD anti‑static protection shall be followed during installation
