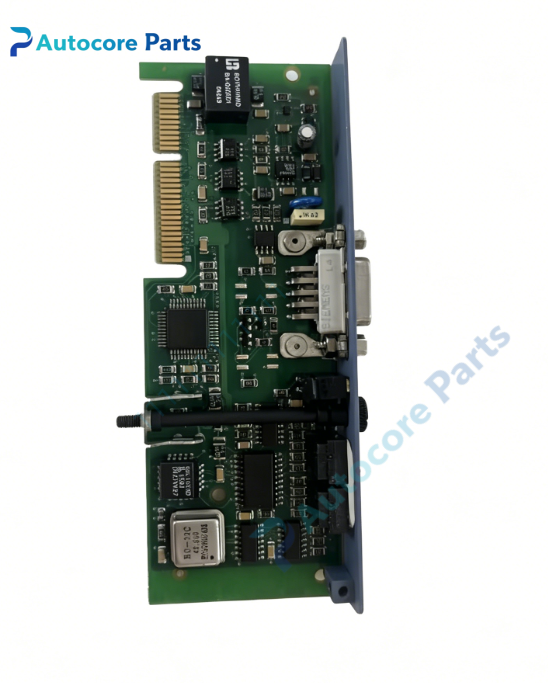

B&R 2DS100.60‑1 Electronic Drum Sequencer Module

Technical Specifications

Model:2DS100.60‑1

Brand:B&R

Product Type:Electronic Drum Sequencer Intelligent I/O Module

Applicable System:B&R System2010 PCC control system, printing machinery, packaging machinery, textile machinery with cam‑shaft control

Matching base plate:BP200, BP201, BP210

Encoder interface:SSI / parallel absolute encoder, 16‑bit resolution

Differential inputs:3×RS422 differential inputs, max 100kHz

Differential outputs:3×RS422 differential outputs, max 100kHz

Digital inputs:16×24VDC sink inputs, 5μs response time

Required accessory:TB140 field terminal block, purchased separately

Isolation:Field side to controller system isolation

Installation:Plug‑in on System2010 backplane base plate

Weight:1.10kg

Degree of protection:IP20

Status indicator:Multi‑LED for input, output and module operational status

Working temperature:0℃ ~ +60℃

Storage temperature:‑40℃ ~ +85℃

Built‑in function:Electronic cam sequencing, absolute encoder position acquisition, high‑speed RS422 differential signal processing, fast digital input capture, cam‑angle triggered output control, surge suppression for high‑speed mechanical cam‑replacement applications

Product Brief

2DS100.60‑1 is B&R System2010 series intelligent electronic drum sequencer module, designed to replace mechanical cam‑shaft units for high‑speed machinery.

It supports SSI and parallel absolute position encoders, acquires real‑time shaft position via 16‑bit encoder reading. 3 channels of RS422 differential inputs and outputs handle high‑frequency position related signals up to 100kHz. 16‑channel 24VDC fast sink‑type digital inputs capture field trigger signals with 5μs high‑speed response.

This module executes electronic cam sequencing locally without heavy CPU load, widely used for printing, packaging and textile equipment. TB140 field terminal block must be ordered separately, not included with module delivery.

This is EOL discontinued spare part for legacy System2010 equipment maintenance. Please confirm base‑plate model and encoder signal type before purchase. Strict ESD anti‑static protection shall be followed during installation.
