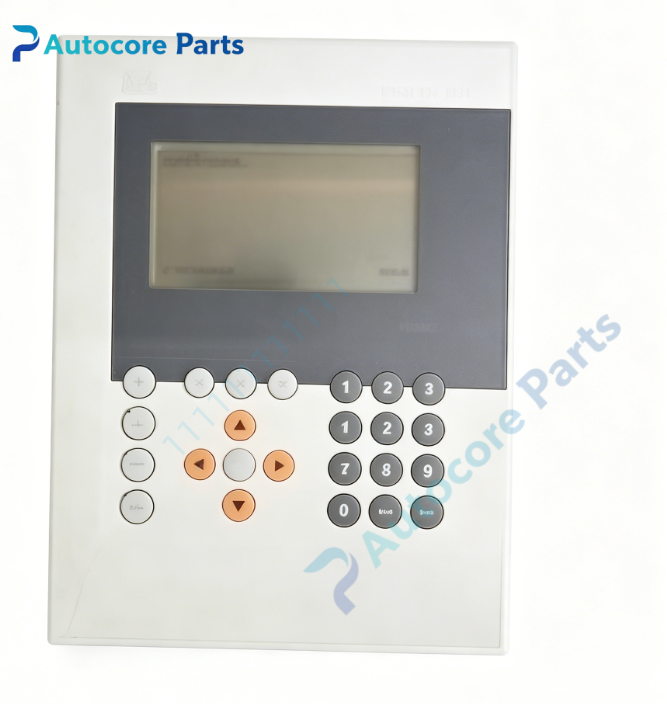

B&R 4C2000.01‑510 Panelware C200 Intelligent Panel Controller

Technical Specifications

Model:4C2000.01‑510

Brand:B&R

Product Type:Panelware C200 Intelligent Panel Controller

Applicable System:B&R System2005 PCC control system, packaging, textile and plastic processing machinery

Memory:256KB SRAM,256KB FlashPROM non‑volatile memory

Real‑time clock:Built‑in battery‑backed non‑volatile real‑time clock

Communication interfaces:2×RS232 non‑isolated,1×galvanic isolated RS485/RS422

Power supply:18‑30VDC, typical current consumption 110mA

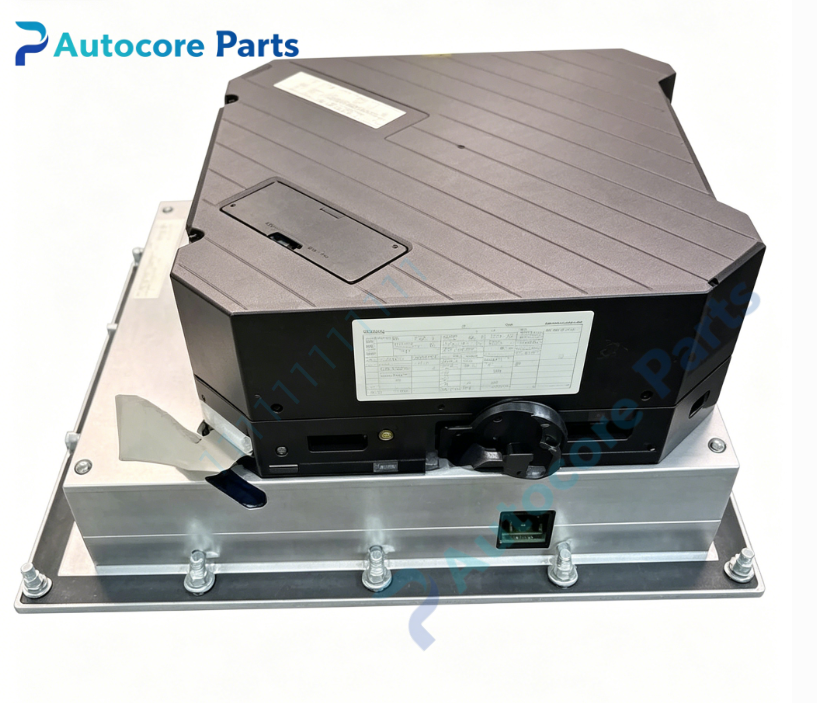

Installation:Cabinet front‑panel cut‑out mounting

Dimension:182mm182mm55mm

Weight:1.10kg

Degree of protection:Front IP54, rear IP20

Physical button:Front‑panel reset button

Certification:CE, cULus, Class I Div.2 hazardous location approval

Working temperature:0℃ ~ +50℃

Storage temperature:‑20℃ ~ +60℃

Built‑in function:Local parameter storage, process data display, alarm message handling, multi‑serial protocol communication, time‑stamped data logging, data exchange with System2005 PCC controller

Product Brief

4C2000.01‑510 is B&R EOL discontinued Panelware C200 intelligent panel controller for System2005 control platform. Equipped with 256KB SRAM working memory and 256KB non‑volatile FlashPROM memory, it supports local parameter storage and data logging to reduce host CPU communication burden.

The unit integrates two RS232 channels and one galvanic isolated RS485/RS422 port, isolated serial channel suppresses ground‑loop interference from industrial cabinet site. Built‑in battery‑backed real‑time clock provides accurate time stamp for alarm and process data records. Front‑panel reset button supports quick local system restart.

It adopts cabinet front‑panel installation with front‑side IP54 protection grade, suitable for cabinet installation scenarios of packaging, textile and plastic machinery. It holds complete CE and UL certifications including Class I Div.2 hazardous‑location approval.

This is legacy EOL spare part, used for maintenance and renovation of existing System2005 automation equipment. Please confirm serial port configuration and panel cut‑out dimension before purchase. Strict ESD anti‑static protection shall be followed during installation.
