B&R 4C2210.01‑510 Panelware C221 Panel Controller

Technical Specifications

Model:4C2210.01‑510

Brand:B&R

Product Type:Panelware C221 Slave Panel Controller

Applicable System:B&R System2005 PCC control system, packaging, textile and plastic processing machinery

Memory:1MB total memory for program and parameter storage

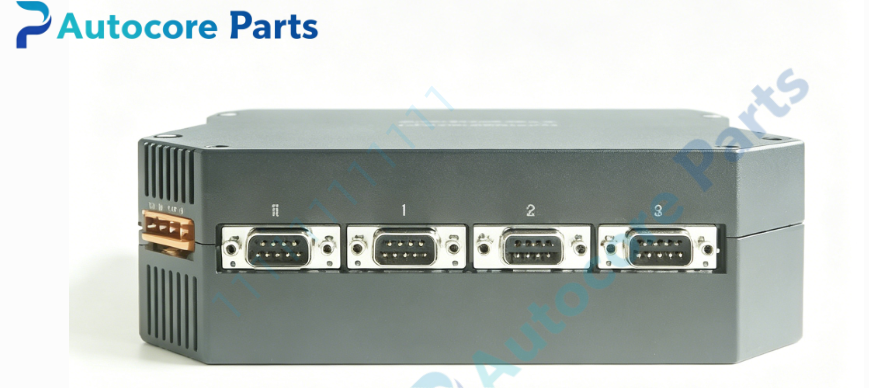

Communication interfaces:1×RS232,1×galvanic isolated RS485/RS422,1×CAN‑bus interface, total 4×D‑SUB9 connectors

Power supply:18‑30VDC, typical 130mA power consumption

Installation:Cabinet rear‑side mounting, matches Panelware operator panel

Degree of protection:IP20

Weight:0.90kg

Status indicator:Multi‑LED for power, bus communication and fault diagnosis

Working temperature:0℃ ~ +60℃

Storage temperature:‑40℃ ~ +85℃

Built‑in function:Panel logic processing, non‑volatile parameter storage, multi‑serial communication, CAN‑bus cyclic data exchange with System2005 PCC, handles HMI keypad and display signal processing locally, reduces host CPU load

Product Brief

4C2210.01‑510 is B&R EOL discontinued C221 intelligent slave controller for Panelware HMI series. It works as backend drive unit for Panelware operator panels and communicates with System2005 PCC controller via CAN‑bus.

Equipped with 1MB memory resource, it processes HMI logic locally, executes keypad input and display data processing, effectively reduces main CPU communication burden. Multiple D‑SUB9 interfaces provide RS232, isolated RS485/RS422 and CAN‑bus channels, isolated serial channel suppresses industrial ground‑loop interference.

Wide‑range 24VDC power input fits cabinet control power supply environment, LED indicators help technicians quickly locate communication and hardware faults.

This is legacy EOL spare part for old‑generation equipment maintenance and renovation. Please confirm CAN‑bus baud rate and matching operator‑panel model before purchase. Strict ESD anti‑static protection shall be followed during installation.
