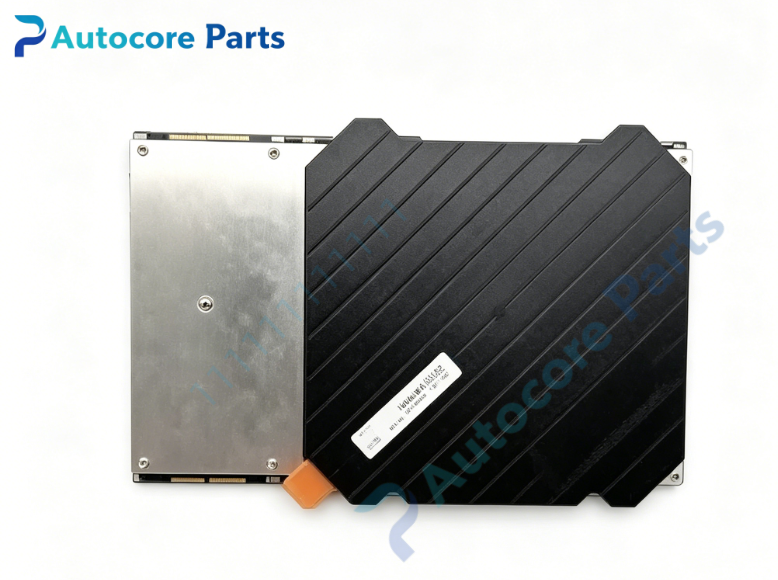

B&R 4D1165.00‑490 Panelware Graphic Display Panel

Technical Specifications

Model:4D1165.00‑490

Brand:B&R

Product Type:Panelware Graphic Display Panel With Integrated Keypad

Applicable System:B&R Panelware HMI solution, cooperates with 4C‑series panel controller for System2005 automation equipment

Display:Black‑on‑white LC display, CFL miniature fluorescent tube backlight

Resolution:128×240 pixels graphic mode, 16 lines ×40 characters text mode, character height 4mm

Key array:47 keys horizontal layout, 30 keys with yellow LED indicator, supports custom key label

Power consumption:300mA at 24VDC, power supplied by backend panel controller

Installation:Cabinet front‑panel cut‑out mounting, horizontal installation only

Dimension:350mm220mm38.6mm

Weight:2.20kg

Degree of protection:Front IP65 aluminum panel, rear IP20

Certification:CE, UL, EAC

Working temperature:0℃ ~ +50℃

Storage temperature:‑20℃ ~ +60℃

Relative humidity:20‑85% non‑condensing during operation

Built‑in function:Graphic and character‑based data visualization, multi‑key input acquisition, alarm text display, receives display commands from 4C‑series backend controller, no independent control logic

Product Brief

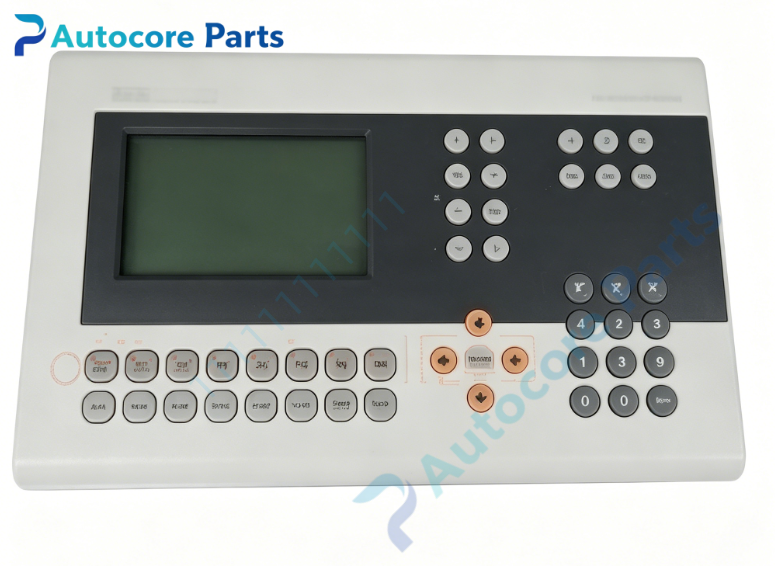

4D1165.00‑490 is B&R EOL discontinued horizontal‑format Panelware graphic display‑keypad unit. It cannot run standalone and must be matched with 4C‑series Panelware backend controller to build complete HMI solution for System2005 PCC system.

The unit supports dual display modes: 128×240 pixel graphic mode and 16×40 character text mode. CFL fluorescent backlight delivers stable brightness for cabinet operation environment. 47‑key horizontal keypad includes 30 LED‑backlit keys, convenient for operators to modify parameters and view equipment alarm information.

Front‑side IP65 aluminum housing provides dust‑proof and splash‑proof capability for cabinet‑mount installation. All display logic and keypad processing are handled by backend panel controller.

This is legacy EOL spare part, widely used for packaging, textile and plastic machinery maintenance. Please confirm matching 4C‑series controller model and cabinet cut‑out dimension before purchase. Strict ESD anti‑static protection shall be followed during installation.
