B&R 4E0011.01‑090 Panelware Keypad Module

Technical Specifications

Model:4E0011.01‑090

Brand:B&R

Product Type:Panelware Function Keypad Module

Applicable System:B&R Panelware HMI system, cooperates with 4C‑series panel controller for System2005 PCC, packaging, textile and plastic machinery

Key quantity:16 short‑stroke function keys

Key indicator:16 integrated yellow LED indicators, 3 mA per LED

Label support:User‑insertable membrane key labels for function customization

Connection:Special internal dedicated connecting cable, no standard field bus connector

Power supply:Power supplied by matched 4C‑series panel controller, 24VDC

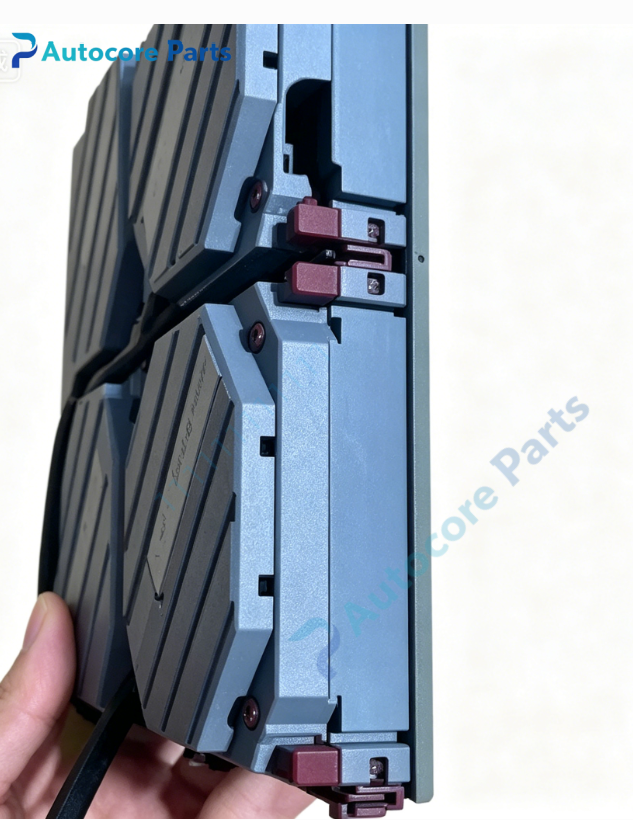

Installation:Cabinet front‑panel cut‑out mounting

Degree of protection:Front IP65, rear IP20

Weight:0.45kg

Certification:CE, cULus

Working temperature:0℃ ~ +50℃

Storage temperature:‑20℃ ~ +60℃

Environmental resistance:Vibration and shock compliant with IEC60068‑2‑6 / IEC60068‑2‑27 standards

Built‑in function:Local function key input acquisition, LED status indication, transmits key trigger signal to backend panel controller via dedicated cable, expands multi‑point manual operation for Panelware HMI system

Product Brief

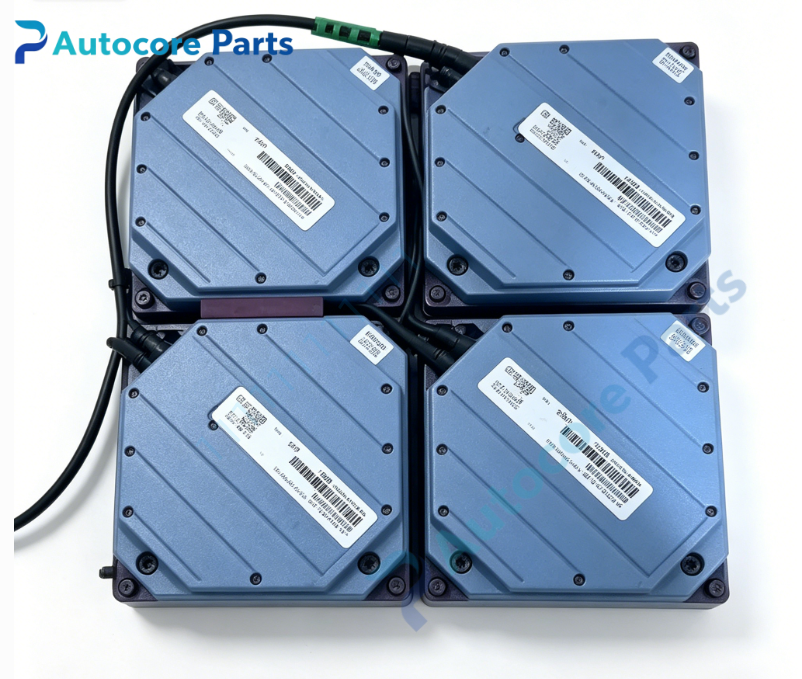

4E0011.01‑090 is B&R EOL discontinued Panelware series external function keypad module. It cannot work independently and must be connected to 4C‑series Panelware backend controller with special dedicated cable.

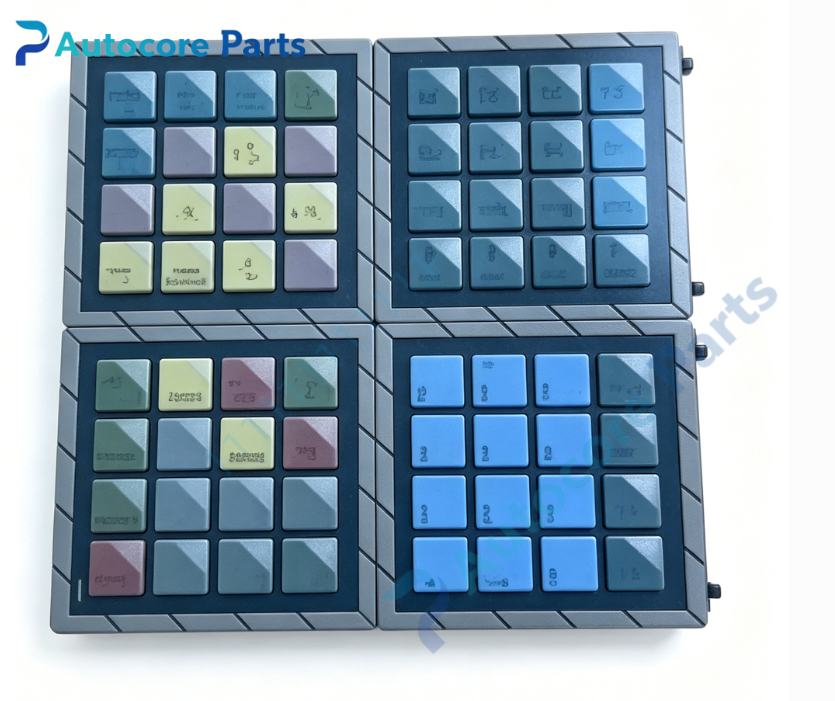

It is equipped with 16 short‑stroke mechanical keys with tactile feedback, each key corresponds to one yellow status LED. User‑replaceable membrane labels allow operators to define key‑function texts according to machine requirements. Front‑side IP65 protection grade adapts to industrial cabinet‑mount environment.

All key‑signal processing is completed on backend panel controller. This keypad widely expands manual operation points for packaging, textile and plastic forming equipment.

This is legacy EOL spare part for old‑generation equipment maintenance and renovation. Please confirm 4C‑series controller compatibility and dedicated cable availability before purchase. Strict ESD anti‑static protection shall be followed during installation.
