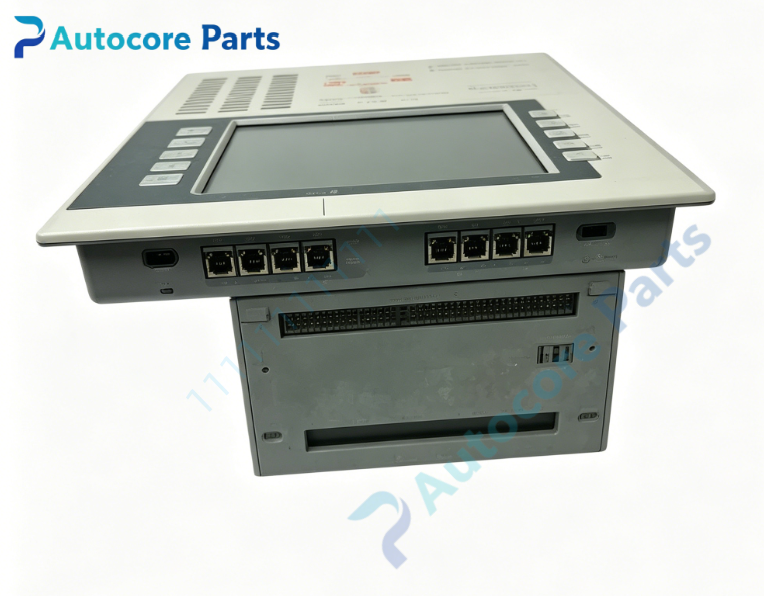

B&R 4P3040.00‑490 PP41 Power Panel

Technical Specifications

Model:4P3040.00‑490

Brand:B&R

Product Type:PP41 Power Panel Integrated HMI‑PLC Controller

Applicable System:B&R System2003 automation platform, packaging, textile and food‑processing machinery

Display:5.7‑inch QVGA monochrome LCD, graphic display capability, 320×240 pixels

Key array:8 soft keys,32 function keys with status feedback, supports custom key‑label insertion

Memory:700KB SRAM,1.4MB FlashPROM non‑volatile program memory, built‑in non‑volatile real‑time clock

Expansion slot:1×PCMCIA slot,6 screw‑in adapter‑module slots for function expansion

On‑board I/O:10×24VDC digital inputs,8×24VDC digital outputs,0.4A per output channel; TB712 terminal blocks are ordered separately

Communication interfaces:1×RS232 DSUB‑9 connector,1×galvanic isolated CAN‑bus DSUB‑9 connector, network‑capable, baud rate up to 500k‑bps

Power supply:18‑30VDC DC input

Installation:Cabinet front‑panel cut‑out mounting

Dimension:205mm220mm110.4mm

Weight:1.95kg

Degree of protection:Front‑side IP65, rear‑side IP20

Certification:CE, cULus industrial control equipment certification

Working temperature:0℃ ~ +50℃

Storage temperature:‑20℃ ~ +60℃

Relative humidity:10‑90% non‑condensing during operation

Built‑in function:Local PLC program execution, graphic‑based process visualization, parameter modification, alarm message output, onboard digital signal acquisition and output control, cyclic CAN‑bus data exchange with System2003 devices, supports PCMCIA memory card for project backup and data logging, expandable via screw‑in adapter modules.

Product Brief

4P3040.00‑490 is B&R EOL discontinued PP41 series all‑in‑one Power Panel for System2003 platform. This unit integrates PLC controller and graphic HMI terminal in one cabinet‑mount device, capable of running automation logic independently without external CPU unit.

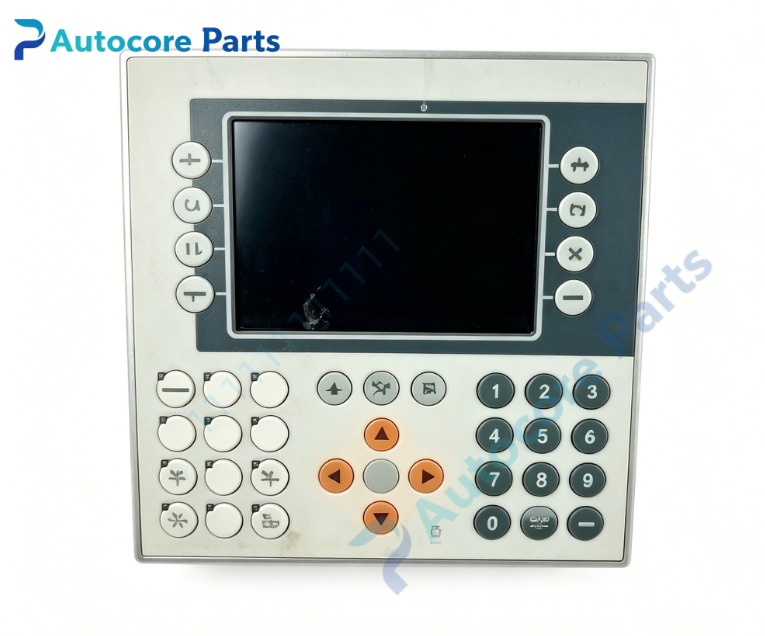

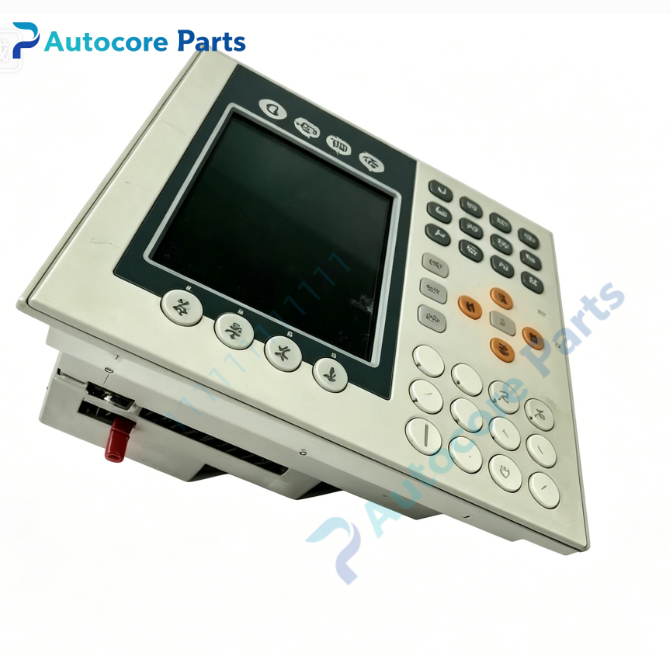

5.7‑inch QVGA monochrome graphic LCD delivers rich visual display for equipment process values and alarm texts. Combined soft‑key and function‑key array realizes complete local machine operation. On‑board digital I/O handles sensor and actuator signals directly. Galvanic isolated CAN‑bus port suppresses industrial ground‑loop interference for stable field‑bus communication.

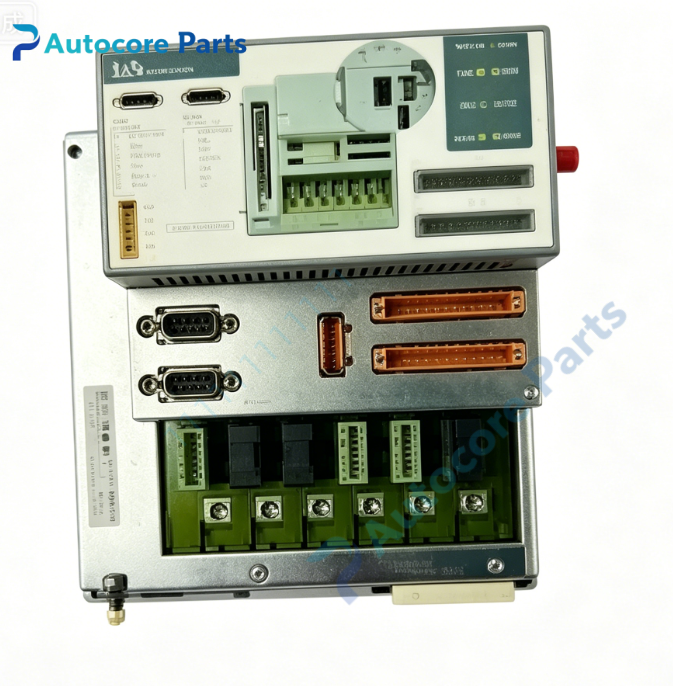

PCMCIA slot supports program backup and data recording, six internal screw‑in slots offer flexible function expansion. Front‑side IP65 rating adapts to standard industrial cabinet‑mount environment.

This is legacy EOL spare part for packaging, textile and food‑processing equipment maintenance and renovation. Please confirm System2003 project compatibility, TB712 terminal block availability and panel cut‑out dimension before purchase. Strict ESD anti‑static protection shall be followed during installation.
