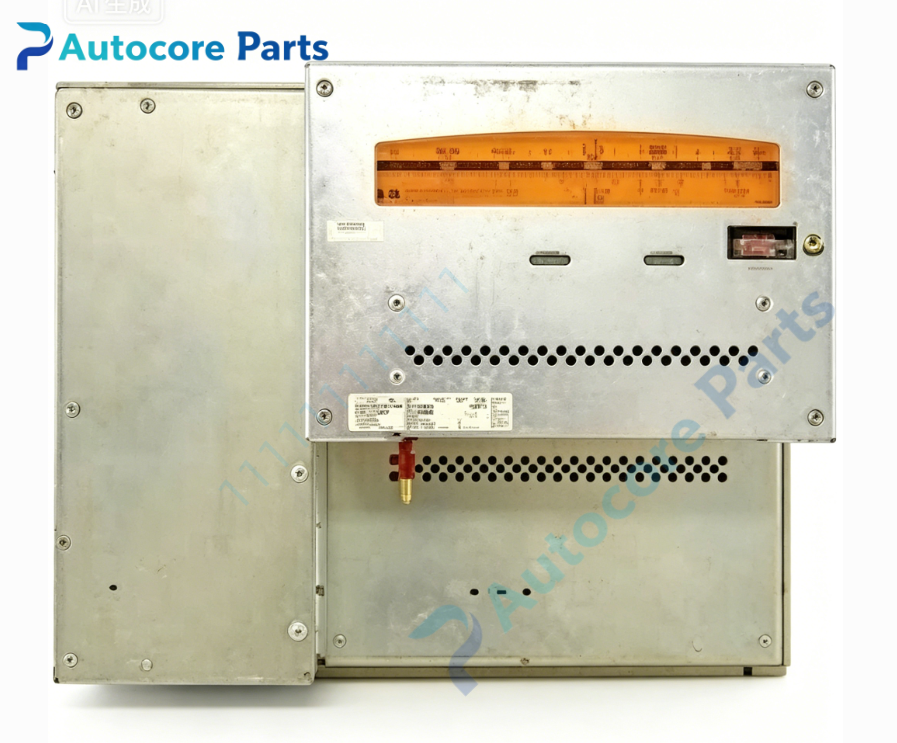

B&R 4PP220.1043‑K08 PP220 Power Panel

Technical Specifications

Model:4PP220.1043‑K08

Brand:B&R

Product Type:PP220 Power Panel Custom Membrane Variant Integrated HMI‑PLC Controller

Applicable System:B&R System2005 automation platform, packaging, textile and printing machinery

Display:10.4‑inch color TFT‑LCD,640×480 VGA resolution,256 colors,350 cd/m² typical brightness,CCFL backlight, integrated analog resistive touch screen

Key array:Custom membrane function‑key layout, supports user‑defined key‑label strips

Processor:Geode SC2200 266 MHz embedded x86 compatible CPU,MMX instruction set,hardware watchdog integrated,passive heat‑sink cooling

Memory:64 MB SDRAM,256 KB lithium‑battery‑backed SRAM,external replaceable lithium backup battery for RTC and SRAM,typical service life approx 4 years

Expansion resource:1×aPCI internal expansion slot for optional communication interface modules,1×CompactFlash Type‑I slot for project backup and data logging

Communication interfaces:1×10/100Mbps Ethernet,1×RS232 DSUB‑9 connector,2×USB 1.1 host ports,expands PROFIBUS‑DP / CAN‑bus / RS485 via aPCI add‑on board

Power supply:18‑30VDC DC input,nominal 24VDC; 0TB103 screw‑clamp or 0TB103.91 cage‑clamp terminal block must be ordered separately

Installation:Cabinet front‑panel cut‑out mounting

Dimension:323mm260mm86mm

Weight:3.90kg

Degree of protection:Front‑side IP65, rear‑side IP20

Certification:CE, cULus industrial control equipment certification

Working temperature:0℃ ~ +50℃

Storage temperature:‑20℃ ~ +70℃

Relative humidity:5‑95% non‑condensing

Built‑in function:Independent local PLC program execution,large‑screen touch‑operated graphic visualization,custom membrane keys for special machine operation,on‑site recipe and parameter modification,fault‑alarm message output,aPCI slot supports multi‑field‑bus expansion modules,CompactFlash‑card supported project backup and process‑data logging,Ethernet and serial interfaces realize data exchange with upper‑level host system and field peripheral devices.

Product Brief

4PP220.1043‑K08 is B&R EOL discontinued PP220 series custom‑variant all‑in‑one Power Panel for System2005 automation platform. This unit integrates PLC controller and resistive touch HMI terminal into single metal‑cased cabinet‑mount hardware, equipped with factory custom membrane keypad for special‑purpose machinery, runs complete machine automation logic without external host CPU unit.

10.4‑inch VGA high‑brightness color TFT‑LCD clearly displays complex process values,production recipes and equipment fault alarms. Combined resistive touch screen and custom membrane keys realize flexible local manual operation. Geode SC2200 266MHz processor delivers stable real‑time control performance for medium‑complex automation tasks.

Built‑in aPCI expansion slot allows installing optional communication boards to expand PROFIBUS‑DP,CAN‑bus or RS485 field‑bus interfaces. CompactFlash Type‑I slot supports project backup and process‑data recording. Front‑side IP65 aluminum housing meets dust‑proof and splash‑proof requirements for industrial cabinet‑mount installation.

This is legacy EOL spare part widely used for old‑generation packaging,textile and printing equipment maintenance and renovation. Please confirm System2005 project compatibility,custom keypad layout matching and 0TB103‑series terminal‑block availability before purchase. Strict ESD anti‑static protection shall be followed during installation.
