B&R 4PP220.1043‑75 PP220 Power Panel

Technical Specifications

Model:4PP220.1043‑75

Brand:B&R

Product Type:PP220 Power Panel Touch Integrated HMI‑PLC Controller

Applicable System:B&R System2005 automation platform, packaging, textile and printing machinery

Display:10.4‑inch color TFT‑LCD,640×480 VGA resolution,256 colors,350 cd/m² typical brightness,CCFL backlight,55000h half‑brightness lifespan, integrated analog resistive touch screen

Processor:Geode SC2200 266 MHz embedded x86 compatible CPU,MMX instruction set,hardware watchdog integrated,passive heat‑sink cooling

Memory:64 MB SDRAM,256 KB lithium‑battery‑backed SRAM,external replaceable lithium backup battery for RTC and SRAM,typical service life approx 4 years

Expansion resource:1×aPCI internal expansion slot for optional communication interface modules,1×CompactFlash Type‑I slot for project backup and data logging

Communication interfaces:1×10/100Mbps Ethernet,1×RS232 DSUB‑9 connector,2×USB 1.1 host ports,expands PROFIBUS‑DP / CAN‑bus / RS485 via aPCI add‑on board

Power supply:18‑30VDC DC input,nominal 24VDC,10 ms power‑fail buffer; 0TB103 screw‑clamp or 0TB103.91 cage‑clamp terminal block must be ordered separately

Installation:Cabinet front‑panel cut‑out mounting

Dimension:323mm260mm86mm

Weight:3.90kg

Degree of protection:Front‑side IP65, rear‑side IP20

Certification:CE, cULus industrial control equipment certification

Working temperature:0℃ ~ +50℃

Storage temperature:‑20℃ ~ +70℃

Relative humidity:5‑95% non‑condensing

Built‑in function:Independent local PLC program execution,large‑screen touch‑operated graphic visualization,on‑site recipe and parameter modification,fault‑alarm message output,aPCI slot supports multi‑field‑bus expansion modules,CompactFlash‑card supported project backup and process‑data logging,Ethernet and serial interfaces realize data exchange with upper‑level host system and field peripheral devices.

Product Brief

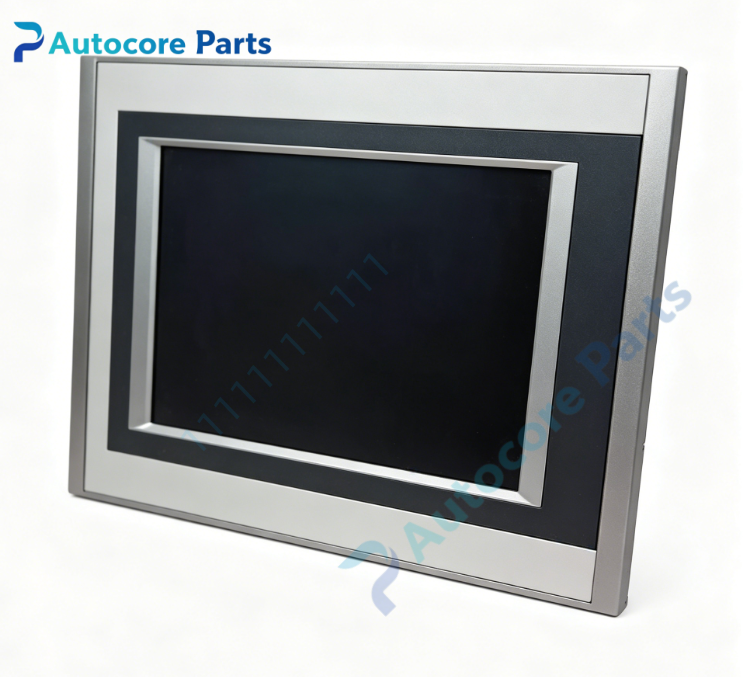

4PP220.1043‑75 is B&R EOL discontinued PP220 series large‑size all‑in‑one Power Panel for System2005 automation platform. This hardware integrates PLC controller and resistive touch HMI terminal into single metal‑cased cabinet‑mount unit, capable of running complete machine automation logic without external host CPU unit.

10.4‑inch VGA high‑brightness color TFT‑LCD delivers clear visual presentation for complex process values,production recipes and equipment fault alarms. Analog resistive touch screen supports stable operation under industrial workshop environment. Geode SC2200 266MHz processor provides reliable real‑time control performance for medium‑complexity automation tasks.

Built‑in aPCI expansion slot allows users to install optional communication boards to expand PROFIBUS‑DP,CAN‑bus or RS485 field‑bus interfaces according to on‑site equipment requirements. CompactFlash Type‑I slot offers convenient project backup and process‑data recording function. Front‑side IP65 aluminum housing satisfies dust‑proof and splash‑proof requirements for cabinet‑mount installation scenarios.

This is legacy EOL spare part widely deployed on old‑generation packaging,textile and printing equipment. Please confirm System2005 project compatibility,aPCI module matching and 0TB103‑series power terminal‑block availability before purchase. Strict ESD anti‑static protection shall be followed during installation.
