B&R 4PP220.0571‑65 PP220 Power Panel

Technical Specifications

Model:4PP220.0571‑65

Brand:B&R

Product Type:PP220 Power Panel Touch Integrated HMI‑PLC Controller

Applicable System:B&R System2005 automation platform, packaging, textile and printing machinery

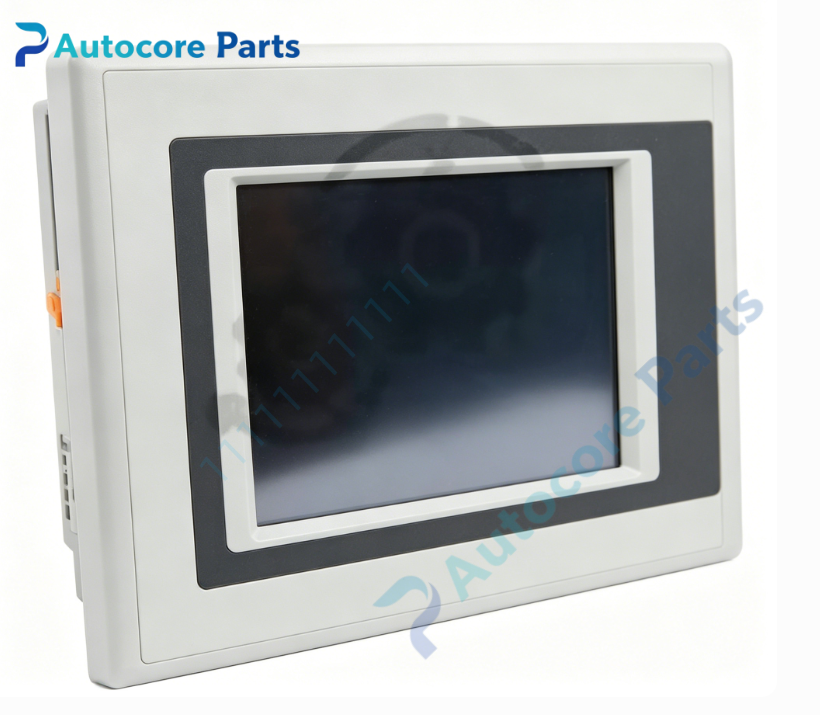

Display:5.7‑inch color LCD,320×240 QVGA resolution, integrated analog resistive touch screen

Memory:64 MB SDRAM,256 KB battery‑backed SRAM, lithium‑battery‑backed real‑time clock, external replaceable backup battery

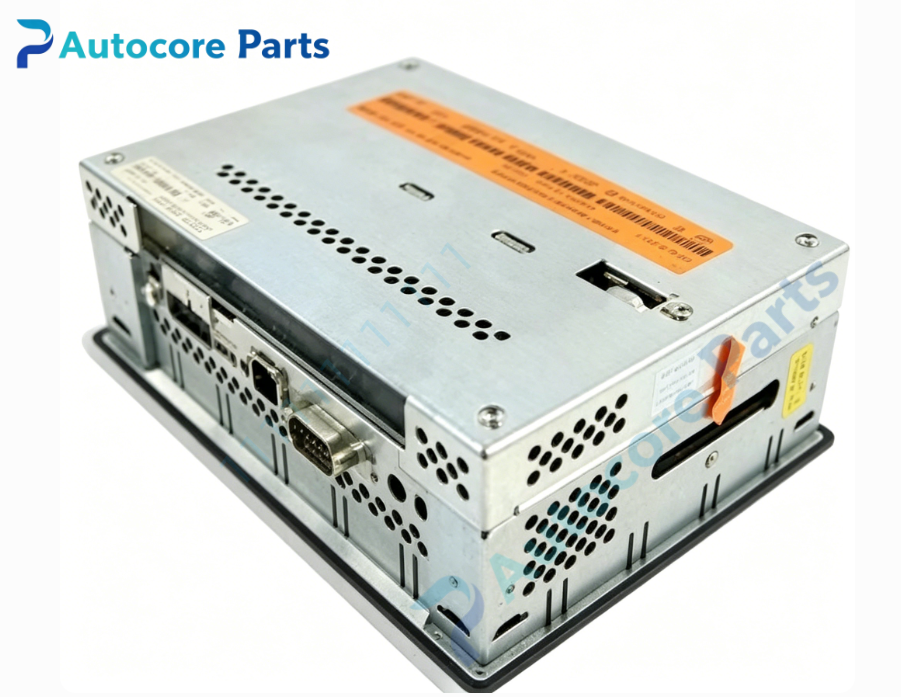

Expansion resource:1×aPCI internal expansion slot for optional communication interface modules,1×CompactFlash Type‑I slot for project backup and data logging

Communication interfaces:1×10/100Mbps Ethernet,1×RS232 DSUB‑9 connector,2×USB 1.1 host ports

Power supply:18‑30VDC DC input, nominal 24VDC; 0TB103 screw‑clamp or 0TB103.91 cage‑clamp terminal block must be ordered separately

Installation:Cabinet front‑panel cut‑out mounting

Dimension:212mm156mm76mm

Weight:1.70kg

Degree of protection:Front‑side IP65, rear‑side IP20

Certification:CE, UL industrial control equipment certification

Working temperature:0℃ ~ +50℃

Storage temperature:‑20℃ ~ +70℃

Relative humidity:5‑95% non‑condensing

Built‑in function:Independent local PLC program execution, touch‑operated graphic visualization, on‑site recipe and parameter modification, fault‑alarm message output, aPCI slot supports optional field‑bus expansion modules, CompactFlash‑card supported project backup and process‑data logging, Ethernet and serial interfaces realize data exchange with upper host and field peripheral devices.

Product Brief

4PP220.0571‑65 is B&R EOL discontinued PP220 series all‑in‑one Power Panel for System2005 automation platform. This unit integrates PLC control system and resistive touch HMI terminal into single metal‑cased cabinet‑mount hardware, capable of running complete machine automation logic without external host CPU unit。

5.7‑inch QVGA color LCD clearly displays process values, production recipes and equipment fault information. Resistive touch screen supports convenient on‑site manual operation. Built‑in 1×aPCI expansion slot allows users to install optional communication boards to expand PROFIBUS‑DP, CAN‑bus or RS485 field‑bus interfaces according to machine requirements. CompactFlash Type‑I slot provides reliable project backup and process‑data recording function.

Rich communication resources include Fast‑Ethernet, RS232 and dual USB ports, facilitating program download, peripheral device connection and upper‑level system data interaction. Front‑side IP65 aluminum housing satisfies dust‑proof and splash‑proof requirements for industrial workshop cabinet‑mount installation environment.

This is legacy EOL spare part widely deployed on old‑generation packaging, textile and printing equipment. Please confirm System2005 project compatibility, aPCI module matching and 0TB103‑series power terminal‑block availability before purchase. Strict ESD anti‑static protection shall be followed during installation.
