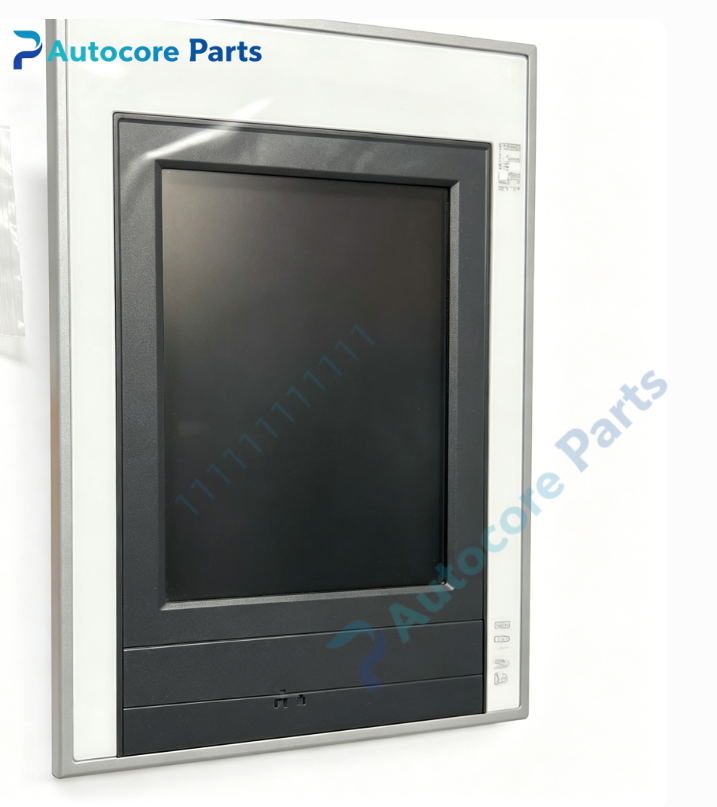

B&R 4PP065.0571‑P74 PP65 Power Panel

Technical Specifications

Model:4PP065.0571‑P74

Brand:B&R

Product Type:PP65 Power Panel Integrated HMI‑PLC Controller

Applicable System:B&R System2005 automation platform, multi‑axis motion control, packaging, textile and printing machinery

Display:5.7‑inch color TFT‑LCD,320×240 QVGA resolution,262144 colors,500 cd/m² typical brightness,50000h half‑brightness lifespan, integrated analog resistive touch screen

Key array:10 membrane function keys, supports user‑insertable key‑label strips for function definition

Processor:Geode LX800 500MHz x86 compatible embedded processor, integrated hardware watchdog

Memory:128MB DRAM,232KB battery‑backed SRAM,CompactFlash Type‑I expansion slot for project storage and data logging; application memory needs to be ordered separately

Real‑time clock:External replaceable lithium backup battery, typical service life approx 4 years

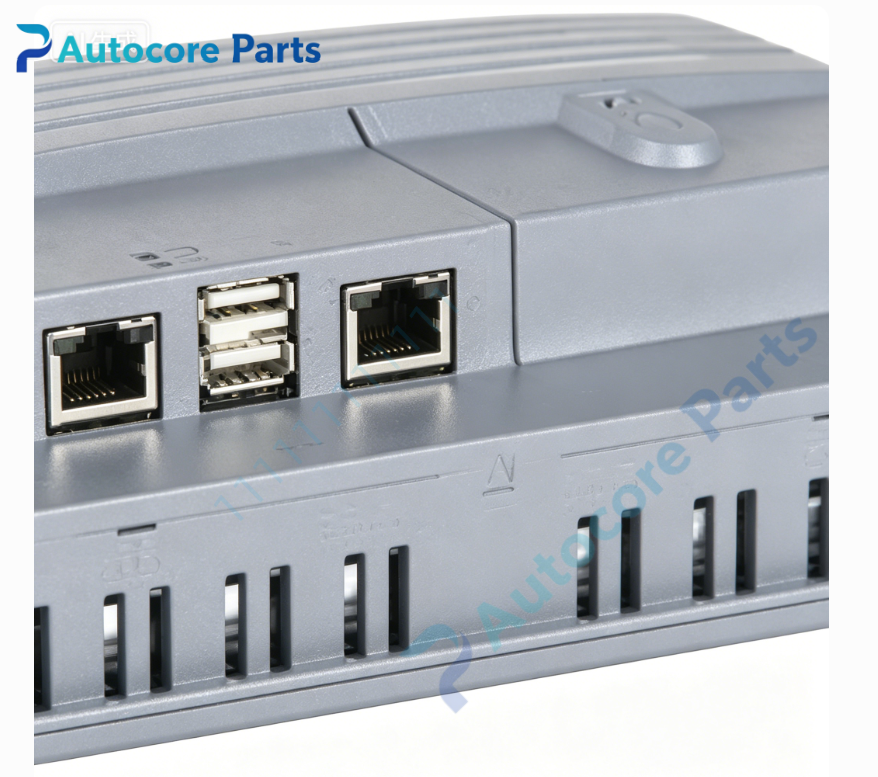

Communication interfaces:1×10/100Mbps Ethernet,1×POWERLINK real‑time industrial Ethernet port,2×USB 1.1 host ports, supports high‑speed motion bus connection to drives and remote I/O modules

Power supply:18‑30VDC DC input, nominal 24VDC, typical power consumption 15W; 0TB103 power terminal block must be ordered separately

Installation:Cabinet front‑panel cut‑out mounting

Dimension:203mm145mm56.5mm

Weight:0.75kg

Degree of protection:Front‑side IP65, rear‑side IP20

Certification:CE, UL industrial control equipment certification

Working temperature:0℃ ~ +50℃

Storage temperature:‑20℃ ~ +70℃

Relative humidity:5‑95% non‑condensing

Built‑in function:Independent local PLC program execution, high‑performance multi‑axis motion control, touch‑based graphic visualization, on‑site recipe and parameter modification, fault alarm message output, real‑time POWERLINK field‑bus communication with servo drives and distributed I/O devices, CompactFlash‑card supported project backup and process‑data logging, realizes complete machine automation without external host CPU unit.

Product Brief

4PP065.0571‑P74 is B&R EOL discontinued PP65 series all‑in‑one Power Panel for System2005 automation platform. This unit combines PLC controller, motion control and HMI visualization into single cabinet‑mount hardware, especially suitable for multi‑axis motion‑demanding machinery equipment.

5.7‑inch high‑brightness color TFT display delivers clear visual presentation for process data, production recipes and fault alarms. Resistive touch screen plus 10‑channel membrane function keys realize flexible local manual operation. Geode LX800 500MHz processor provides powerful computing capacity for complex motion logic and automation tasks.

Native POWERLINK real‑time industrial Ethernet interface supports high‑speed synchronization with servo drives and remote I/O stations. Ethernet and USB interfaces facilitate program download, data exchange and peripheral device connection. CompactFlash slot offers convenient project backup and process‑data recording function. Front‑side IP65 protection rating adapts to dust‑proof and splash‑proof requirements of industrial workshop cabinet‑mount environment.

This is legacy EOL spare part widely deployed on old‑generation multi‑axis packaging, textile and printing equipment. Please confirm System2005 project compatibility, 0TB103 terminal‑block availability and panel cut‑out dimension before purchase. Strict ESD anti‑static protection shall be followed during installation.
