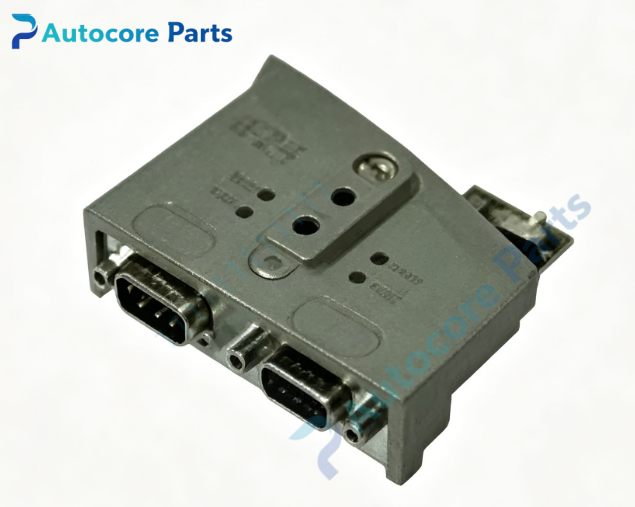

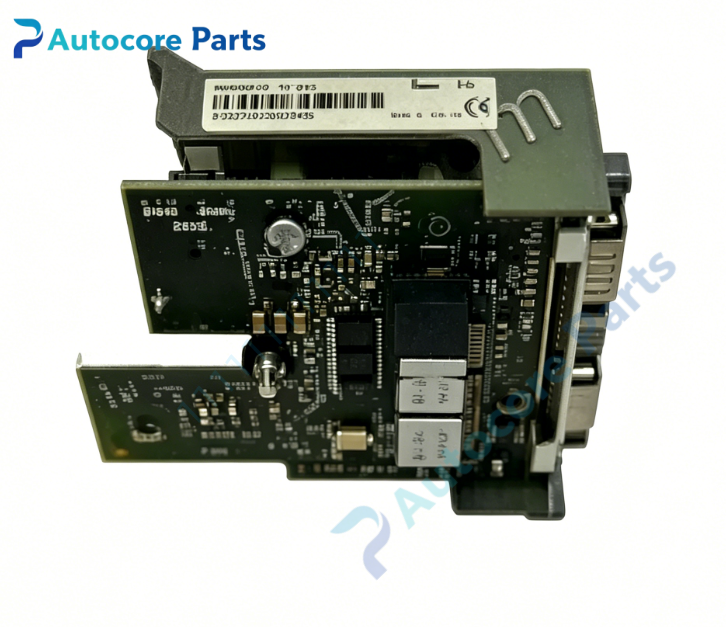

B&R 4PP045.IF24‑1 PP45 Interface Module

Technical Specifications

Model:4PP045.IF24‑1

Brand:B&R

Product Type:PP45 Internal Plug‑In Communication Expansion Interface Module

Applicable System:B&R 4PP045‑series Power Panel hardware, System2003 automation platform, packaging, textile and printing machinery

Communication Interfaces:

‑ 1×galvanic isolated PROFIBUS‑DP slave, max baud rate 12 Mbit/s, dedicated DSUB‑9 connector, node‑address hex switches onboard

‑ 1×RS232, max baud rate 115.2 kbit/s, shared DSUB‑9 connector together with RS422/RS485

‑ 1×galvanic isolated RS422/RS485, max baud rate 115.2 kbit/s, supports multi‑drop network topology

Indicator:Onboard LED status indicators for each communication channel

Installation:Internal plug‑in installation inside PP45 power panel housing, cannot work standalone, must be fitted into 4PP045‑series hardware internal IF‑slot

Dimension:70mm70mm30mm

Weight:0.20kg

Degree of protection:Internal module IP20

Working temperature:0℃ ~ +50℃

Storage temperature:‑20℃ ~ +70℃

Built‑in function:Expands PROFIBUS‑DP slave, RS232 and RS422/RS485 field‑bus ports for PP45 all‑in‑one HMI‑PLC unit, realizes data exchange with third‑party PLC, drives and serial‑protocol field devices, enriches field‑bus networking capability for System2003 control system.

Product Brief

4PP045.IF24‑1 is B&R EOL discontinued internal plug‑in communication expansion module for PP45 Power Panel series. It cannot operate independently and must be inserted into the internal IF‑expansion slot of 4PP045‑series hardware.

This interface board provides galvanic‑isolated PROFIBUS‑DP slave interface for connecting PROFIBUS field‑bus peripherals. Combined RS232 and isolated RS422/RS485 serial channels support connection to serial sensors, printers and third‑party automation devices. On‑board hex switches set PROFIBUS station address, LED indicators display real‑time communication status.

It greatly expands field‑bus connection capacity for legacy System2003 packaging, textile and printing machinery equipped with PP45 integrated controllers.

This is legacy EOL spare part for old‑equipment maintenance and renovation. Please confirm 4PP045‑series host hardware compatibility before purchase. Strict ESD anti‑static protection shall be followed during installation.
