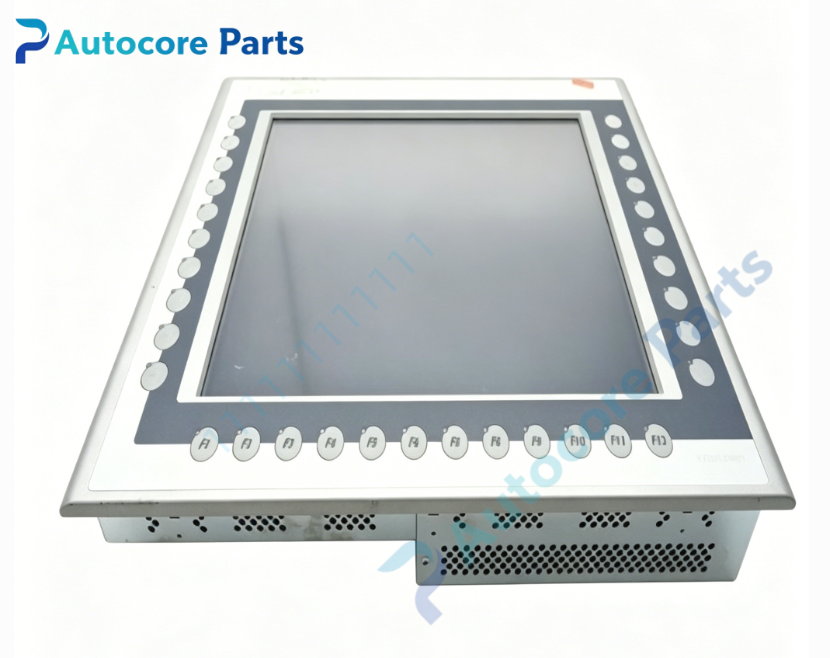

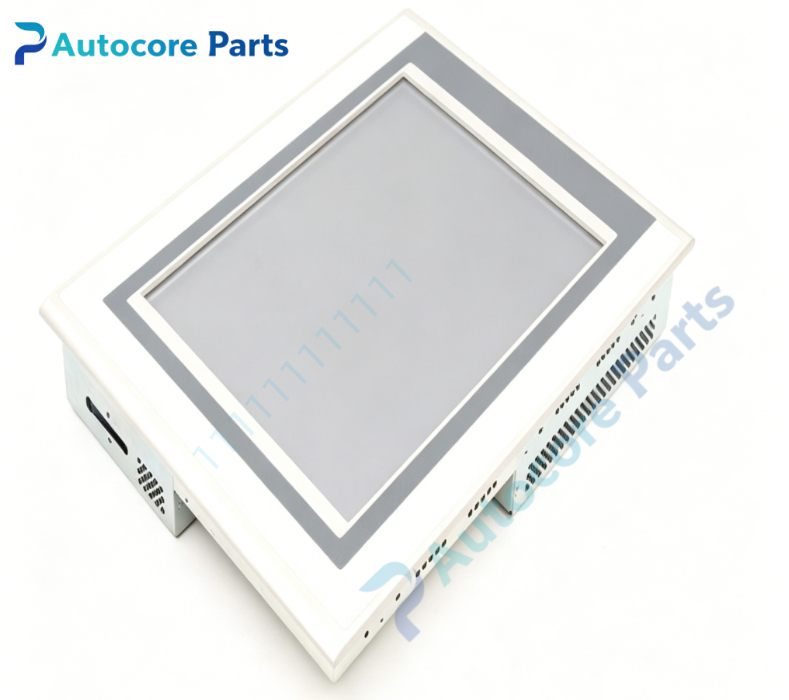

B&R 4PP045.0571‑K43 PP45 Power Panel

Technical Specifications

Model:4PP045.0571‑K43

Brand:B&R

Product Type:PP45 Power Panel Custom Membrane Variant Integrated HMI‑PLC Controller

Applicable System:B&R System2003 automation platform, packaging, textile and printing machinery

Display:5.7‑inch color FSTN LCD,320×240 QVGA resolution,140 cd/m² typical backlight brightness, integrated resistive touch screen

Processor:ELAN SC520 100 MHz embedded x86 compatible CPU, internal hardware watchdog

Memory:64 MB DRAM,48 KB lithium‑battery‑backed SRAM,CompactFlash Type‑I expansion slot for project backup and data logging

Real‑time clock:External replaceable lithium backup battery, typical service life 2.5 years

Expansion slot:1×PP45 Compact IF‑slot for optional field‑bus interface module expansion

Communication interfaces:1×10/100Mbps Ethernet,1×X2X Link,2×USB 1.1 host ports, supports optional add‑on interface board for CAN‑bus / PROFIBUS DP / RS485

Power supply:18‑30VDC DC input, nominal 24VDC,10 ms power‑fail buffer

Installation:Cabinet front‑panel cut‑out mounting

Dimension:203mm145mm55mm

Weight:0.70kg

Degree of protection:Front‑side IP65, rear‑side IP20

Certification:CE, UL industrial control equipment certification

Working temperature:0℃ ~ +50℃

Storage temperature:‑20℃ ~ +70℃

Relative humidity:10‑90% non‑condensing

Built‑in function:Independent local PLC program execution, touch‑operated graphic visualization, on‑site recipe and parameter modification, fault alarm message display, X2X link peripheral expansion, CompactFlash‑card supported program backup and process‑data logging, supports optional interface module for multi‑field‑bus connection, customized membrane keypad layout for special machine function requirements.

Product Brief

4PP045.0571‑K43 is B&R EOL discontinued PP45 series custom‑variant all‑in‑one Power Panel for System2003 automation platform. This hardware integrates embedded PLC controller and resistive touch HMI in single cabinet‑mount housing, can run complete machine automation logic without external host CPU.

This K43 variant adopts custom‑designed membrane keypad layout for special‑purpose machinery. 5.7‑inch QVGA color FSTN LCD clearly presents process values, production recipes and equipment fault alarms. Resistive touch screen plus custom membrane keys realize flexible local manual operation.

ELAN SC520 100MHz x86‑compatible CPU provides stable real‑time control performance. CompactFlash slot facilitates project backup and process‑data recording. The internal IF‑expansion slot allows users to install optional communication board to realize CAN‑bus, PROFIBUS‑DP or RS485 field‑bus connection. Front‑side IP65 metal housing satisfies dust‑proof and splash‑proof requirements for industrial workshop cabinet‑mount installation.

This is legacy EOL spare part for old‑generation packaging, textile and printing equipment maintenance and renovation. Please confirm System2003 project compatibility, custom membrane layout matching and CompactFlash card specification before purchase. Strict ESD anti‑static protection shall be followed during installation.
