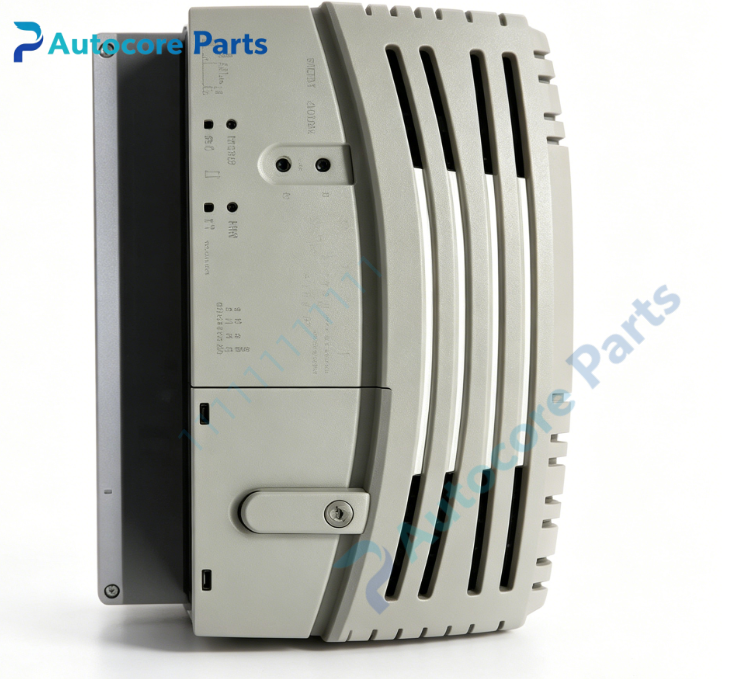

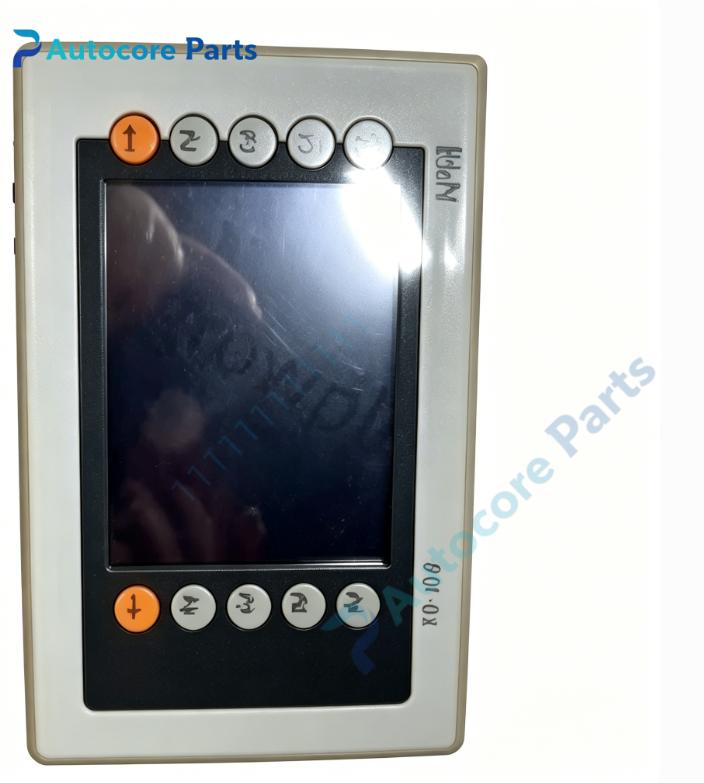

B&R 4PP045.0571‑062 PP45 Power Panel

Technical Specifications

Model:4PP045.0571‑062

Brand:B&R

Product Type:PP45 Power Panel Touch Integrated HMI‑PLC Controller

Applicable System:B&R System2003 automation platform, packaging, textile and printing machinery

Display:5.7‑inch FSTN LCD,320×240 QVGA resolution,140 cd/m² backlight brightness, integrated resistive touch screen

Processor:ELAN SC520 100 MHz embedded x86 compatible CPU, hardware watchdog integrated

Memory:64 MB DRAM,48 KB battery‑backed SRAM,CompactFlash Type‑I expansion slot for project storage and data logging

Real‑time clock:Lithium battery‑backed real‑time clock, battery accessible from outside, typical service life 2.5 years

Communication interfaces:1×10/100Mbps Ethernet,1×RS232 DSUB‑9,2×USB 1.1 host ports,1×galvanic isolated CAN‑bus interface, max baud rate 500k‑bps

Power supply:18‑30VDC DC input, 24VDC nominal voltage, power‑fail buffer 10 ms

Installation:Cabinet front‑panel cut‑out mounting

Dimension:203mm145mm55mm

Weight:0.70kg

Degree of protection:Front‑side IP65, rear‑side IP20

Certification:CE, UL, KC industrial control equipment certification

Working temperature:0℃ ~ +50℃

Storage temperature:‑20℃ ~ +70℃

Relative humidity:10‑90% non‑condensing

Built‑in function:Independent PLC program execution, touch‑operated graphic visualization, on‑site parameter modification, alarm message display, multi‑interface field‑bus networking, CompactFlash supported project backup and data recording, connects with System2003 expansion modules, realizes complete machine control without external CPU unit.

Product Brief

4PP045.0571‑062 is B&R EOL discontinued PP45 series all‑in‑one Power Panel for System2003 automation platform. This unit integrates embedded PLC controller and resistive touch HMI into single cabinet‑mount hardware, can run complete machine automation logic independently without external host CPU。

5.7‑inch QVGA FSTN graphic LCD delivers clear visualization for process values, production recipes and fault alarms. Resistive touch screen supports convenient on‑site operation. ELAN SC520 100MHz x86 processor provides reliable real‑time control performance. CompactFlash slot facilitates program backup and process‑data logging.

Rich communication resources include Ethernet, RS232, USB and galvanic isolated CAN‑bus, realizing connection to upper‑level host system and field‑bus peripheral devices. Front‑side IP65 metal housing adapts to dust‑proof and splash‑proof requirements of industrial workshop cabinet‑mount environment.

This is legacy EOL spare part, widely deployed on old‑generation packaging, textile and printing equipment. Please confirm System2003 project compatibility and CompactFlash card specification before purchase. Strict ESD anti‑static protection shall be followed during installation.
