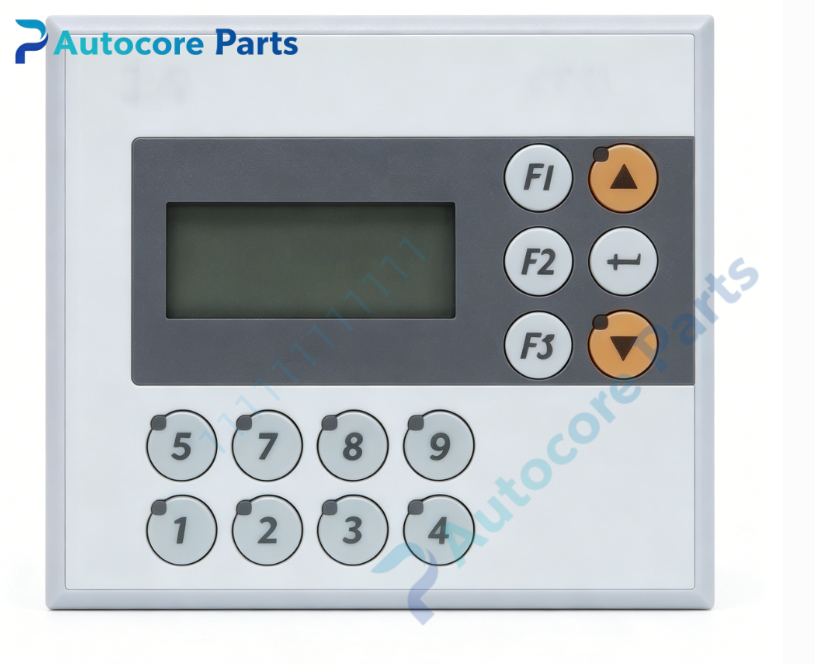

B&R 4PP015.0420‑01 PP15 Power Panel

Technical Specifications

Model:4PP015.0420‑01

Brand:B&R

Product Type:PP15 Power Panel Compact Integrated HMI‑PLC Controller

Applicable System:B&R System2003 automation platform, packaging, textile and small‑scale processing machinery

Display:4 lines ×20 characters monochrome LCD, LED backlight, character‑mode operation

Keypad:16 function keys, 10 keys with yellow LED indicator, supports custom legend strips

Memory:300KB SRAM,1024KB FlashPROM non‑volatile program memory, lithium‑battery‑backed real‑time clock

On‑board I/O:16×24VDC digital inputs sink/source type,16×24VDC digital outputs source type,0.5A per output channel; supports 2 event counters or 1 incremental encoder signal acquisition; TB718 and TB103 terminal blocks must be ordered separately

Communication interfaces:1×RS232 DSUB‑9 connector non‑isolated,1×galvanic isolated CAN‑bus DSUB‑9 connector, max baud rate 500k‑bps

Power supply:18‑30VDC DC input, max power consumption 6W

Installation:Cabinet front‑panel cut‑out mounting

Dimension:153mm120mm52mm

Weight:0.50kg

Degree of protection:Front‑side IP65, rear‑side IP20

Certification:CE, cULus industrial control equipment approval

Working temperature:0℃ ~ +50℃

Storage temperature:‑20℃ ~ +60℃

Relative humidity:10‑90% non‑condensing

Built‑in function:Local PLC program execution, character‑based process‑value and alarm‑text visualization, on‑site keypad parameter modification, onboard digital signal acquisition and output control, cyclic CAN‑bus field‑bus data communication, supports incremental encoder and counter signal processing for small machine automation logic.

Product Brief

4PP015.0420‑01 is B&R EOL discontinued compact PP15 series all‑in‑one Power Panel for System2003 platform. It integrates PLC control logic and HMI operation terminal within compact mechanical housing, capable of running independent machine automation program without external CPU unit.

4×20‑character backlit monochrome LCD clearly displays process set‑points, production data and fault alarm texts. 16‑key keypad with LED status feedback realizes convenient local manual operation. Built‑in 16‑channel digital input and 16‑channel digital output directly connect field sensors and actuators, and supports encoder and counter function for simple motion‑related signal processing.

Galvanic isolated CAN‑bus port suppresses industrial ground‑loop interference for stable field‑bus networking. RS232 serial port provides additional serial communication capacity. Front‑side IP65 aluminum front‑panel delivers dust‑proof and splash‑proof performance for cabinet‑mount installation scenarios.

This is legacy EOL spare part widely applied for old‑generation packaging and textile equipment maintenance and renovation. Please confirm System2003 project compatibility and required terminal‑block part numbers before purchase. Strict ESD anti‑static protection shall be followed during installation.
