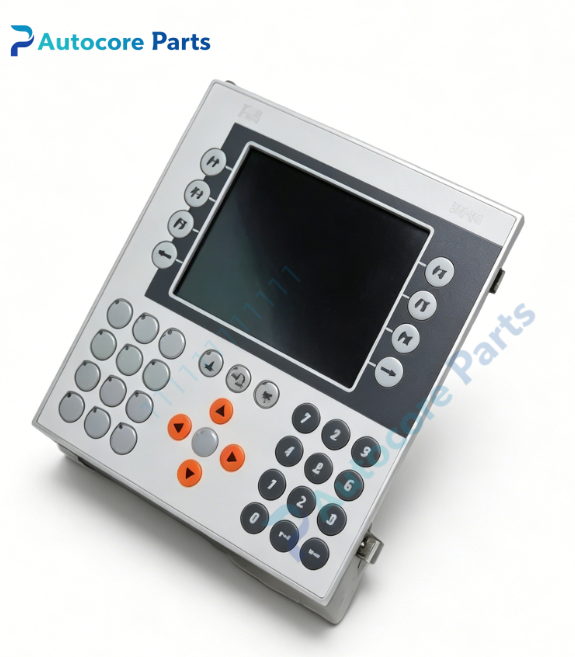

B&R 4P3040.01‑450 PP41 Power Panel

Technical Specifications

Model:4P3040.01‑450

Brand:B&R

Product Type:PP41 Power Panel Integrated HMI‑PLC Controller

Applicable System:B&R System2003 automation platform, packaging, textile and food‑processing machinery

Display:5.7‑inch QVGA monochrome LCD,320×240 pixels,LED backlight,150 cd/m² typical brightness

Key array:8 soft keys,32 function keys with status feedback, supports custom key‑label insertion

Memory:700KB SRAM,1.4MB FlashPROM non‑volatile program memory, lithium‑battery‑backed real‑time clock

Expansion resource:1×PCMCIA slot,6 internal screw‑in adapter‑module slots for function expansion

On‑board I/O:10×24VDC digital inputs,8×24VDC digital outputs,0.4A per output channel, TB712 terminal blocks must be ordered separately

Communication interfaces:1×RS232 DSUB‑9 connector,1×galvanic isolated CAN‑bus DSUB‑9 connector, max 500k‑bps baud rate

Power supply:18‑30VDC DC input

Installation:Cabinet front‑panel cut‑out mounting

Dimension:205mm220mm110.4mm

Weight:2.00kg

Degree of protection:Front‑side IP65, rear‑side IP20

Certification:CE, cULus industrial control certification

Working temperature:0℃ ~ +50℃

Storage temperature:‑20℃ ~ +60℃

Relative humidity:10‑90% non‑condensing

Built‑in function:Independent local PLC program execution, graphic process‑data visualization, equipment set‑point modification, alarm‑message output, onboard digital signal acquisition and output control, cyclic CAN‑bus field‑bus data exchange, PCMCIA‑card supported project backup and data logging, flexible function expansion via internal adapter modules.

Product Brief

4P3040.01‑450 is B&R EOL discontinued PP41 series all‑in‑one Power Panel for System2003 automation platform. This hardware integrates PLC controller and graphic HMI terminal into single cabinet‑mount unit, capable of running complete machine automation logic without external host CPU unit.

5.7‑inch QVGA monochrome graphic LCD clearly displays process values and alarm texts for workshop operation. Combined soft‑key and function‑key array facilitates on‑site parameter modification and equipment diagnosis. On‑board digital I/O directly connects field sensors and actuators. Galvanic isolated CAN‑bus port suppresses ground‑loop interference to guarantee stable field‑bus communication.

PCMCIA slot realizes project backup and process‑data logging, six internal screw‑in slots support diverse hardware expansion. Front‑side IP65 aluminum housing provides dust‑proof and splash‑proof performance for cabinet‑mount installation environment.

This is legacy EOL spare part widely used for old‑generation packaging, textile and food‑processing equipment maintenance and renovation. Please confirm System2003 project compatibility, TB712 terminal‑block availability and panel cut‑out dimension before purchase. Strict ESD anti‑static protection shall be followed during installation.
