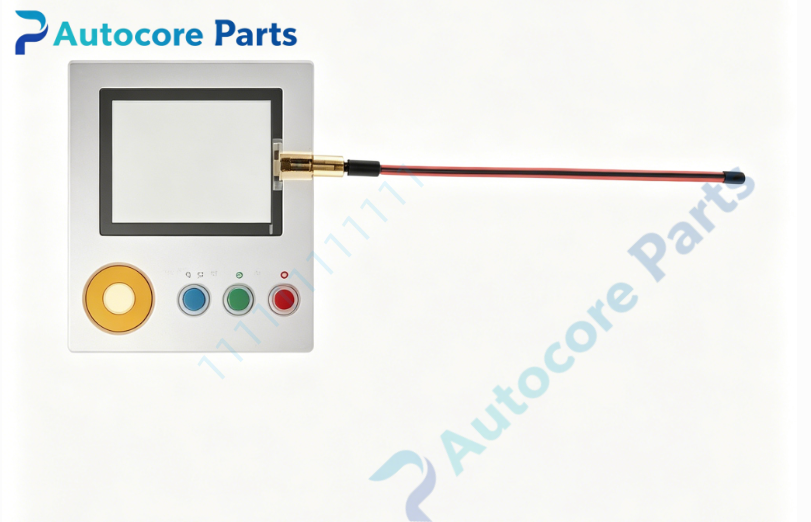

B&R 4PP320.0653‑K01 PP320 Power Panel

Technical Specifications

Model:4PP320.0653‑K01

Brand:B&R

Product Type:PP320 Power Panel Custom Membrane Variant Integrated HMI‑PLC Controller

Applicable System:B&R System2005 automation platform, packaging, textile and special‑purpose machinery

Display:6.5‑inch color TFT‑LCD, integrated analog resistive touch screen, CCFL backlight

Key array:Factory custom‑designed membrane keypad layout for dedicated machine operation, supports replaceable key‑label strips

Processor:Geode LX800 500 MHz embedded x86 compatible CPU, integrated hardware watchdog

Memory:128 MB DRAM,512 KB lithium‑battery‑backed SRAM, external replaceable lithium backup battery for RTC and SRAM data retention

Expansion resource:1×CompactFlash Type‑I slot for project backup and process‑data logging, no aPCI expansion slot

Communication interfaces:1×10/100Mbps Ethernet,1×RS232 DSUB‑9 connector,2×USB 1.1 host ports

Power supply:18‑30VDC DC input, nominal 24VDC; 0TB103‑series terminal block must be ordered separately

Installation:Cabinet front‑panel cut‑out mounting

Dimension:242mm185mm72mm

Weight:2.10kg

Degree of protection:Front‑side IP65, rear‑side IP20

Certification:CE, cULus industrial control equipment certification

Working temperature:0℃ ~ +50℃

Storage temperature:‑20℃ ~ +70℃

Relative humidity:5‑95% non‑condensing

Built‑in function:Independent local PLC program execution, combined touch‑screen and custom membrane‑key operation mode, graphic process‑data visualization, on‑site recipe and parameter modification, fault‑alarm message output, CompactFlash‑card supported project backup and data logging, Ethernet and serial interfaces realize data exchange with upper‑level host and field peripheral devices.

Product Brief

4PP320.0653‑K01 is B&R EOL discontinued PP320 series custom‑variant all‑in‑one Power Panel for System2005 automation platform. This unit integrates embedded PLC controller, resistive touch HMI and factory‑custom membrane keypad into compact metal cabinet‑mount housing, capable of running complete machine automation logic without external host CPU unit.

6.5‑inch color TFT‑LCD delivers clear display for process values, production recipes and equipment fault alarms. Resistive touch screen cooperates with custom membrane keys to realize dedicated local manual operation. Geode LX800 500MHz processor provides stable real‑time control performance for medium‑complex automation tasks.

CompactFlash Type‑I slot supports reliable program backup and process‑data recording. Rich communication resources including Fast‑Ethernet, RS232 and dual‑USB facilitate program download and peripheral device connection. Front‑side IP65 aluminum housing satisfies dust‑proof and splash‑proof requirements for industrial workshop cabinet‑mount installation scenarios.

This is legacy EOL spare part widely applied for old‑generation special‑purpose packaging and textile equipment maintenance and renovation. Please confirm System2005 project compatibility, custom keypad layout matching and 0TB103‑series terminal‑block availability before purchase. Strict ESD anti‑static protection shall be followed during installation.
