B&R 4PP320.0571‑35 PP320 Power Panel

Technical Specifications

Model:4PP320.0571‑35

Brand:B&R

Product Type:PP320 Power Panel Touch Integrated HMI‑PLC Controller

Applicable System:B&R System2005 automation platform, packaging, textile and printing machinery

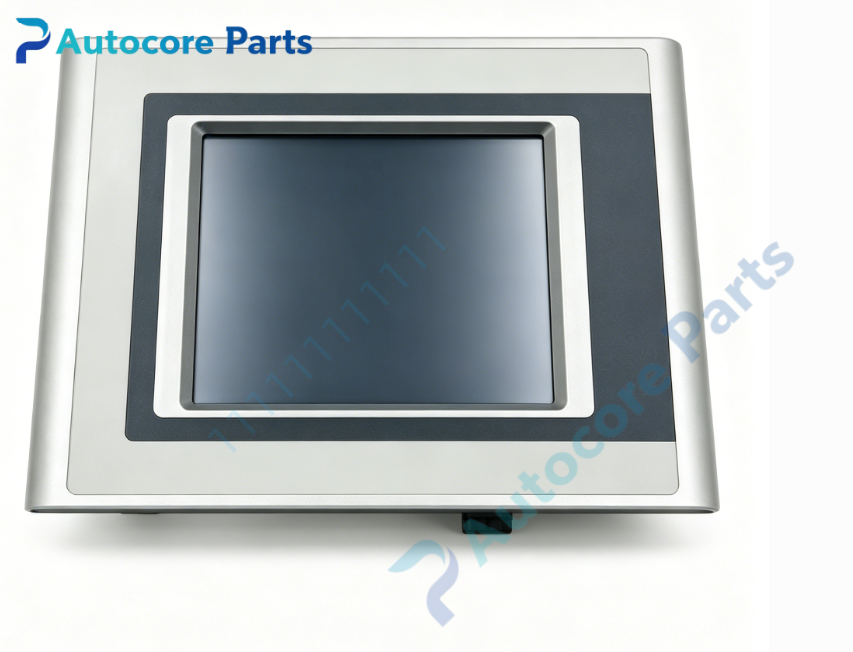

Display:5.7‑inch color TFT‑LCD,320×240 QVGA resolution,65536 colors,CCFL backlight brightness, integrated analog resistive touch screen

Processor:Geode LX800 500 MHz embedded x86 compatible CPU,MMX instruction set,hardware watchdog integrated,passive heat‑sink fanless cooling

Memory:128 MB SDRAM,512 KB lithium‑battery‑backed SRAM,external replaceable lithium backup battery for RTC and SRAM data retention

Expansion resource:No aPCI expansion slot,1×CompactFlash Type‑I slot for project backup and process‑data logging

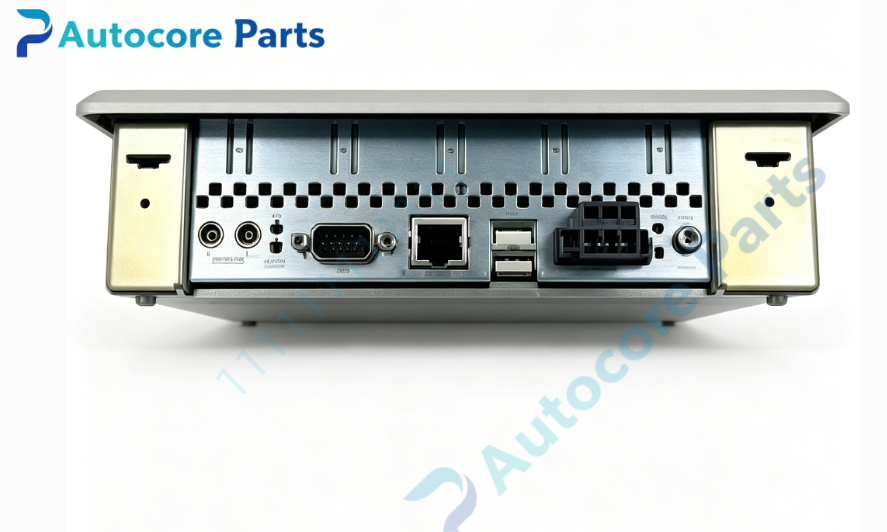

Communication interfaces:1×10/100Mbps Ethernet,1×RS232 DSUB‑9 connector,2×USB 1.1 host ports

Power supply:18‑30VDC DC input, nominal 24VDC; 0TB103‑series terminal block must be ordered separately

Installation:Cabinet front‑panel cut‑out mounting

Dimension:213mm158mm56mm

Weight:1.53kg

Degree of protection:Front‑side IP65, rear‑side IP20

Certification:CE, cULus industrial control equipment certification

Working temperature:0℃ ~ +55℃

Storage temperature:‑20℃ ~ +70℃

Relative humidity:5‑95% non‑condensing

Built‑in function:Independent local PLC program execution,touch‑operated graphic visualization,on‑site recipe and parameter modification,fault‑alarm message output,CompactFlash‑card supported project backup and data logging,Ethernet and serial interfaces realize data exchange with upper‑level host and field peripheral devices.

Product Brief

4PP320.0571‑35 is B&R EOL discontinued PP320 series all‑in‑one Power Panel for System2005 automation platform. This unit integrates embedded PLC controller and resistive touch HMI into compact metal cabinet‑mount housing, cannot support aPCI expansion module, runs complete machine automation logic without external host CPU unit.

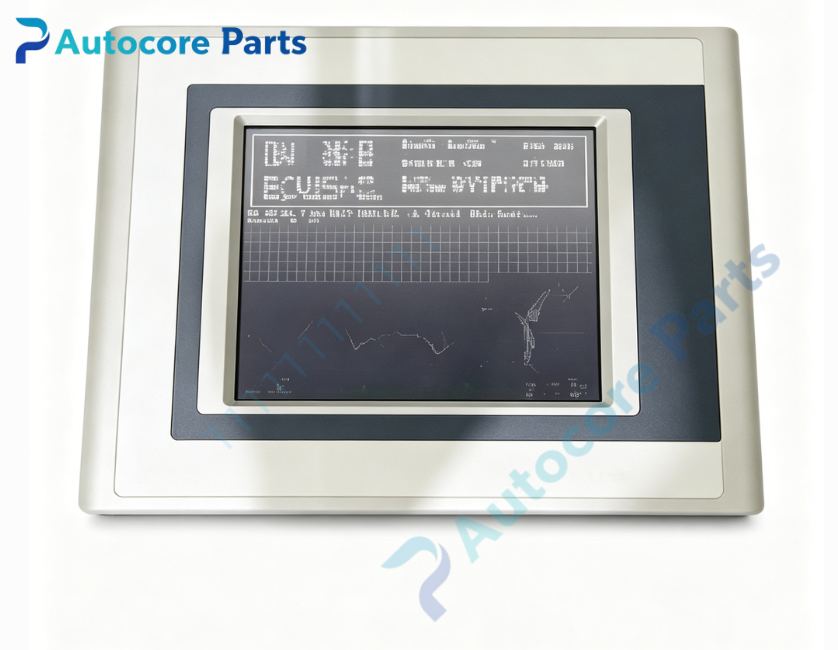

5.7‑inch QVGA color TFT‑LCD delivers vivid display for process values,production recipes and equipment fault alarms. Analog resistive touch screen remains stable under dusty industrial workshop environment. Geode LX800 500MHz processor provides reliable real‑time control performance for medium‑complex automation tasks.

CompactFlash Type‑I slot supports reliable program backup and process‑data recording. Fast‑Ethernet, RS232 and dual‑USB ports facilitate program download and peripheral device connection. Front‑side IP65 aluminum housing meets dust‑proof and splash‑proof requirements for cabinet‑mount installation scenarios.

This is legacy EOL spare part widely applied for old‑generation packaging,textile and printing equipment maintenance and renovation. Please confirm System2005 project compatibility and 0TB103‑series terminal‑block availability before purchase. Strict ESD anti‑static protection shall be followed during installation.
