B&R 4PP420.0571‑45 PP420 Power Panel

Technical Specifications

Model:4PP420.0571‑45

Brand:B&R

Product Type:PP420 Power Panel Monochrome Touch Integrated HMI‑PLC Controller

Applicable System:B&R System2005 automation platform, packaging, textile and printing machinery

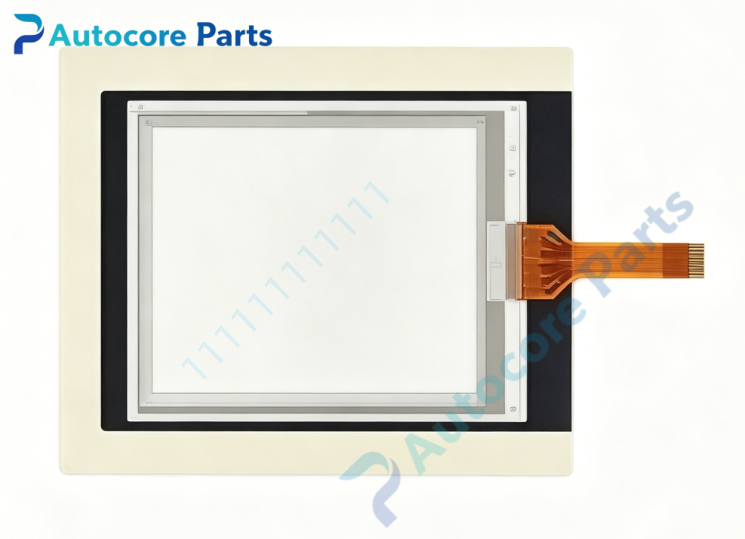

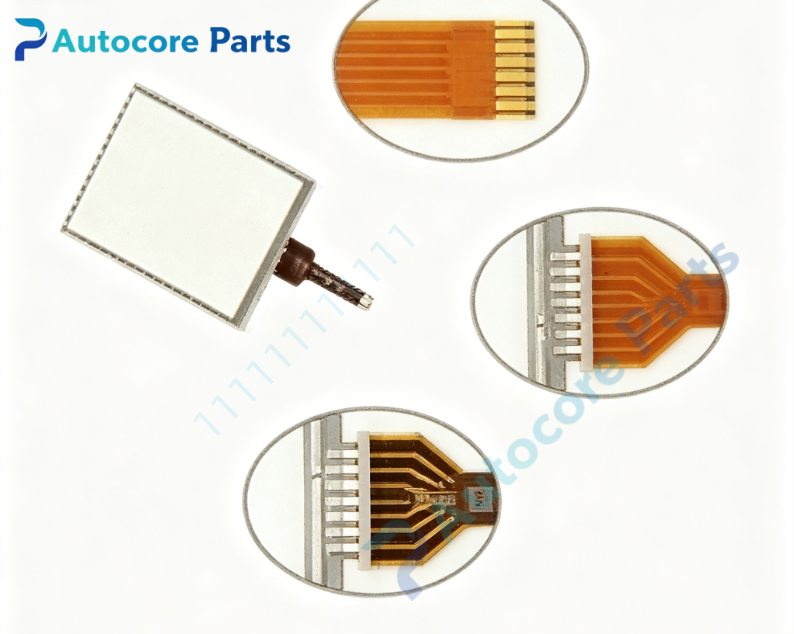

Display:5.7‑inch monochrome LCD,320×240 QVGA resolution,8 grayscale levels,150 cd/m² typical brightness,CCFL backlight, integrated analog resistive touch screen

Processor:Geode LX800 500 MHz embedded x86 compatible CPU,MMX instruction set,hardware watchdog integrated,fanless passive cooling

Memory:128 MB SDRAM,512 KB lithium‑battery‑backed SRAM,external replaceable Renata lithium backup battery for RTC and SRAM retention,typical service life approx 3 years

Expansion resource:1×aPCI internal expansion slot for optional communication modules,1×CompactFlash Type‑I slot for project backup and process‑data logging

Communication interfaces:1×10/100Mbps Ethernet,1×RS232 DSUB‑9 connector,2×USB 1.1 host ports; expand PROFIBUS‑DP / CAN‑bus / RS485 via aPCI add‑on board

Power supply:18‑30VDC DC input,nominal 24VDC; 0TB103.9 screw‑clamp or 0TB103.91 cage‑clamp terminal block must be ordered separately

Indicator LED:Power / User LED, CompactFlash status LED onboard

Installation:Cabinet front‑panel cut‑out mounting

Dimension:213mm158mm70mm

Weight:1.70kg

Degree of protection:Front‑side IP65, rear‑side IP20

Certification:CE, cULus industrial control equipment certification

Working temperature:0℃ ~ +55℃

Storage temperature:‑20℃ ~ +70℃

Relative humidity:5‑95% non‑condensing

Built‑in function:Independent local PLC program execution,monochrome touch‑operated graphic visualization,on‑site recipe and parameter modification,fault‑alarm message output,aPCI slot supports multi‑field‑bus expansion modules,CompactFlash‑card supported project backup and data logging,Ethernet and serial interfaces realize data exchange with upper‑level host and field peripheral devices.

Product Brief

4PP420.0571‑45 is B&R EOL discontinued PP420 series monochrome all‑in‑one Power Panel for System2005 automation platform. This unit integrates embedded PLC controller and resistive touch HMI into compact metal cabinet‑mount housing, runs complete machine automation logic without external host CPU unit.

5.7‑inch QVGA monochrome grayscale LCD delivers stable display for process values,parameter groups and equipment fault alarms. Analog resistive touch screen maintains reliable operation in dusty industrial workshop environment. Geode LX800 500MHz processor provides sufficient real‑time computing performance for medium‑complex automation tasks.

Built‑in aPCI expansion slot allows installing optional communication boards to expand PROFIBUS‑DP,CAN‑bus or RS485 field‑bus interfaces. CompactFlash Type‑I slot supports reliable program backup and process‑data recording. Front‑side IP65 aluminum housing meets dust‑proof and splash‑proof cabinet‑mount installation requirements.

This is legacy EOL spare part widely deployed on old‑generation packaging,textile and printing equipment. Please confirm System2005 project compatibility,aPCI module matching and 0TB103‑series terminal‑block availability before purchase. Strict ESD anti‑static protection shall be followed during installation.
