B&R 5AP1130.156C‑000 Automation Panel

Technical Specifications

Model:5AP1130.156C‑000

Brand:B&R

Product Type:Automation Panel series cabinet‑mount industrial multi‑touch display unit

Applicable System:B&R Automation Panel compatible link module and industrial PC system, packaging, machinery manufacturing and process automation equipment

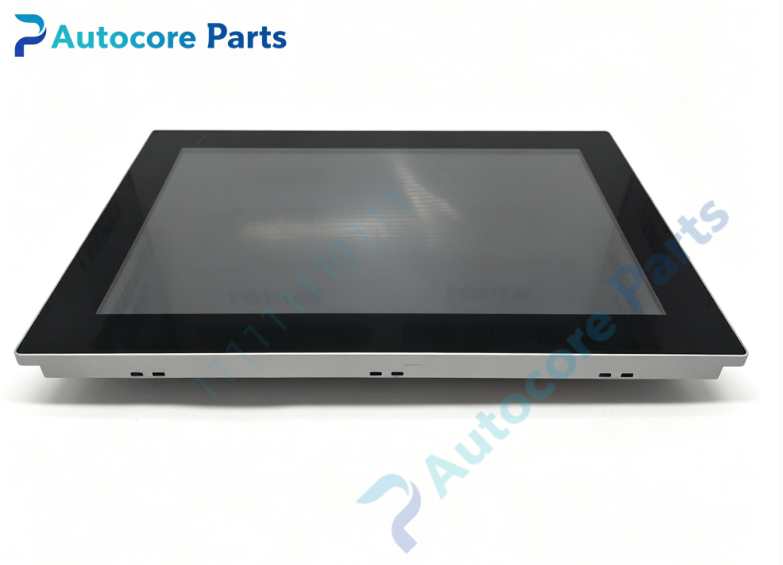

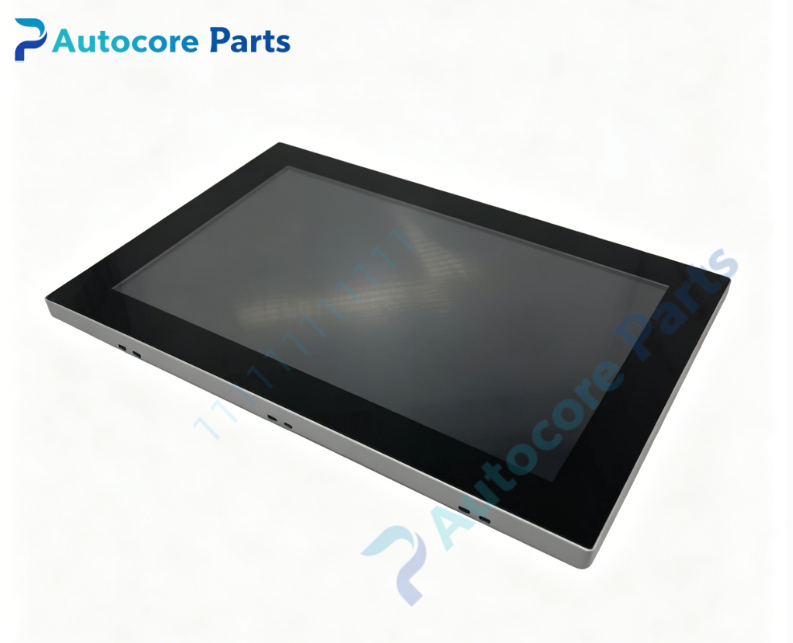

Display:15.6‑inch color TFT‑LCD,1920×1080 FHD resolution,16.7 million colors,800:1 contrast ratio,450 cd/m² brightness,half‑brightness service life ≥50000h

Touch type:Projected Capacitive Touch(PCT),multi‑touch support,approx 88% light transmittance

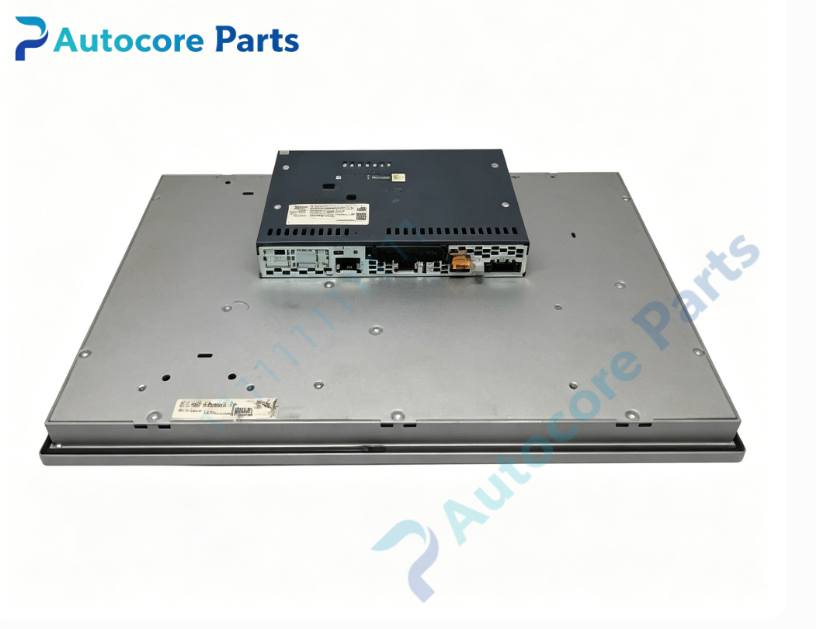

Mechanical structure:Coated aluminum front frame,black appearance,3 mm fixed sealing gasket

Installation:Control cabinet front cut‑out mounting

Dimension:414mm258.5mmdepth according to link module

Weight:3.80kg

Protection degree:Front IP65(Type4X indoor),rear IP20(valid with matched link module installed)

Certification:CE,UL cULus,UKCA,DNV marine certification,HazLoc hazardous location certification

Working temperature:0℃ ~ +55℃

Storage temperature:‑20℃ ~ +70℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function:High‑definition real‑time process data visualization,multi‑finger gesture operation,alarm and event display,recipe parameter monitoring,match with B&R link module to realize signal communication,adapt to different industrial host units.

Product Brief

5AP1130.156C‑000 is B&R Automation Panel series high‑performance 15.6‑inch FHD multi‑touch display unit,designed for cabinet‑mount industrial operation‑monitoring scenarios. This panel is only display‑touch unit,which needs to cooperate with matching link module and industrial PC host to complete the whole HMI system function,without independent main control unit inside.

15.6‑inch full‑high‑definition TFT screen presents rich production data,grouped alarm information and man‑machine operation interface clearly. Adopts PCT projected capacitive multi‑touch technology,supports multi‑finger gesture operation,brings smooth and sensitive operating experience for operators. Aluminum alloy front panel with fixed sealing gasket meets IP65 front‑face protection,suitable for dust‑proof workshop environment.

It supports multiple certification standards including marine and hazardous‑location certification,can be applied in general industrial equipment as well as ship‑borne and special hazardous‑area automation projects. Before purchase,please confirm matching link module model,cut‑out dimension and system software compatibility. Strict ESD anti‑static protection shall be followed during installation.
