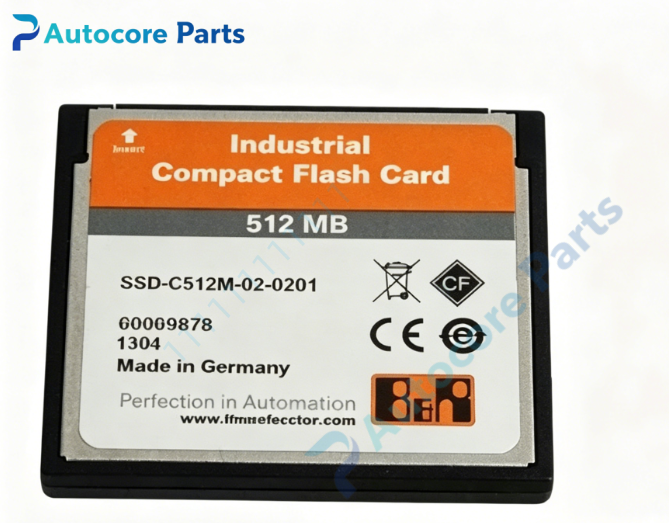

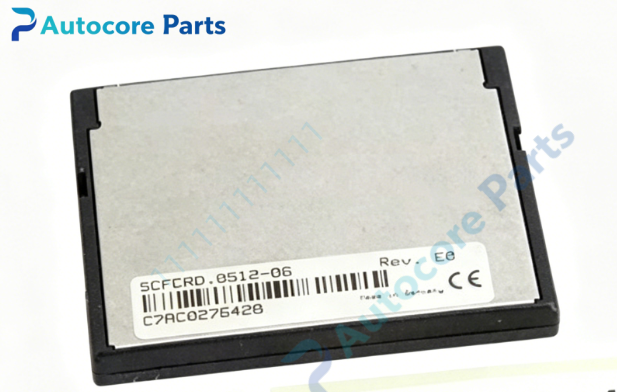

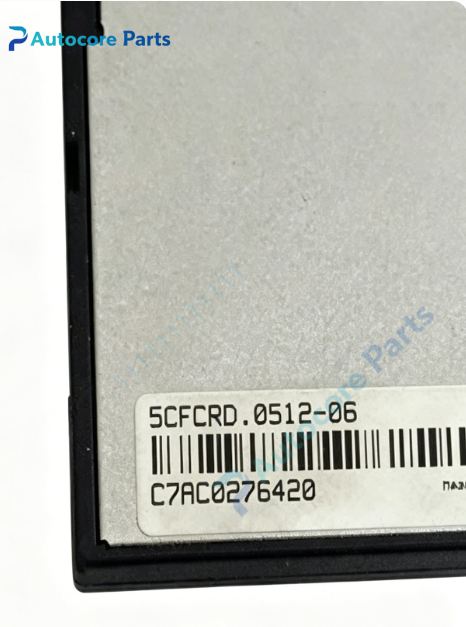

B&R 5CFCRD.0512‑06 CompactFlash Memory Card

Technical Specifications

Model:5CFCRD.0512‑06

Brand:B&R

Product Type:Industrial Type‑I CompactFlash memory card with SLC flash chip

Applicable System:B&R Power Panel series, AP920 HMI, PPC300, APC series industrial PC, X20 controller, match B&R Automation Studio embedded runtime system

Capacity:512 MB

Interface:CompactFlash Type‑I,50‑pin ATA interface,support PIO 0‑6,multiword DMA 0‑4,Ultra DMA 0‑4 mode

Flash particle:SLC industrial grade NAND flash,built‑in static wear‑leveling and ECC error‑correction function

Typical read speed:35 MB/s

Typical write speed:17 MB/s

Erase‑write cycles:2,000,000 typical cycles

Data retention:10 years minimum data retention time

MTBF:3,000,000 hours at 25℃

Mechanical dimension:42.8mm36.4mm3.3mm

Weight:12g

Certification:CE,cULus,UKCA,DNV marine certification

Working temperature:0℃ ~ +75℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing

Built‑in function:Store controller application program, HMI project files,production recipe data,system configuration parameters,support system boot,local program backup and restore for B&R automation equipment,S.M.A.R.T lifetime monitoring function for storage medium status tracking.

Product Brief

5CFCRD.0512‑06 is original B&R 512 MB industrial Type‑I CompactFlash memory card, adopts industrial‑grade SLC flash particle, delivers high erase‑write endurance, ECC error correction and excellent anti‑interference performance, suitable for long‑term 24‑hour continuous operation of industrial equipment.

This CF card can be used as system boot media, widely applied for storing runtime files,user application programs,HMI screen projects,large‑capacity production recipes and equipment configuration parameters. It supports local program backup and one‑key restore, convenient for on‑site equipment maintenance and program version management,real‑time flash lifetime monitoring helps users replace medium in advance.

It belongs to legacy EOL spare part,mainly for maintenance and renovation of B&R Power Panel,PPC,APC and X20 series automation devices. Before purchase,please confirm host hardware slot and firmware version compatibility. ESD anti‑static protection must be done during installation,hot‑plugging under power‑on status is forbidden to avoid program and data damage.
