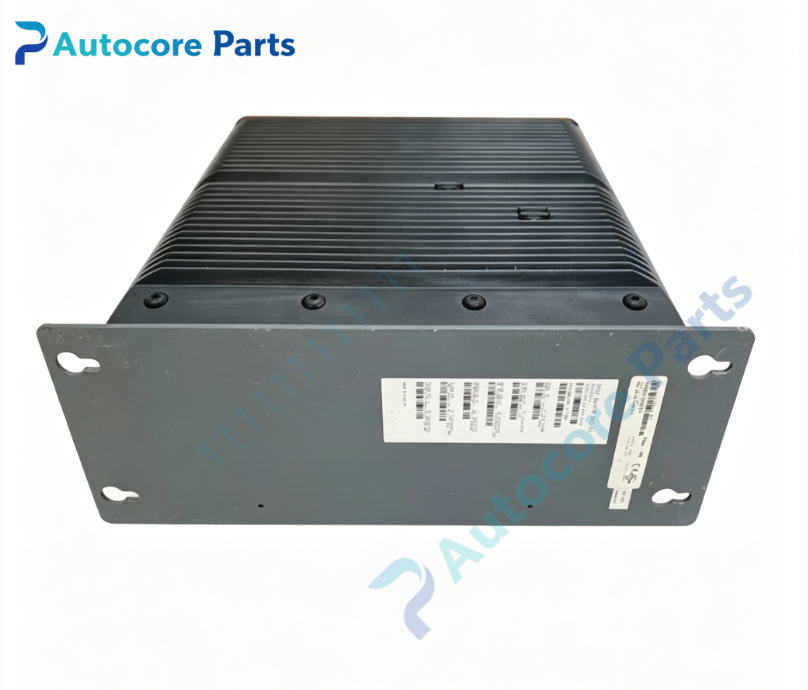

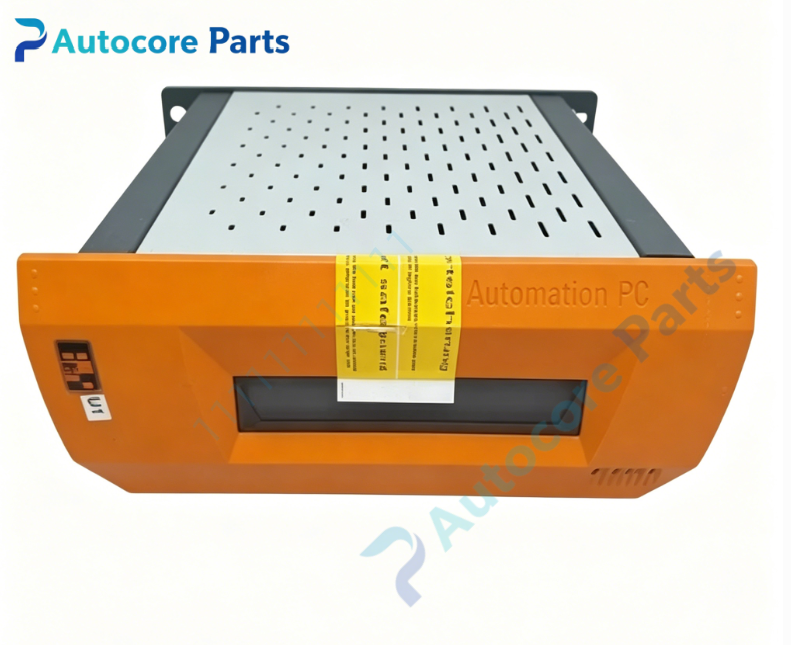

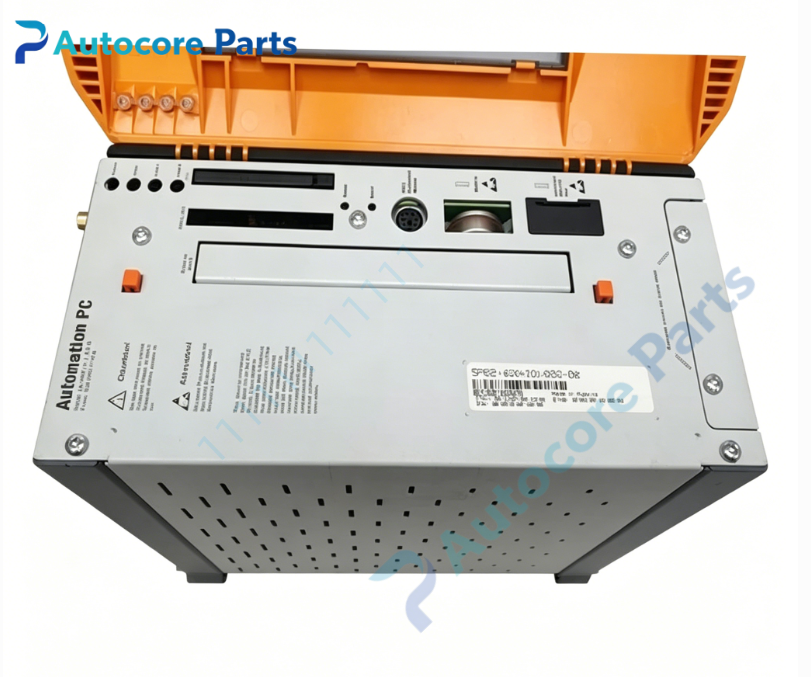

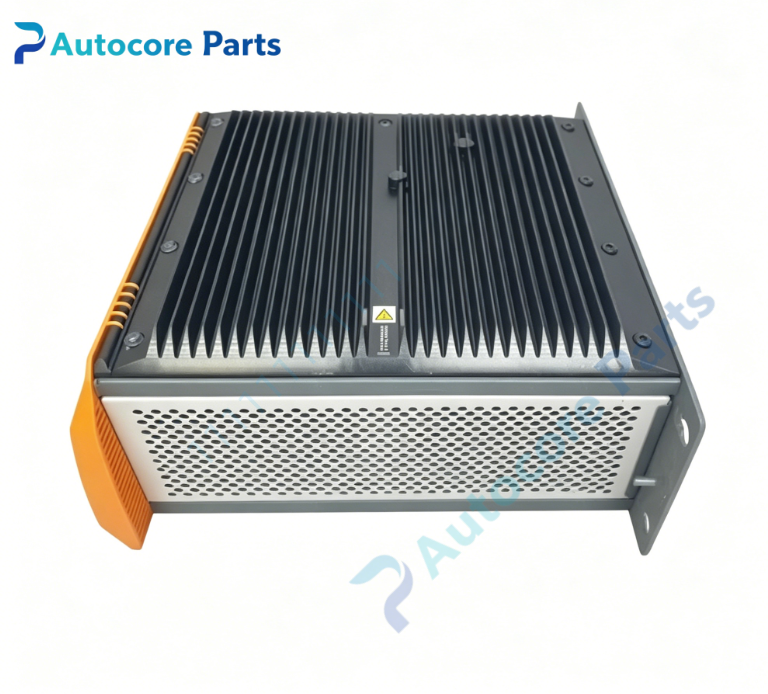

B&R 5PC600.SX02‑01 Automation PC 620 System Unit

Technical Specifications

Model:5PC600.SX02‑01

Brand:B&R

Product Type:APC620 series cabinet‑mount industrial PC base system unit

Applicable System:B&R Automation Studio system,match AP series Automation Panel HMI,packaging machinery,textile machinery and process automation equipment

Mainboard form:APC620 base chassis,support matching CPU board module installation

Expansion resource:2×standard PCI expansion slots for communication and functional add‑on boards

Storage interface:1×CompactFlash Type‑I slot for system boot and data storage

Communication interfaces:2×10/100Mbps Ethernet port,1×RS232 serial port,PS/2 keyboard‑mouse shared interface,multiple USB ports

Real‑time clock:Battery‑backed RTC,replaceable lithium backup battery

Power supply:24VDC SELV power input,support external UPS buffer power supply

Indicator LED:Power,HDD,Link status indicator LED onboard

Installation:Control cabinet internal mounting

Dimension:245mm200mm110mm

Weight:4.20kg

Degree of protection:IP20 for cabinet‑internal installation

Certification:CE,cULus,UKCA,DNV marine certification

Working temperature:0℃ ~ +55℃

Storage temperature:‑20℃ ~ +70℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function:Provide hardware base platform for industrial PC operation,support PCI expansion card expansion to realize multi‑bus communication,cooperate with CPU board and HMI display unit to complete automation control,real‑time data processing,recipe management and equipment monitoring function.

Product Brief

5PC600.SX02‑01 is B&R APC620 series industrial PC base system unit, it is chassis base hardware without CPU board, which needs to be equipped with matching CPU board, memory and storage medium to realize complete industrial computer function.

Equipped with two PCI expansion slots, users can install PROFIBUS,CANopen and other communication boards according to field requirements, to realize multi‑device bus interconnection. Built‑in CompactFlash slot supports system booting and project data storage, dual Ethernet ports meet redundant network and multi‑station communication requirements. With battery‑backed real‑time clock, it keeps time and configuration data when power off.

This is legacy EOL spare part,widely used for maintenance and renovation of old‑generation B&R automation production lines. Before purchase,please confirm matching CPU board,memory module and cabinet installation space compatibility. ESD anti‑static protection must be implemented during installation,do not hot‑swap PCI boards under powered‑on condition.
