B&R 5PC600.SX01‑00 Automation PC 620 System Unit

Technical Specifications

Model:5PC600.SX01‑00

Brand:B&R

Product Type:APC620 series cabinet‑mount industrial PC base system unit

Applicable System:B&R Automation Studio system,match AP series Automation Panel HMI,packaging machinery,textile machinery and small‑scale process automation equipment

Mainboard form:APC620 base chassis,needs matching CPU board module for complete operation

Expansion resource:1×32‑bit half‑size PCI 2.2 expansion slot; optional fan kit and UPS module support

Storage interface:1×CompactFlash Type‑I primary slot, optional second CompactFlash or HDD expansion interface

Communication interfaces:2×10/100Mbps Ethernet port,2×RS232 DSUB‑9 serial port,2×USB2.0 Type‑A,combined PS/2 keyboard‑mouse interface,DVI‑I display interface,AC97 audio interface

Real‑time clock:Removable Renata 950mAh lithium backup battery,4‑year typical service life,10 ms power‑fail buffer function with MTCX maintenance controller

Power supply:24VDC ±25% SELV power input,typical current 3.8A,typical inrush current 7A

Indicator LED:Power, status indicator LED onboard, power button and reset button

Installation:Control cabinet internal mounting

Dimension:245mm200mm110mm

Weight:3.40kg

Degree of protection:IP20 for cabinet‑internal installation

Certification:CE,cULus,UKCA,KC certification

Working temperature:0℃ ~ +55℃(depends on fitted CPU board)

Storage temperature:‑20℃ ~ +60℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function:Hardware base platform for industrial PC operation, single half‑size PCI slot supports communication add‑on board expansion,CompactFlash slot for system boot and project storage,multi‑interfaces for HMI and field device connection,real‑time clock maintains configuration data during power‑off,cooperate with CPU board to realize data processing,automation control and equipment monitoring.

Product Brief

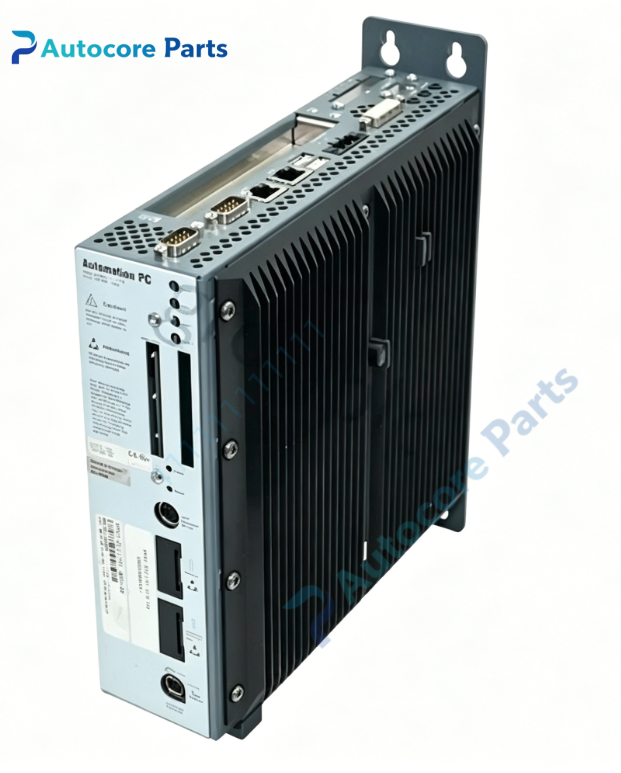

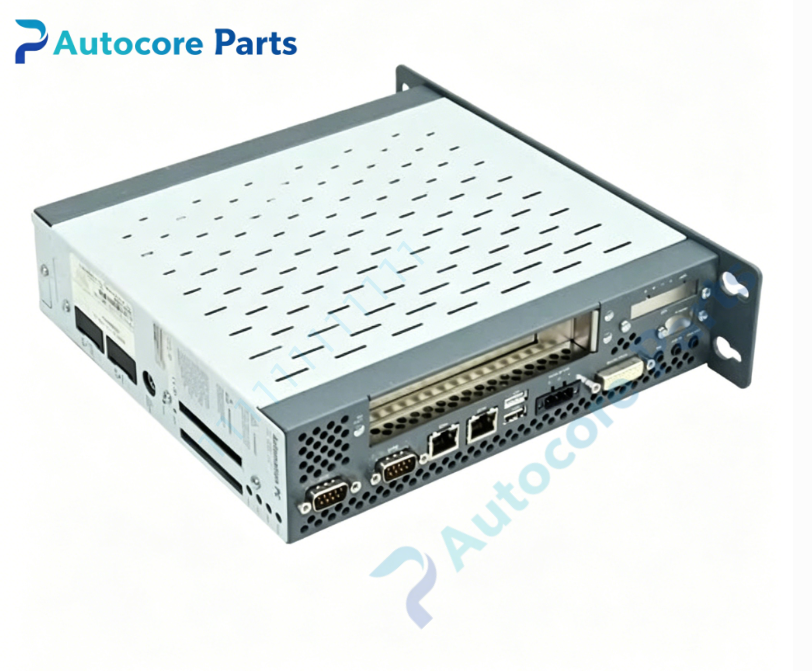

5PC600.SX01‑00 is B&R APC620 series compact industrial PC base system unit. It is chassis‑level hardware without CPU board and memory module,complete functions require corresponding CPU board,memory and storage medium to be assembled.

Equipped with one half‑size PCI expansion slot,suitable for installing single field‑bus communication board for small‑scale automation projects. Built‑in primary CompactFlash Type‑I slot supports system booting and application program storage. Dual Ethernet ports satisfy network communication demands,rich serial,USB and DVI‑I interfaces facilitate connection with HMI and peripheral devices. Removable lithium battery maintains RTC time and SRAM configuration data after power loss, and integrates MTCX power‑fail buffer logic for data protection.

This is legacy EOL spare part,mainly used for maintenance and renovation of old‑generation compact B&R automation production lines. Before purchase,please confirm matching CPU board model,PCI card dimension and cabinet installation space compatibility. ESD anti‑static protection must be implemented during installation,do not hot‑swap PCI boards under powered‑on status.
