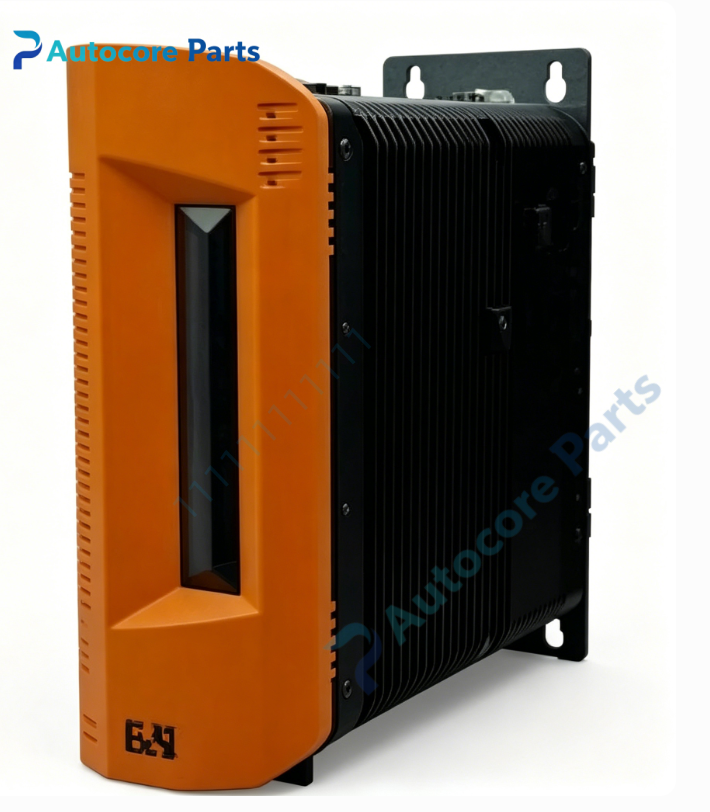

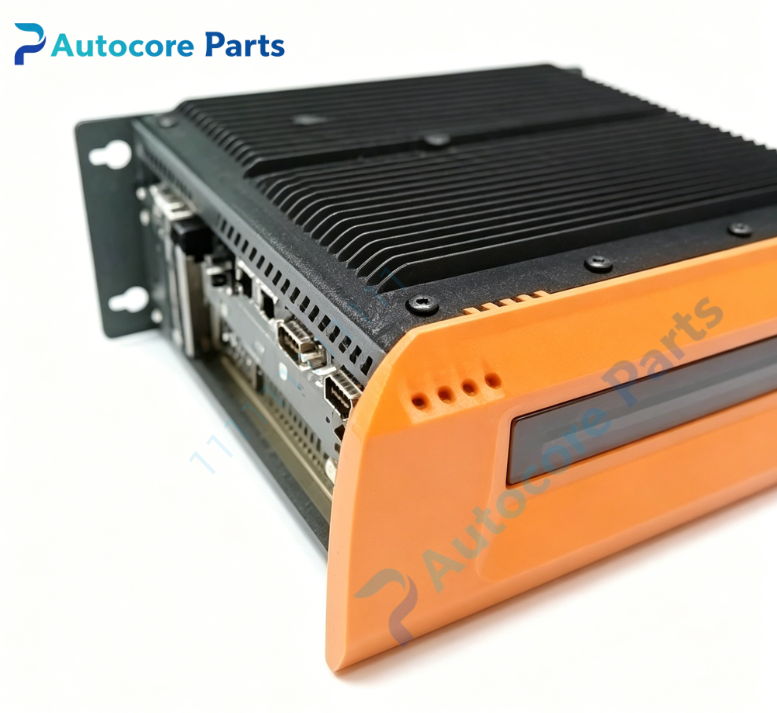

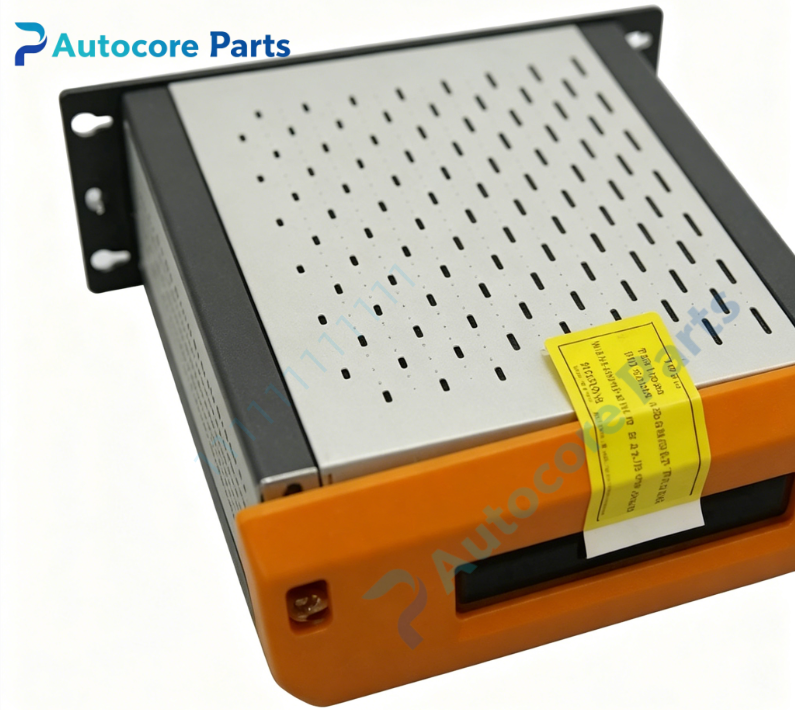

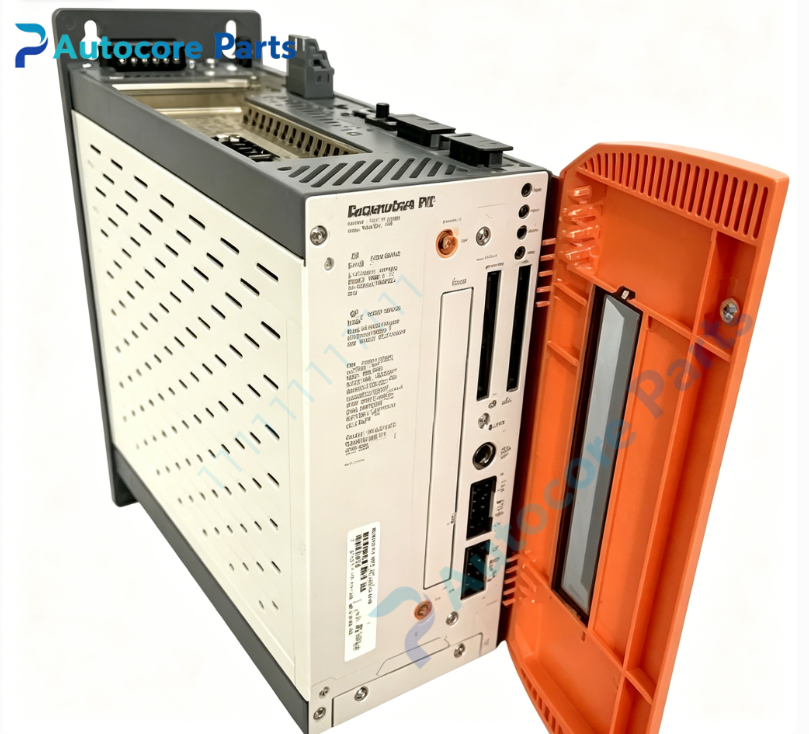

B&R 5PC600.SX02‑01 Automation PC 620 System Unit

Technical Specifications

Model:5PC600.SX02‑01

Brand:B&R

Product Type:APC620 series cabinet‑mount industrial PC base chassis unit

Applicable System:B&R Automation Studio, match AP‑series HMI panels, packaging machinery, printing equipment and process automation systems

Expansion resource:2×full‑size 32‑bit PCI 2.2 expansion slots,1 drive bay for storage device installation

Storage interface:1×CompactFlash Type‑I slot for system boot and application storage

Communication interfaces:2×10/100Mbps Ethernet,2×RS232 DSUB‑9,2×USB2.0 Type‑A,DVI‑I / Smart Display Link video port,PS/2 keyboard‑mouse interface,AC97 audio interface

Real‑time clock:Battery‑backed RTC, replaceable lithium backup battery for time and configuration data retention

Power supply:24VDC SELV input, support external UPS buffer power supply

Indicator LED:Power, status and link indicator LED on housing

Installation:Control cabinet internal mounting

Dimension:270mm253mm114.9mm

Weight:4.50kg(component‑dependent)

Degree of protection:IP20(cabinet‑inside installation)

Certification:CE,cULus,UKCA,DNV marine certification

Working temperature:0℃ ~ +55℃(depends on fitted CPU board)

Storage temperature:‑20℃ ~ +70℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function:Provide complete hardware base platform for industrial PC operation. Dual full‑size PCI slots support installation of multiple field‑bus communication boards. Rich peripheral interfaces realize connection with HMI,serial devices and network equipment. Cooperate with matching CPU board,memory and storage medium to complete automation control,real‑time data processing and equipment monitoring.

Product Brief

5PC600.SX02‑01 is B&R APC620 series industrial PC base chassis unit. It does not contain CPU board and memory modules, complete system functions need to install corresponding CPU board, memory and storage media.

Equipped with two full‑size PCI slots, it can install PROFIBUS,CANopen and other communication cards at the same time, suitable for projects requiring multi‑bus interconnection. Built‑in CompactFlash slot supports system boot and program storage. Dual Ethernet ports meet redundant network and multi‑station communication requirements. DVI‑I / Smart Display Link interface is directly compatible with B&R Automation Panel HMI.

This is legacy EOL discontinued spare part, widely used for maintenance and upgrading of old‑generation B&R automation production lines. Before purchase, please confirm CPU board compatibility, PCI card physical dimension and cabinet installation space. ESD anti‑static protection shall be performed during installation, hot‑swap of PCI boards under powered‑on state is prohibited.
