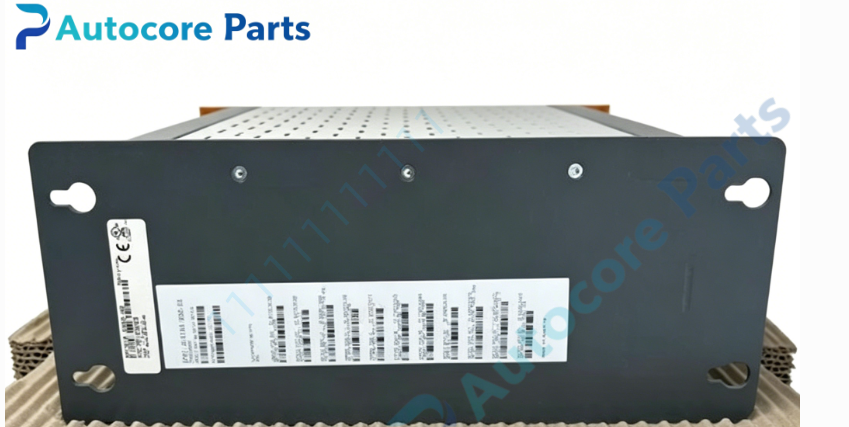

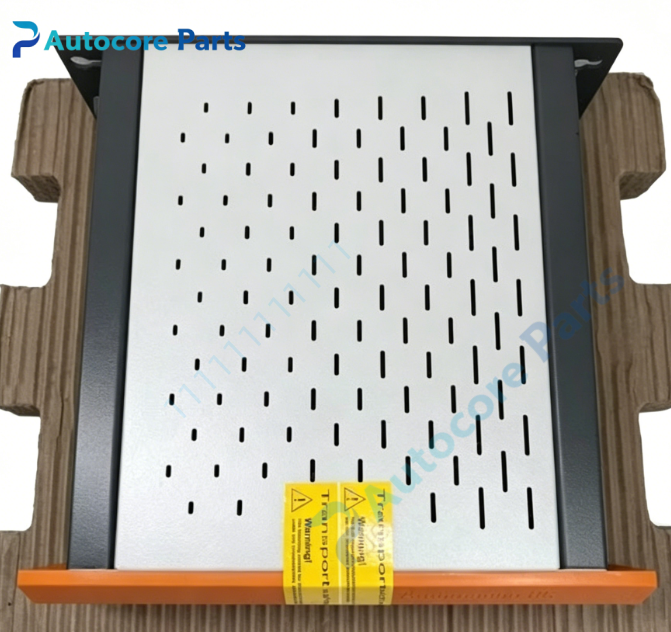

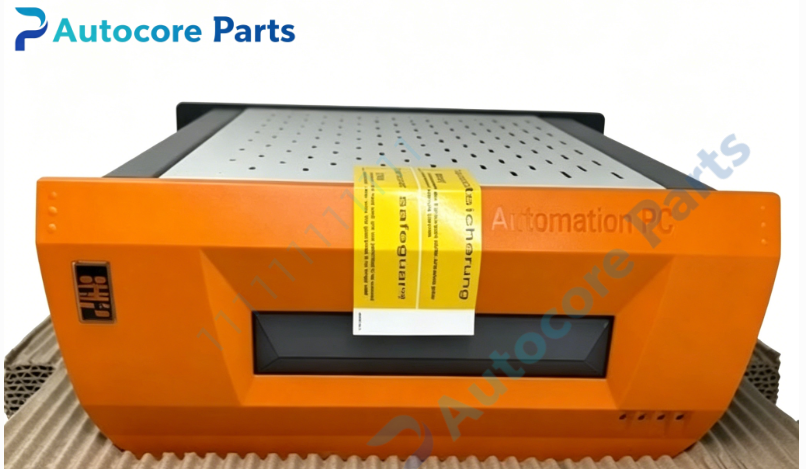

B&R 5PC810.SX02‑00 Automation PC 810 System Unit

Technical Specifications

Model:5PC810.SX02‑00

Brand:B&R

Product Type:APC810 series cabinet‑mount medium‑expansion industrial PC base chassis unit

Applicable System:B&R Automation Studio, match AP‑series Automation Panel HMI,packaging machinery,textile machinery and medium‑size process automation systems

Expansion resource:Support 2‑slot bus unit(optional 5PC810.BX02‑00 dual PCI / 5PC810.BX02‑01 1 PCI+1 PCIe x4);1 slot for Automation Panel Link transmitter;1 compact slide‑in drive bay,1 standard slide‑in drive bay

Onboard memory:512 kB battery‑backed SRAM,192 kB remanent variables for runtime retention during power‑fail

Communication interfaces:2×10/100/1000Mbps Gigabit Ethernet,2×RS232 DSUB‑9,5×USB2.0 Type‑A,Smart Display Link / DVI‑I video port,dongle interface

Real‑time clock:Removable Renata lithium backup battery,MTCX power‑fail controller,10 ms power‑fail buffer time

Power supply:24VDC ±25% SELV input;power terminal block 0TB103.9 / 0TB103.91 ordered separately

Indicator LED:Power,HDD,Link1,Link2 status LED;power button,reset button and onboard buzzer

Cooling:Passive heat sink cooling,support optional fan kit for high‑temperature environment

Installation:Control cabinet internal mounting

Dimension:120.8mm270mm254.6mm(depends on heat sink)

Weight:2.80kg(component‑dependent)

Degree of protection:IP20(cabinet‑inside installation)

Certification:CE,cULus,UKCA certification

Working temperature:0℃ ~ +55℃(depends on fitted CPU board)

Storage temperature:‑20℃ ~ +70℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function:Medium‑expansion industrial PC hardware base platform,needs matching CPU board,memory and bus unit for full operation. Two‑slot bus supports two field‑bus communication cards installation. Dual drive bays satisfy diversified system boot and local storage requirements. Gigabit Ethernet and rich peripheral interfaces connect HMI and field devices. Battery‑backed SRAM and RTC preserve runtime variables and system time after power loss.

Product Brief

5PC810.SX02‑00 is B&R APC810 medium‑expansion industrial PC base chassis unit. It does not include CPU board,memory and bus unit;complete system function requires corresponding accessories to be assembled.

It supports two‑slot PCI/PCI‑Express bus unit,can install two field‑bus communication boards simultaneously,ideal for medium‑size automation projects with dual‑bus interconnection demands. Equipped with one compact slide‑in drive bay and one standard slide‑in drive bay,meets different system boot and application storage requirements. Dual gigabit Ethernet ports satisfy high‑speed network and redundant communication requirements. Smart Display Link interface is directly compatible with B&R Automation Panel HMI series.

This is legacy EOL discontinued spare part,widely used for maintenance and upgrading of old‑generation medium‑size B&R automation production lines. Before purchase,please confirm CPU board,bus unit model and cabinet installation space compatibility. ESD anti‑static protection shall be performed during installation,hot‑swap of expansion boards under powered‑on state is prohibited.
