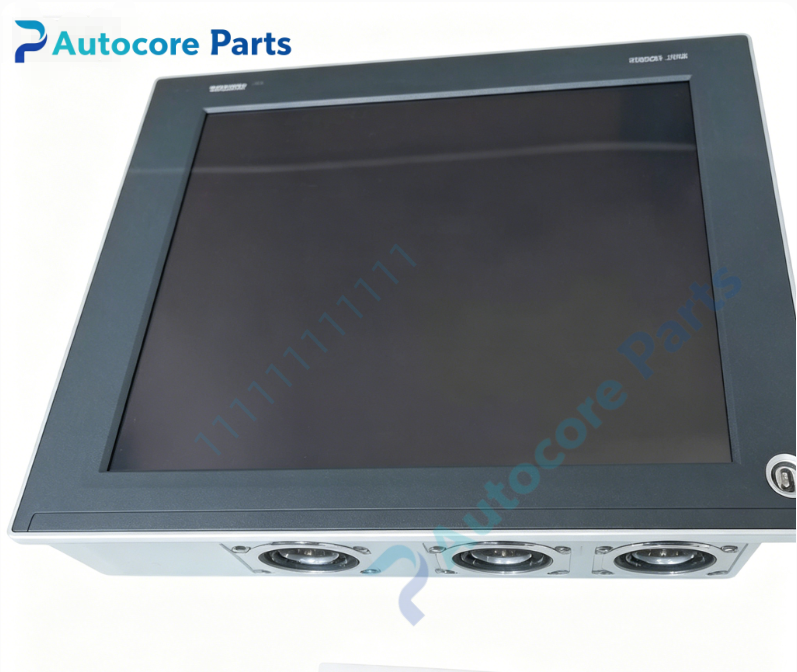

B&R 5PC820.1906‑00 Panel PC 820

Technical Specifications

Model:5PC820.1906‑00

Brand:B&R

Product Type:Panel PC 820 series cabinet cut‑out integrated industrial panel PC

Applicable System:B&R Automation Studio,packaging machinery,printing machinery,process automation and factory monitoring stations

Display:19‑inch color TFT‑LCD,SXGA 1280×1024 resolution,CCFL backlight

Touch type:Analog resistive touch screen,adapt to oily and dusty workshop environment

Cooling:Completely fanless passive heat dissipation structure

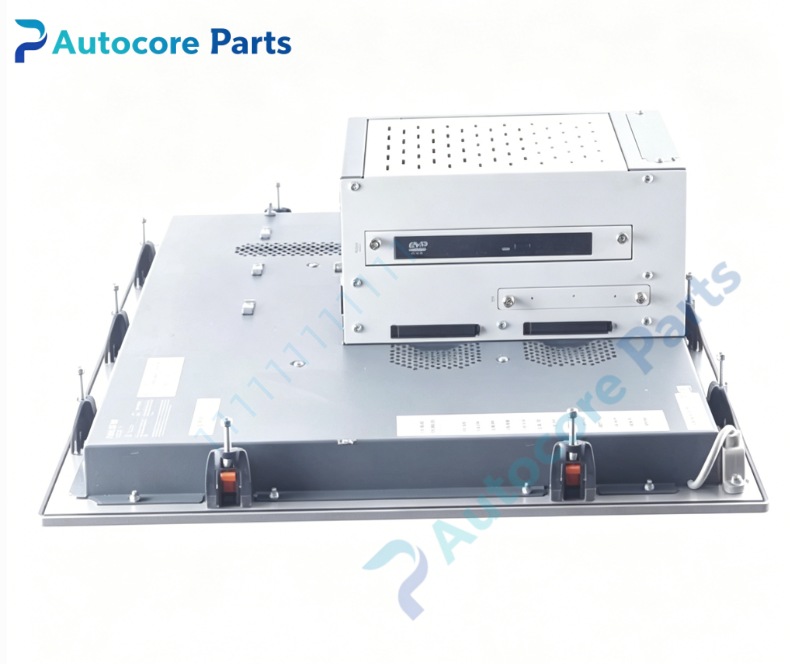

Expansion resource:Optional 1×PCIe compact slot;optional slide‑in compact drive slot;support PCI / PCIe expansion modules

Communication interfaces:2×10/100/1000Mbps Gigabit Ethernet,1×RS232 DSUB‑9,5×USB2.0 Type‑A,Smart Display Link / DVI‑I video interface,HDA audio,dongle interface

Real‑time clock:Removable Renata 950 mAh lithium backup battery for RTC time retention

Power supply:24VDC ±25% SELV input,power terminal block 0TB103.9 / 0TB103.91 needs separate ordering

Indicator LED:Power,status,network link indicator LED

Installation:Control cabinet front cut‑out mounting,with front sealing gasket

Degree of protection:Front‑side IP65(rely on intact gasket and standard installation),rear IP20

Certification:CE,cULus,UKCA certification

Working temperature:0℃ ~ +50℃

Storage temperature:‑20℃ ~ +70℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function:Integrated panel PC integrates display,touch and host hardware. Complete machine supports application operation,real‑time data visualization,alarm event management and recipe parameter configuration. Reserved expansion slots realize field‑bus communication expansion,rich interfaces connect on‑site peripheral equipment.

Product Brief

5PC820.1906‑00 belongs to B&R Panel PC 820 series integrated cabinet‑mount industrial panel PC. Adopts fanless passive cooling structure, eliminates fan failure risk, suitable for long‑term stable operation in industrial workshop environment.

19‑inch SXGA TFT display matches analog resistive touch panel, which can operate normally even with oil stain and dust on the surface. It reserves compact PCIe expansion slot and slide‑in drive bay, which can expand field‑bus communication cards and local storage media according to project requirements. Dual gigabit Ethernet ports meet redundant network and multi‑device interconnection demands, and Smart Display Link interface supports extended display connection.

This is legacy EOL discontinued spare part, widely used for maintenance and renovation of old‑generation B&R automation equipment. Before purchase, please confirm expansion module compatibility and cabinet cut‑out dimension. ESD anti‑static protection shall be done during installation, hot‑swap of expansion boards under powered‑on state is prohibited. Front IP65 protection must ensure that the sealing gasket is intact and installed in place
