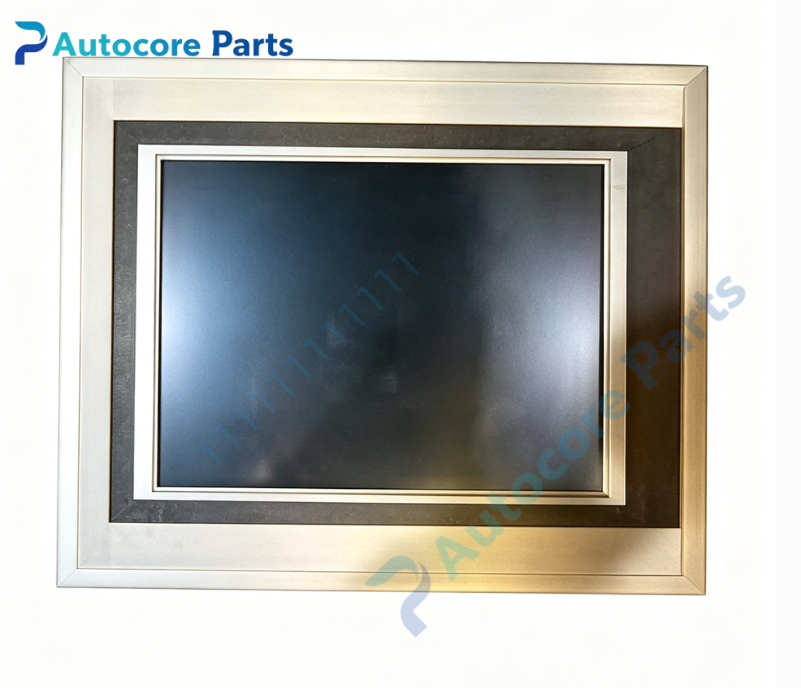

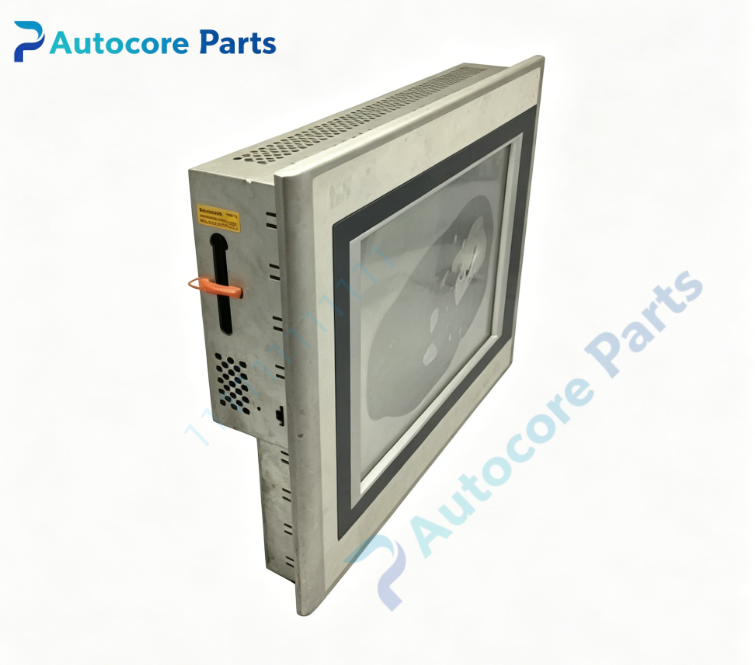

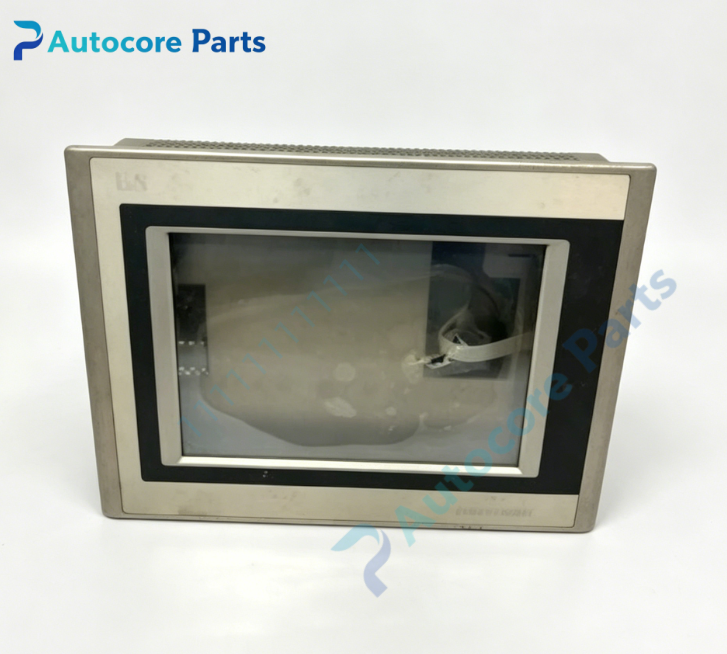

B&R 5PP120.1043‑37A Power Panel PP120

Technical Specifications

Model:5PP120.1043‑37A

Brand:B&R

Product Type:PP120 series BIOS‑type cabinet‑mount integrated Power Panel HMI unit

Applicable System:B&R Power Panel BIOS platform,compatible with GPOS operating system,packaging machinery,textile machinery and general industrial automation equipment

Display:10.4‑inch color TFT‑LCD,VGA 640×480 resolution,CCFL backlight

Touch type:Analog resistive touch screen,support glove operation for dusty and oily workshop site

Memory:128 MB onboard SDRAM

Storage interface:1×CompactFlash Type‑I slot for system boot,application project and recipe storage

Communication interfaces:1×10/100Mbps Ethernet,1×RS232 DSUB‑9 serial port,2×USB1.1 Type‑A host port

Real‑time clock:Built‑in replaceable lithium backup battery for RTC time and configuration data retention

Power supply:24VDC ±25% SELV input;terminal block 0TB103.9 / 0TB103.91 needs separate ordering;typical power consumption 15W,max 20W

Installation:Control cabinet front cut‑out mounting,with front sealing gasket

Dimension:323mm260mm65.5mm

Weight:3.70kg

Degree of protection:Front‑side IP65(NEMA 4X indoor),rear IP20(valid under intact gasket and standard installation)

Certification:CE,cULus certification

Working temperature:0℃ ~ +50℃

Storage temperature:‑20℃ ~ +70℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function:All‑in‑one HMI integrates display,touch and control hardware. Realize process‑data visualization,alarm event display,recipe‑parameter setting and local project storage via CompactFlash card. Rich communication interfaces realize data interaction with field‑side automation equipment.

Product Brief

5PP120.1043‑37A is B&R PP120 series BIOS‑type integrated Power Panel HMI. It adopts metal front frame with sealing gasket, achieving front‑panel IP65 protection, suitable for cabinet‑mount installation in harsh industrial workshops.

10.4‑inch VGA TFT display is matched with analog resistive touch panel, supporting glove operation under dust and oil pollution environment. Equipped with 128MB onboard SDRAM and CompactFlash Type‑I slot, users can store system files,HMI projects and production recipe data. 10/100Mbps Ethernet,RS232 and dual USB ports satisfy multi‑device connection requirements. Built‑in lithium battery maintains real‑time clock and configuration data after power‑off.

This is legacy EOL discontinued spare part,mainly applied for maintenance and renovation of old‑generation B&R automation equipment. Before purchase,please confirm operating‑system compatibility and cabinet cut‑out dimension. ESD anti‑static protection shall be performed during installation,hot‑swap of CompactFlash card under powered‑on state is prohibited. Front IP65 protection depends on complete sealing gasket and standard installation.
