B&R 5PP320.0571‑39 Power Panel PP320

Technical Specifications

Model:5PP320.0571‑39

Brand:B&R

Product Type:PP320 series BIOS‑type cabinet‑mount integrated Power Panel HMI unit

Applicable System:B&R GPOS runtime system,packaging machinery,textile machinery,small‑scale production line and general industrial automation equipment

Display:5.7‑inch color TFT‑LCD,QVGA 320×240 resolution,CCFL backlight

Touch type:Analog resistive touch screen,support glove operation for dusty and oily workshop environment

Memory:256 MB onboard SDRAM

Storage interface:1×CompactFlash Type‑I slot for system boot,HMI project and recipe data storage

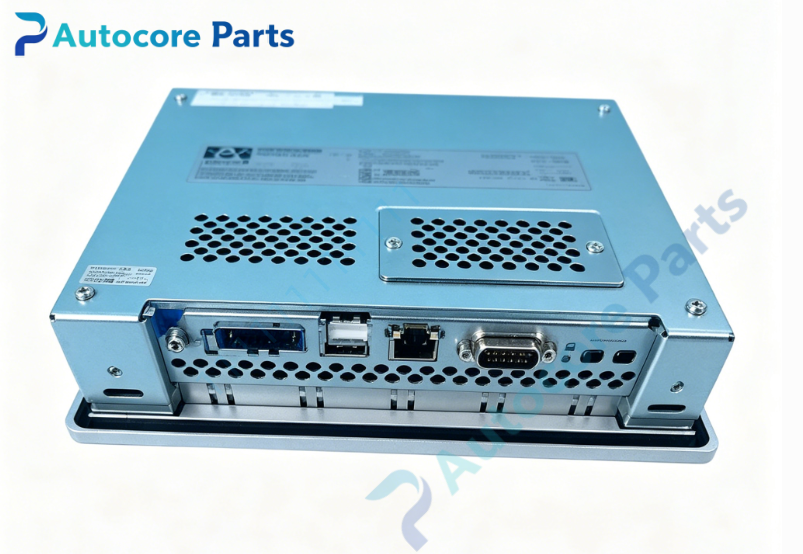

Communication interfaces:1×10/100Mbps Ethernet,1×RS232 DSUB‑9 serial port,2×USB1.1 Type‑A host port

Real‑time clock:Built‑in replaceable lithium backup battery for RTC time and configuration parameter retention

Power supply:24VDC ±25% SELV input;power terminal block 0TB103.9 / 0TB103.91 ordered separately;typical power consumption 12W,max 18W

Installation:Control cabinet front cut‑out mounting,equipped with front‑face sealing gasket

Dimension:212mm156mm55.5mm

Weight:1.40kg

Degree of protection:Front‑side IP65(NEMA4X indoor),rear‑side IP20(valid under intact gasket and standard installation)

Certification:CE,cULus certification

Working temperature:0℃ ~ +50℃

Storage temperature:‑20℃ ~ +70℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function:All‑in‑one HMI hardware integrates display,touch and control platform. Real‑time production data display,alarm message output,recipe parameter modification and local project storage via CF card. Multi‑communication interfaces realize data exchange with field automation controllers.

Product Brief

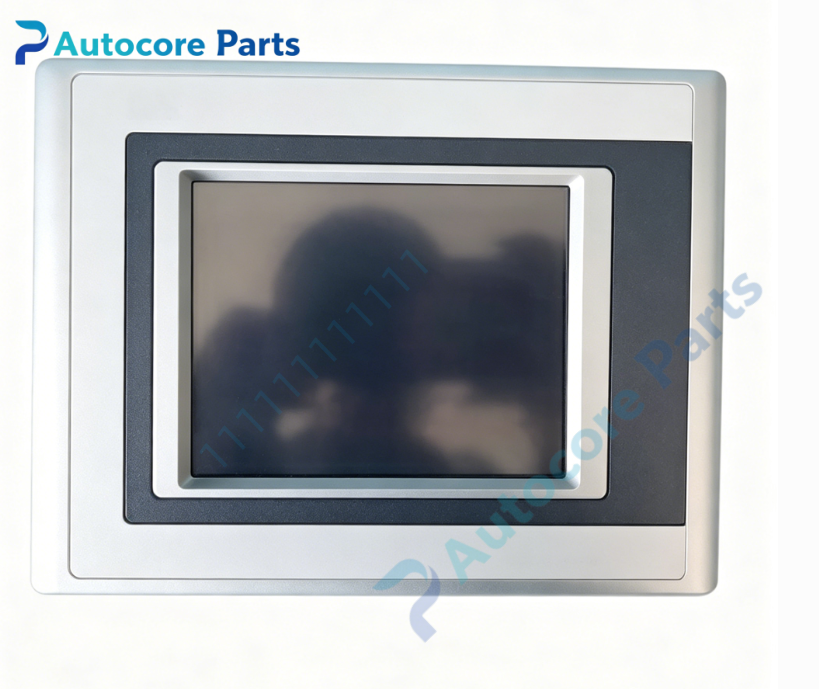

5PP320.0571‑39 is B&R PP320 series BIOS‑type integrated Power Panel HMI. Metal front panel with sealing gasket realizes front‑panel IP65 protection,adapt to harsh cabinet‑installation workshop environment.

5.7‑inch QVGA color TFT display cooperates with analog resistive touch panel,still workable with oil stain and dust on surface. Onboard 256MB SDRAM and CompactFlash Type‑I slot support storing system runtime,HMI visualization project and production recipe data. Ethernet,RS232 and dual USB ports satisfy connection demand for controller and peripheral devices. Built‑in lithium battery keeps real‑time clock and configuration data after power‑off.

This belongs to legacy EOL discontinued spare part,mostly used for old‑generation production line maintenance and hardware replacement. Before purchase,please confirm GPOS system version and cabinet cut‑out dimension compatibility. ESD anti‑static measures must be taken during installation,powered‑on hot‑plug for CF card is forbidden. Front IP65 protection relies on intact sealing gasket and standard installation.
