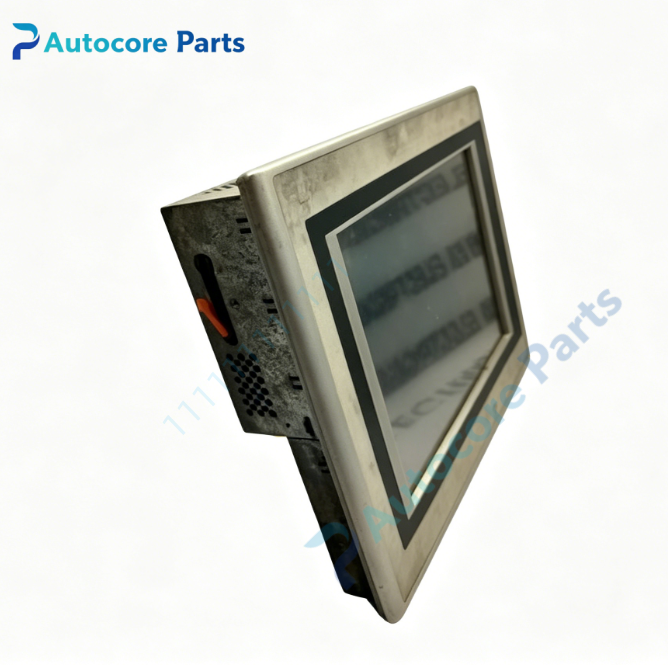

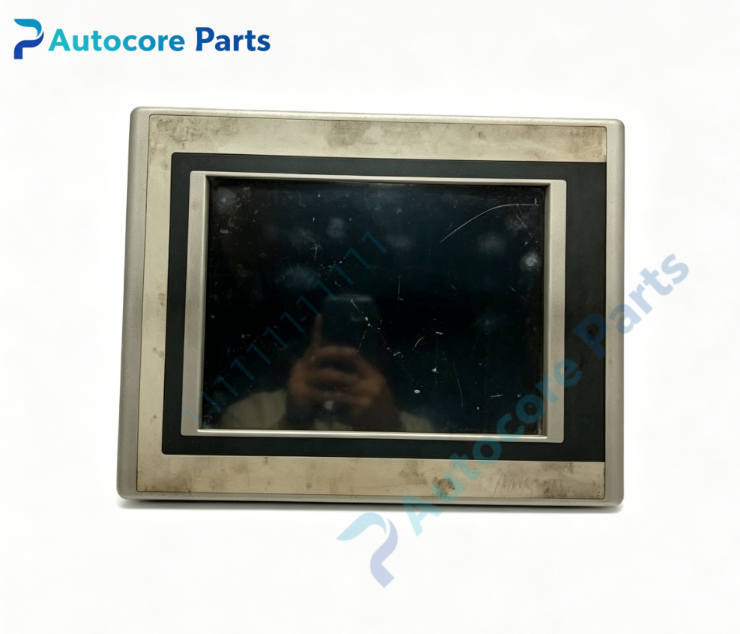

B&R 5PP320.1214‑39 Power Panel PP320

Technical Specifications

Model:5PP320.1214‑39

Brand:B&R

Product Type:PP320 series BIOS‑type cabinet‑mount all‑in‑one Power Panel HMI unit

Applicable System:B&R GPOS runtime system,Automation Studio,packaging machinery,printing equipment and medium‑size industrial automation production lines

Display:12.1‑inch color TFT‑LCD,SVGA 800×600 resolution,CCFL backlight

Touch type:Analog resistive touch screen,support glove operation under dusty and oily workshop environment

Processor:AMD Geode LX800,500 MHz

Memory:256 MB onboard SDRAM

Storage interface:1×CompactFlash Type‑I slot for system boot,HMI project and recipe data storage

Communication interfaces:1×10/100Mbps Ethernet,1×RS232 DSUB‑9 serial port,2×USB1.1 Type‑A host port

Real‑time clock:Built‑in replaceable lithium backup battery for RTC time and configuration parameter retention

Power supply:24VDC ±25% SELV input;power terminal block 0TB103.9 / 0TB103.91 ordered separately;typical power consumption 18W,max 23W

Installation:Control cabinet front cut‑out mounting,equipped with front‑face sealing gasket

Dimension:360mm285mm54mm

Weight:4.10kg

Degree of protection:Front‑side IP65(NEMA4X indoor),rear‑side IP20(valid under intact gasket and standard installation)

Certification:CE,cULus certification

Working temperature:0℃ ~ +50℃

Storage temperature:‑20℃ ~ +70℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function:Integrated HMI integrates CPU,display and touch hardware. Real‑time production‑data visualization,alarm message display,recipe‑parameter modification and local project storage via CompactFlash card. Multiple communication interfaces realize stable data exchange with field‑side automation controllers.

Product Brief

5PP320.1214‑39 is B&R PP320 series BIOS‑type integrated Power Panel HMI. Equipped with AMD Geode LX800 processor and 256MB SDRAM, it completes control and HMI functions in single unit, no extra controller required.

12.1‑inch SVGA TFT display cooperates with analog resistive touch panel, larger viewing area suitable for medium‑complex monitoring tasks. Built‑in CompactFlash Type‑I slot supports system booting and large‑volume recipe storage. Ethernet,RS232 and dual USB ports satisfy connection demands for PLC and peripheral devices. Aluminum front panel with sealing gasket achieves front‑side IP65 dust‑proof and splash‑proof performance. Replaceable lithium battery keeps RTC time and configuration data after power‑off.

This belongs to legacy EOL discontinued spare part,widely used for maintenance and hardware replacement of old‑generation B&R automation production lines. Before purchase,please confirm GPOS firmware version and cabinet cut‑out dimension compatibility. ESD anti‑static measures must be taken during installation,powered‑on hot‑swap for CF card is forbidden. Front IP65 protection relies on intact sealing gasket and standard installation.
