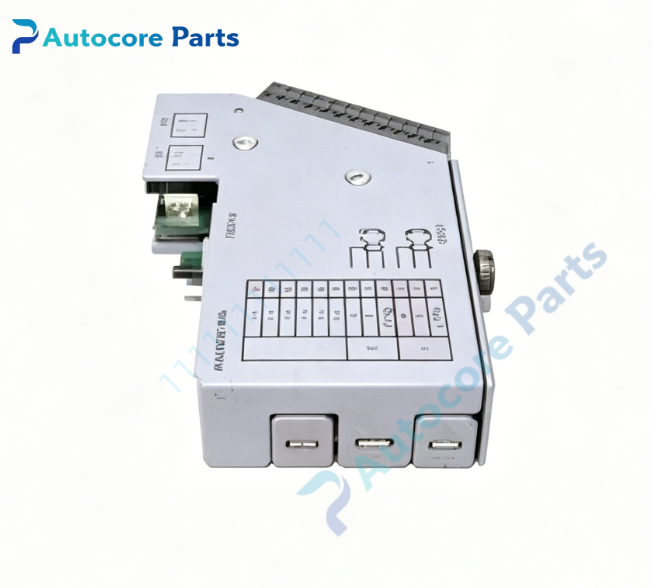

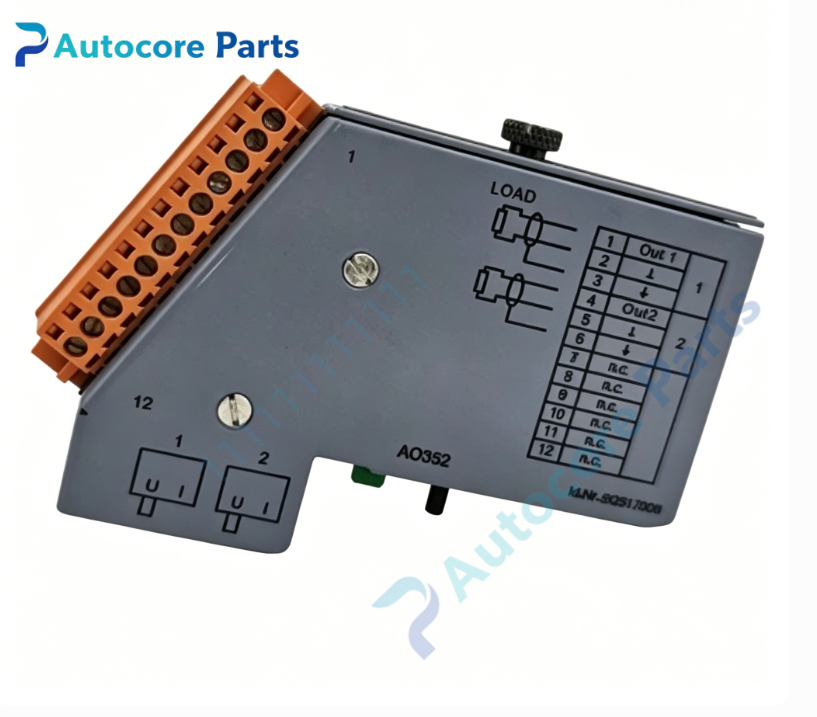

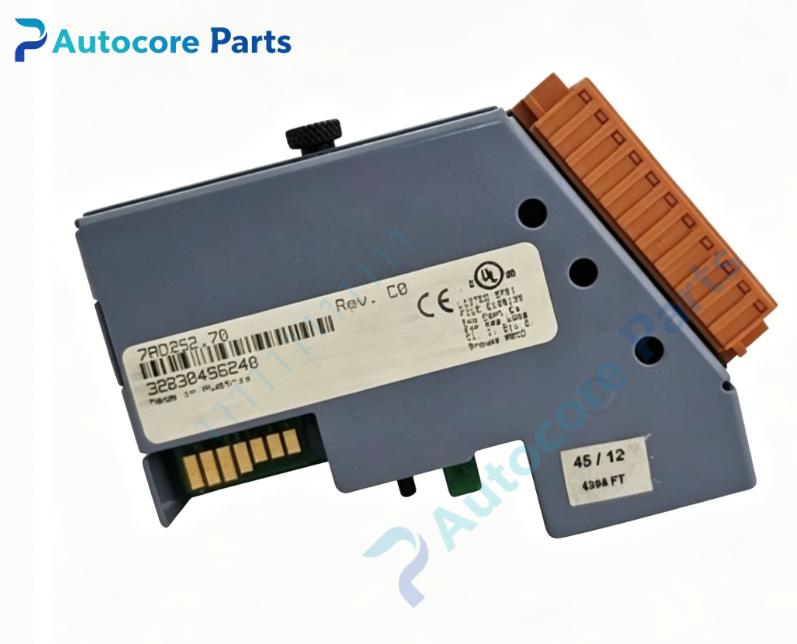

B&R 7AO352.70 Analog Output Module

Technical Specifications

Model:7AO352.70

Brand:B&R

Product Type:Series2003 screw‑in analog output module

Applicable System:B&R Automation Studio,Series2003 CPU system,packaging machinery,process regulation,valve and variable‑speed drive control

Output Channels:2 independent configurable analog output channels

Signal Range:Voltage:‑10 V ~ +10 V; Current:0‑20 mA,software selectable per channel

Resolution:12‑bit DAC conversion

Load Requirement:Voltage mode ≥1 kΩ;Current mode ≤500 Ω

Isolation:Galvanic isolation between field side and controller backplane

Diagnostic:Short‑circuit detection for output channels

Power supply:Power supplied via Series2003 backplane,24VDC SELV

Terminal:Terminal block 7TB712.9 / 7TB712.91 ordered separately

Installation:Screw‑in plug‑in onto Series2003 base holder

Dimension:120mm34mm23mm

Weight:0.13kg

Degree of protection:IP20

Certification:CE,cULus,UKCA certification

Working temperature:‑20℃ ~ +60℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function:Convert digital control values from PLC into standard industrial analog voltage or current signals. Two independent channels can drive proportional valves,frequency converters and other field analog actuators. Galvanic isolation improves anti‑interference performance in noisy workshop environment. Short‑circuit diagnosis helps fast fault location.

Product Brief

7AO352.70 is B&R Series2003 screw‑in analog output module. Two channels support software switching between ±10 V voltage and 0‑20 mA current output, flexible for different field actuators.

12‑bit digital‑to‑analog conversion provides stable analog control signal. Screw‑in plug‑in structure allows quick mounting and replacement on Series2003 backplane base unit. Built‑in short‑circuit detection monitors output status, convenient for equipment troubleshooting.

This is legacy EOL discontinued spare part,widely used for old‑generation Series2003 automation system maintenance. Before purchase,please confirm Series2003 base holder compatibility and actuator signal range matching. ESD anti‑static protection shall be performed during installation,do not plug/unplug module under powered‑on condition. Terminal block must be purchased separately.
