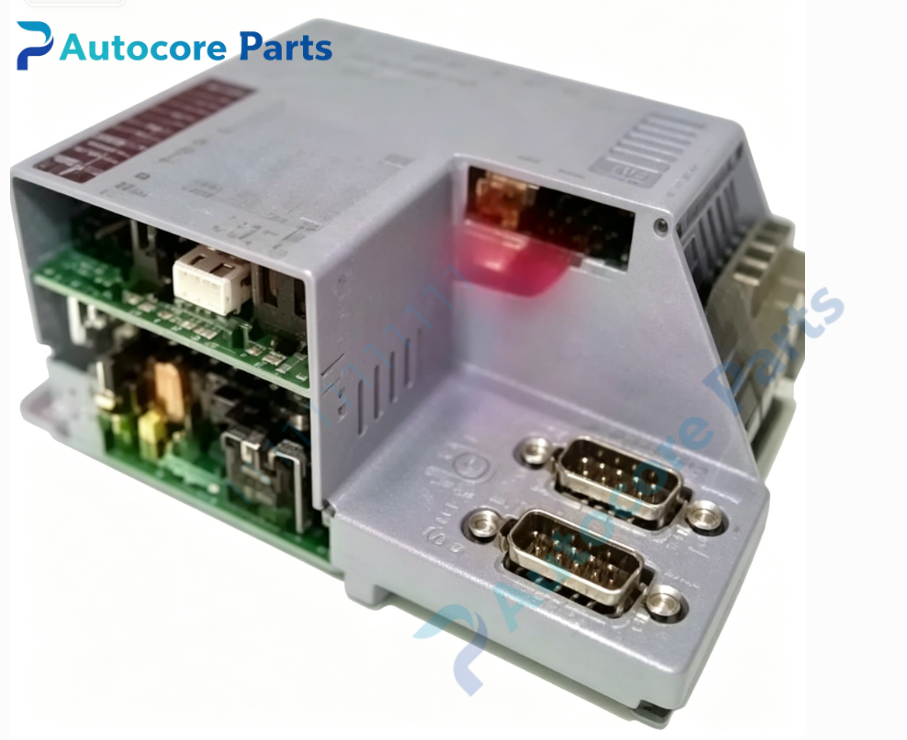

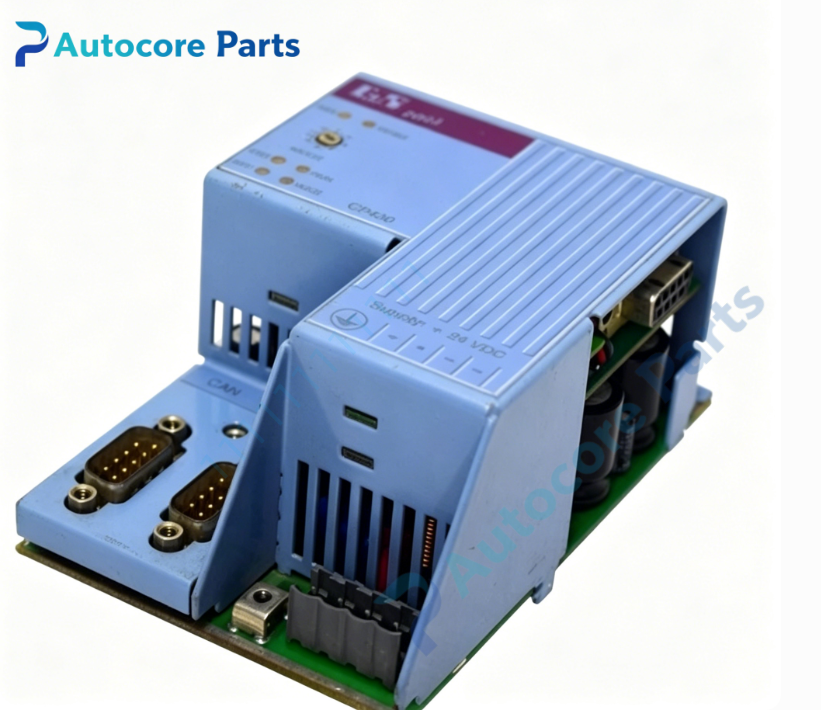

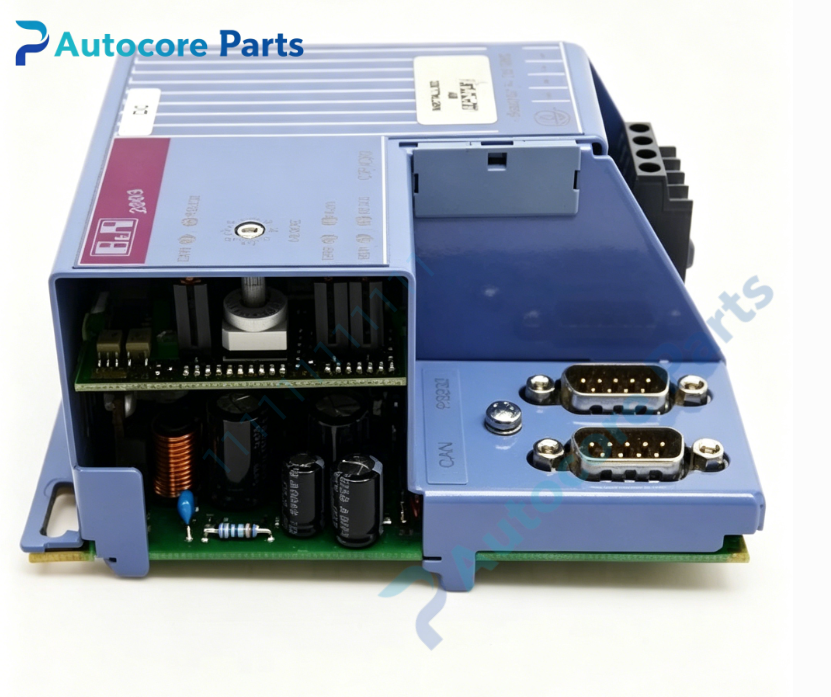

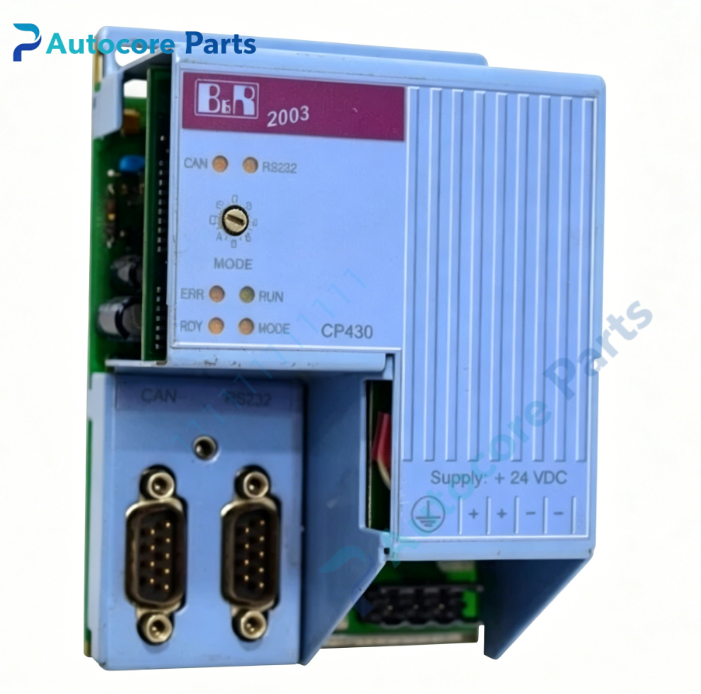

B&R 7CP430.60‑1 CPU Controller Module

Technical Specifications

Model:7CP430.60‑1

Brand:B&R

Product Type:Series2003 compact screw‑in PLC CPU controller module

Applicable System:B&R Automation Studio,Series2003 I/O system,small packaging machinery,textile equipment and general‑purpose automated machines

Memory:100 KB SRAM for user program and variables;256 KB FlashPROM for program storage

Expansion slot:4 slots for Series2003 screw‑in I/O modules;max 64 digital inputs/outputs,32 analog channels

Communication interfaces:1×RS232 DSUB‑9 for programming and peripheral connection;1×galvanic isolated CAN interface for field‑bus and remote I/O expansion

Real‑time clock:Replaceable lithium backup battery for RTC and variable data retention after power‑off

Power supply:24VDC SELV input;typical power consumption 7W,supplied via Series2003 base holder

Status indication:Multi‑color LED for run,error and bus diagnostic status

Installation:Screw‑in plug‑in onto Series2003 base unit

Dimension:120mm45mm85mm

Weight:0.22kg

Degree of protection:IP20

Certification:CE,cULus,UKCA certification

Working temperature:‑20℃ ~ +60℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function:Central processing unit executes user control program,process local and remote I/O signals. RS232 supports program download and connection with HMI or serial peripherals. Isolated CAN bus realizes inter‑controller communication and remote I/O expansion. Lithium battery preserves real‑time clock and retain variables during power failure.

Product Brief

7CP430.60‑1 is entry‑level compact CPU of B&R Series2003 control system. It supports 4 local screw‑in I/O slots, suitable for small‑size automation projects with limited I/O points.

Equipped with 100KB SRAM and 256KB FlashPROM, it meets storage demand for small‑to‑medium user application. CAN channel adopts galvanic isolation design to enhance anti‑interference performance in noisy industrial environment. RS232 port is mainly used for programming debugging and connecting serial HMI devices. Onboard replaceable lithium battery keeps system time and retain variables after power‑off.

This is legacy EOL discontinued spare part,widely used for maintenance and hardware replacement of old‑generation Series2003 automation equipment. Before purchase,please confirm base holder compatibility and program memory requirement. ESD anti‑static protection shall be performed during installation,hot‑swap under powered‑on state is prohibited.
