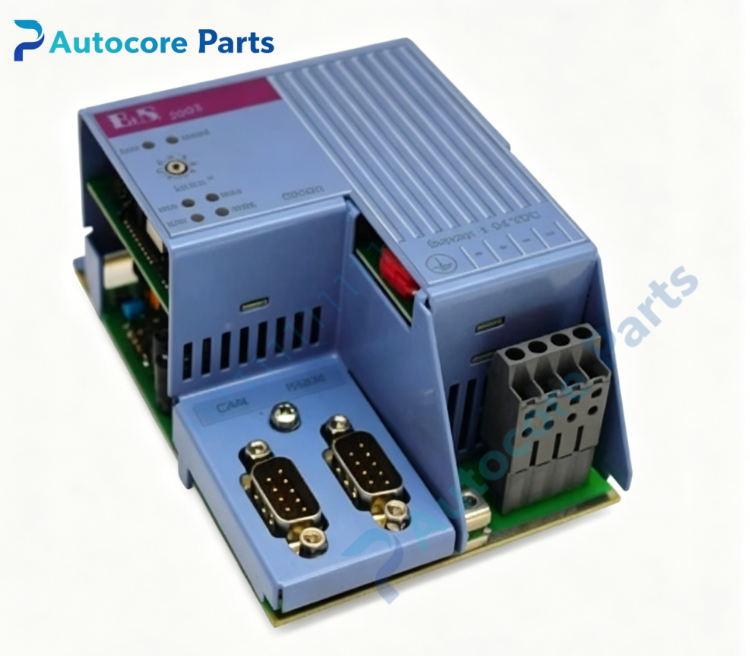

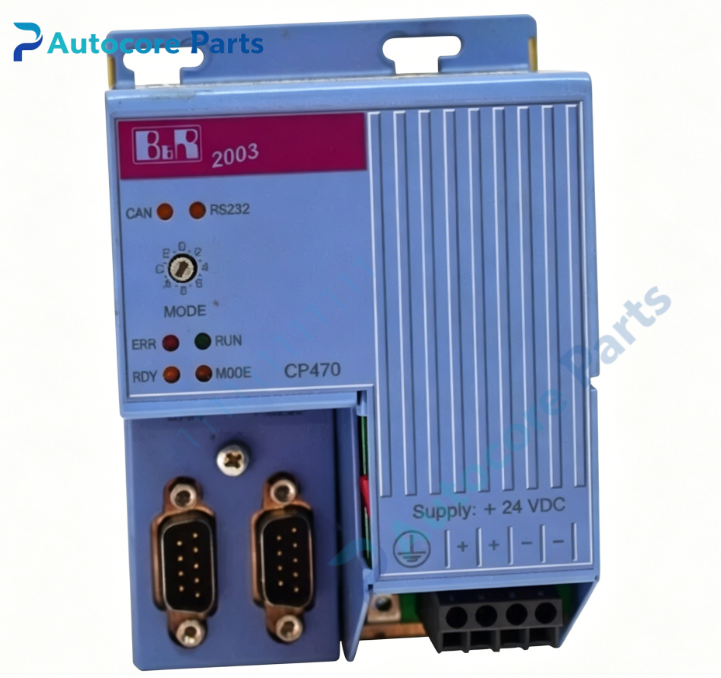

B&R 7CP470.60‑2 CPU Controller Module

Technical Specifications

Model:7CP470.60‑2

Brand:B&R

Product Type:Series2003 medium‑performance screw‑in PLC CPU controller module

Applicable System:B&R Automation Studio,Series2003 I/O system,packaging machinery,printing equipment and medium‑complex automated machines

Memory:350 KB SRAM for user program and retain variables;512 KB FlashPROM for non‑volatile program storage

I/O capacity:Max 128 digital inputs/outputs,max 64 analog channels via local and remote CAN‑bus expansion

Communication interfaces:1×RS232 DSUB‑9 for programming,debugging and serial peripheral connection;1×galvanic isolated CAN interface for multi‑controller networking and remote I/O expansion

Real‑time clock:Replaceable 3V 950mAh lithium backup battery for RTC and retain variable preservation after power‑off,battery status cyclic diagnosis

Power supply:24VDC SELV input;typical power consumption 14W,supplied via Series2003 base holder

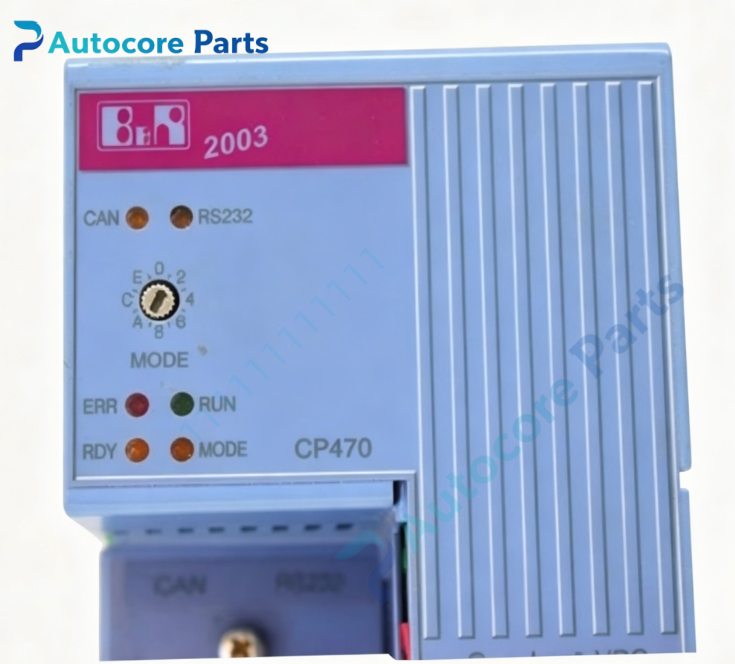

Status indication:Multi‑color LED for run,error and bus diagnostic status

Installation:Screw‑in plug‑in onto Series2003 base unit

Dimension:127mm76mm76mm

Weight:0.30kg

Degree of protection:IP20

Certification:CE,cULus,UKCA certification

Working temperature:‑20℃ ~ +60℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function:Medium‑grade central processing unit executes automation application program,process local and remote I/O signals. Isolated CAN bus supports multi‑station networking and distributed I/O expansion. RS232 realizes program download and connection with serial HMI peripherals. Lithium battery preserves real‑time clock and retain variables during power‑failure.

Product Brief

7CP470.60‑2 is medium‑performance CPU of B&R Series2003 control system. Compared with entry‑level 7CP430.60‑1,it provides larger SRAM and FlashPROM memory,suitable for medium‑complex automation projects with more logic and recipe data.

CAN channel adopts galvanic isolation design to suppress ground‑loop interference in noisy industrial workshop. It supports multi‑CPU networking and remote I/O expansion via CAN bus. RS232 port is used for program download,debugging and connecting serial HMI or barcode devices. Onboard battery monitoring function can early warn low‑battery risk.

This is legacy EOL discontinued spare part,widely used for maintenance and hardware replacement of old‑generation Series2003 automation production lines. Before purchase,please confirm base holder compatibility and user‑program memory requirement. ESD anti‑static protection shall be performed during installation,hot‑swap under powered‑on state is prohibited.
