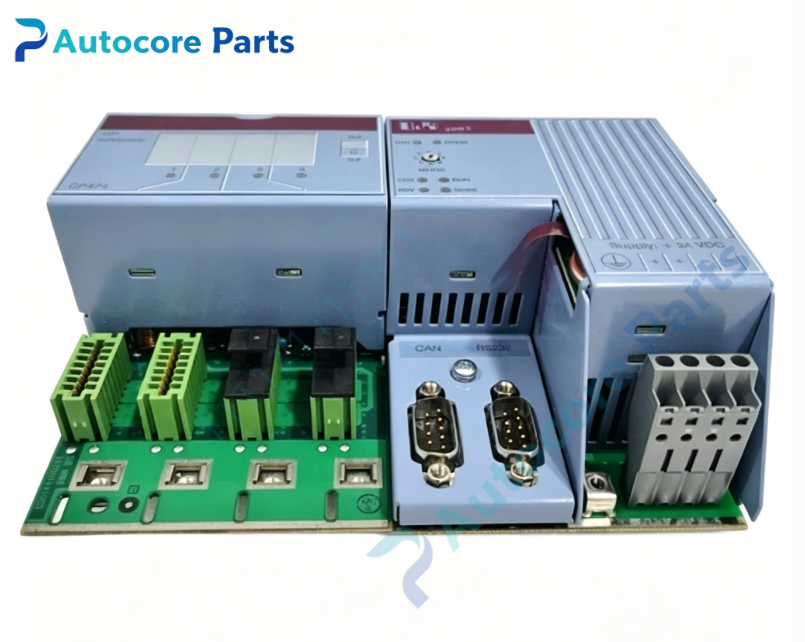

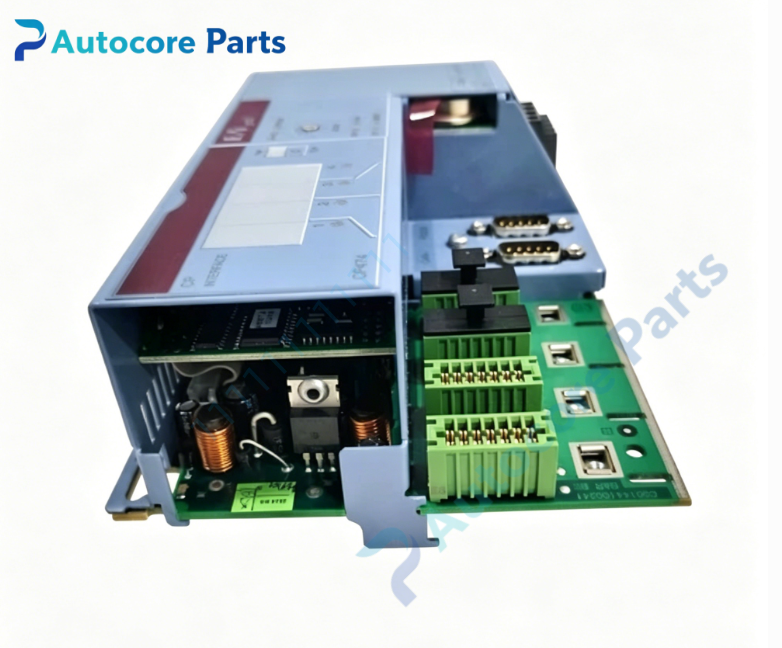

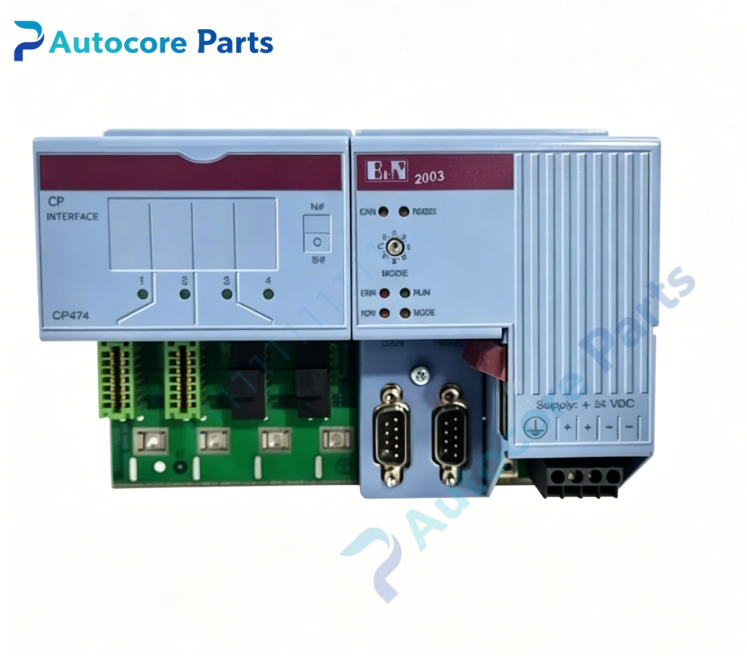

B&R 7CP474.60‑2 CPU Controller Module

Technical Specifications

Model:7CP474.60‑2

Brand:B&R

Product Type:Series2003 high‑performance screw‑in PLC CPU controller module

Applicable System:B&R Automation Studio,Series2003 I/O system,packaging machinery,printing equipment and medium‑large‑scale automated production lines with high‑speed signal requirements

Memory:750 KB SRAM for user program and retain variables;512 KB FlashPROM for non‑volatile program storage

Hardware Feature:Integrated TPU time‑processor unit,supports microsecond‑level high‑speed signal processing with matching TPU‑capable I/O modules

I/O capacity:4 local screw‑in I/O slots;max 208 digital inputs/outputs,max 80 analog channels via local and remote CAN‑bus expansion

Communication interfaces:1×RS232 DSUB‑9 for programming,debugging and serial peripheral connection;1×galvanic isolated CAN interface for multi‑controller networking and remote I/O expansion

Real‑time clock:Replaceable 3V 950mAh lithium backup battery for RTC and retain variable preservation after power‑off,battery status cyclic diagnosis

Power supply:24VDC SELV input;typical power consumption 12.6W,supplied via Series2003 base holder

Status indication:Multi‑color LED for run,error and bus diagnostic status

Installation:Screw‑in plug‑in onto Series2003 base unit

Dimension:127mm76mm102mm

Weight:0.53kg

Degree of protection:IP20

Certification:CE,cULus,UKCA certification

Working temperature:‑20℃ ~ +60℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function:High‑performance central processing unit executes complex automation application program. TPU hardware realizes microsecond‑level fast signal response for motion‑related logic. Isolated CAN bus supports multi‑station networking and large‑scale distributed I/O expansion. RS232 realizes program download and connection with serial HMI peripherals. Lithium battery preserves real‑time clock and retain variables during power‑failure.

Product Brief

7CP474.60‑2 is high‑performance CPU of B&R Series2003 control system. Compared with 7CP474.60‑1,it upgrades SRAM memory to 750KB and integrates TPU time‑processor unit for high‑speed event handling, suitable for medium‑large automation projects with complex logic and fast‑response requirements.

CAN channel adopts galvanic isolation design to suppress ground‑loop interference in noisy industrial workshop. It supports multi‑CPU networking and remote I/O expansion via CAN bus. RS232 port is used for program download,debugging and connecting serial HMI or barcode devices. Onboard battery monitoring function can early warn low‑battery risk.

This is legacy EOL discontinued spare part,widely used for maintenance and hardware replacement of old‑generation Series2003 automation production lines. Before purchase,please confirm base holder compatibility,TPU‑related I/O matching and user‑program memory requirement. ESD anti‑static protection shall be performed during installation,hot‑swap under powered‑on state is prohibited.
