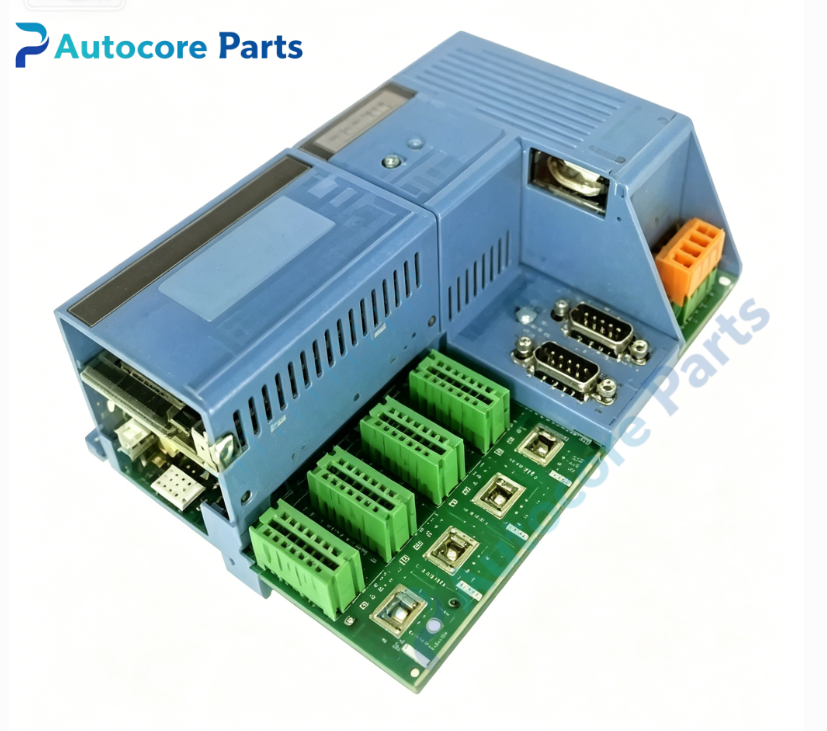

B&R 7CP476.60‑1 CPU Controller Module

Technical Specifications

Model:7CP476.60‑1

Brand:B&R

Product Type:Series2003 high‑memory screw‑in PLC CPU controller module

Applicable System:B&R Automation Studio,Series2003 I/O system,packaging machinery,printing presses and complex automated production lines with large program storage demand

Memory:750 KB SRAM for user logic and retain variables;1.5 MB FlashPROM for non‑volatile program and recipe storage

I/O capacity:4 local screw‑in I/O slots;max 208 digital inputs/outputs,max 80 analog channels via local and remote CAN‑bus expansion

Communication interfaces:1×RS232 DSUB‑9 for programming download and serial peripheral connection;1×galvanic isolated CAN interface,support CANopen,for multi‑controller networking and distributed remote I/O expansion

Real‑time clock:Replaceable 3V lithium backup battery for RTC time and retain‑variable preservation,battery status cyclic diagnosis

Power supply:24VDC SELV input;typical power consumption 12.5W,power supplied through Series2003 base holder

Status indication:Multi‑color LED indicators for run status,system fault and bus communication diagnosis

Installation:Screw‑in plug‑in onto Series2003 base unit

Dimension:127mm76mm102mm

Weight:0.52kg

Degree of protection:IP20

Certification:CE,cULus,UKCA,Class I Div2 hazardous‑location certification

Working temperature:‑20℃ ~ +60℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function:High‑memory central processing unit executes complex automation application programs. Larger FlashPROM capacity supports storing big‑size application and mass recipe data. Isolated CAN bus realizes multi‑station networking and distributed I/O expansion. RS232 completes program debugging and serial device connection. Lithium battery keeps real‑time clock and retain variables during power‑failure.

Product Brief

7CP476.60‑1 is high‑memory‑variant CPU of B&R Series2003 control system. Compared with 7CP474 series,it upgrades FlashPROM to 1.5MB,ideal for projects requiring large program and recipe storage.

CAN interface adopts galvanic isolation to suppress ground‑loop interference in noisy industrial workshop. It supports CANopen protocol,can connect remote I/O,variable‑frequency drives and CAN‑compatible field devices. RS232 port is used for program download,online monitoring and serial HMI connection. Screw‑in plug‑in mechanical structure enables quick replacement on Series2003 backplane base unit. Built‑in battery monitoring function reminds users of low‑battery risk in advance.

This is legacy EOL discontinued spare part,widely applied for maintenance and hardware replacement of old‑generation Series2003 automation production lines. Before purchase,please confirm base holder compatibility and application memory requirement. ESD anti‑static measures must be taken during installation,hot‑swap under powered‑on state is prohibited.
