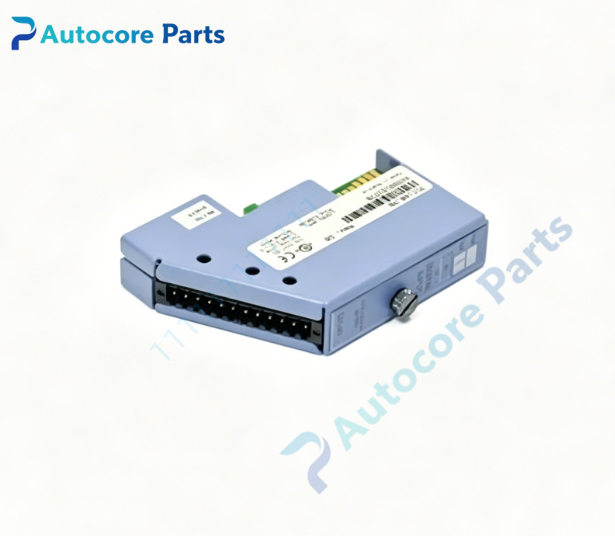

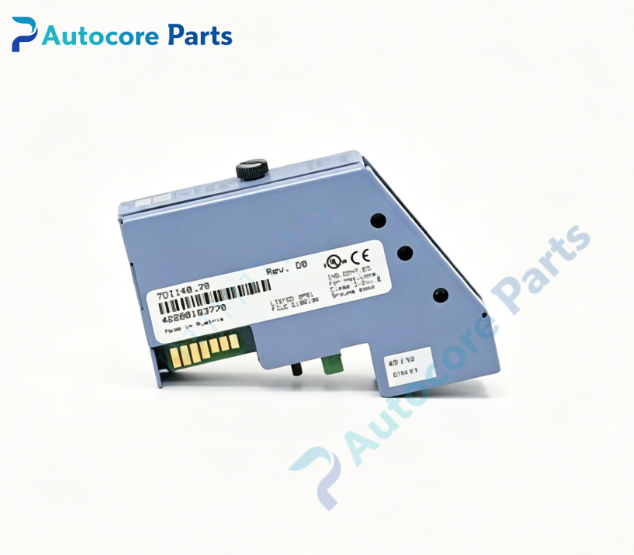

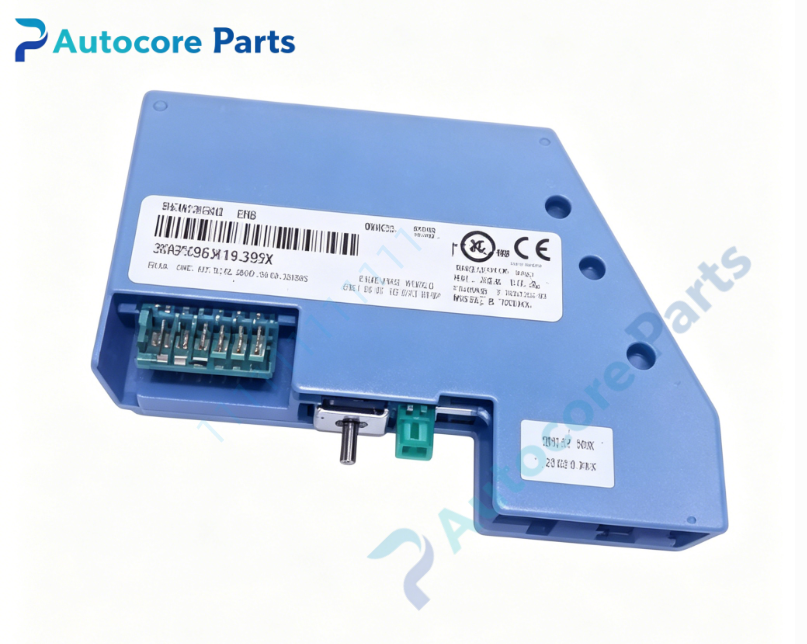

B&R 7DI140.70 Digital Input Module

Technical Specifications

Model:7DI140.70

Brand:B&R

Product Type:Series2003 screw‑in high‑speed digital input module

Applicable System:B&R Automation Studio,Series2003 CPU system,motion control,packaging machinery,position detection and frequency‑measurement applications

Input Channels:10 independent 24 VDC sink(NPN) digital input channels

High‑speed Function:2 channels for event‑counter / direction‑dependent position detection;4 channels configurable for high‑speed gate signal and frequency measurement,max 50 kHz input frequency

Input Voltage:10.5‑30 VDC nominal 24 VDC

Input Current:approx 4 mA per channel

Filter:Software‑configurable input filter for signal debounce

Isolation:Galvanic isolation between field side and controller backplane

Power supply:Power supplied via Series2003 backplane,24VDC SELV

Terminal:Terminal block 7TB712.9 / 7TB712.91 ordered separately

Installation:Screw‑in plug‑in onto Series2003 base holder

Dimension:120mm34mm23mm

Weight:0.13kg

Degree of protection:IP20

Certification:CE,cULus,UKCA,Class I Div2 hazardous‑location certification

Working temperature:‑20℃ ~ +60℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function:Collect standard 24VDC switch signals from proximity sensors,limit switches and push‑buttons. Realize high‑speed event counting,incremental encoder position capture and frequency measurement for motion‑related tasks. Galvanic isolation improves anti‑interference performance in noisy industrial workshop environment. Configurable filter suppresses contact bounce interference.

Product Brief

7DI140.70 is high‑speed digital input module of B&R Series2003 control system. Besides ordinary switch‑signal acquisition,it integrates hardware counter function to process incremental encoder and high‑speed pulse signals without occupying CPU computing resources.

Screw‑in plug‑in mechanical structure enables quick installation and replacement on Series2003 backplane base unit. Multiple channels can be independently configured via Automation Studio software for ordinary DI or high‑speed counting mode. It is widely used for position monitoring,length measurement and speed detection of packaging and automated machinery.

This is legacy EOL discontinued spare part,widely used for maintenance and hardware replacement of old‑generation Series2003 automation equipment. Before purchase,please confirm Series2003 base holder compatibility and high‑speed pulse frequency matching. ESD anti‑static protection shall be performed during installation,hot‑swap under powered‑on state is prohibited. Terminal block must be purchased separately.
