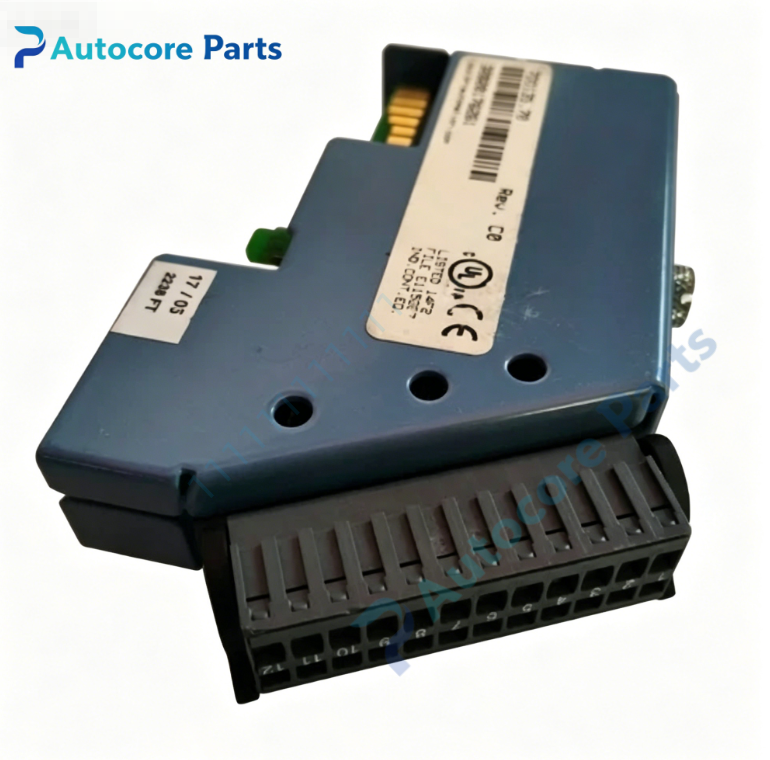

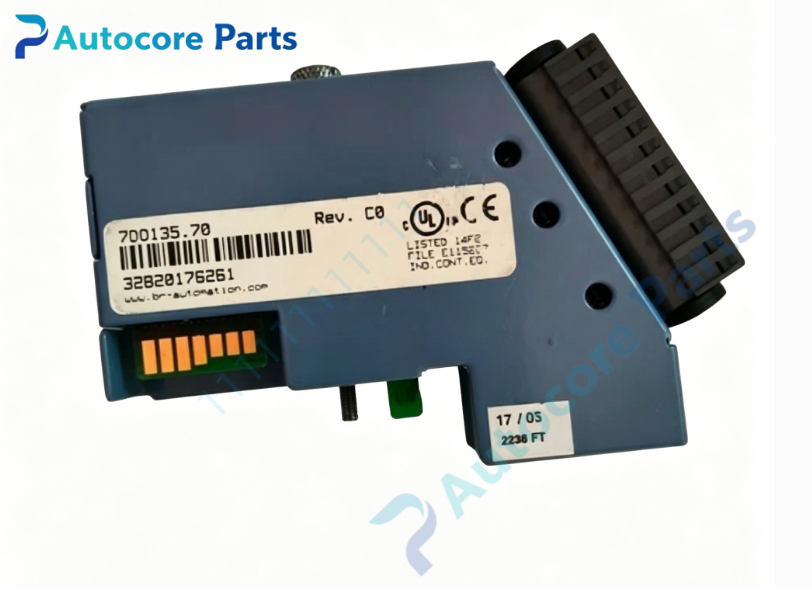

B&R 7DO135.70 Digital Output Module

Technical Specifications

Model:7DO135.70

Brand:B&R

Product Type:Series2003 screw‑in high‑speed FET digital output module

Applicable System:B&R Automation Studio,Series2003 CPU system,packaging machinery,proportional valve control,motion‑control and pulse‑modulation applications

Output Channels:4 independent FET digital output channels

Output Rating:12‑24 VDC,0.1 A per channel

Operating Modes:Standard switch on/off;PWM pulse‑width modulation with adjustable period and duty cycle;TPU hardware‑controlled high‑speed output for motion‑related tasks

Isolation:Galvanic isolation between field side and controller backplane

Diagnostic:Channel‑wise short‑circuit and load fault detection

Power supply:Power supplied via Series2003 backplane,24VDC SELV

Terminal:Terminal block 7TB712.9 / 7TB712.91 ordered separately

Installation:Screw‑in plug‑in onto Series2003 base holder

Dimension:120mm34mm23mm

Weight:0.13kg

Degree of protection:IP20

Certification:CE,cULus,UKCA certification

Working temperature:‑20℃ ~ +60℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function:Convert PLC digital logic signals into 24VDC field‑level switch signals. Each channel can be configured for ordinary switching,PWM modulation or TPU high‑speed output. Suitable for driving small actuators,indicator lamps and proportional valves. Galvanic isolation enhances anti‑interference capability in noisy industrial sites. Short‑circuit diagnosis facilitates quick field fault troubleshooting.

Product Brief

7DO135.70 is B&R Series2003 four‑channel FET digital output module. It supports three working modes, not only general‑purpose switch output,but also PWM pulse‑width modulation and TPU hardware high‑speed output,well‑matched with TPU‑enabled Series2003 CPU for motion‑related control tasks.

Screw‑in plug‑in mechanical structure enables quick installation and replacement on Series2003 backplane base unit. Built‑in channel diagnosis function monitors short‑circuit and overload status. Galvanic isolation design reduces interference caused by field‑site noise.

This is legacy EOL discontinued spare part,widely used for maintenance and hardware replacement of old‑generation Series2003 automation equipment. Before purchase,please confirm Series2003 base holder compatibility and actuator load requirement. ESD anti‑static protection shall be performed during installation,hot‑swap under powered‑on state is prohibited. Terminal block must be purchased separately.
