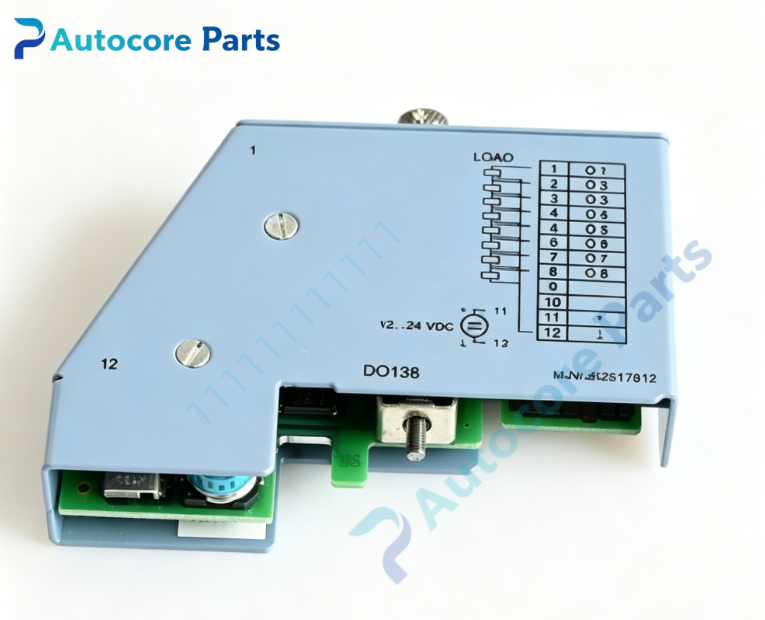

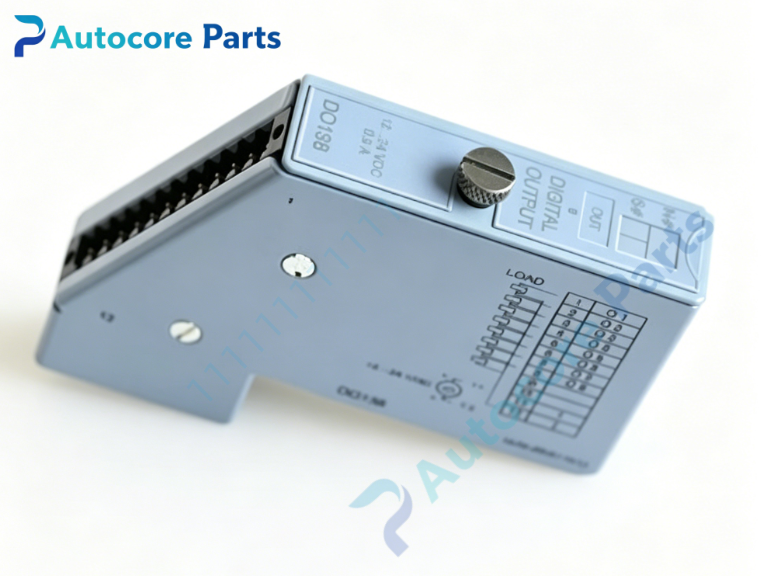

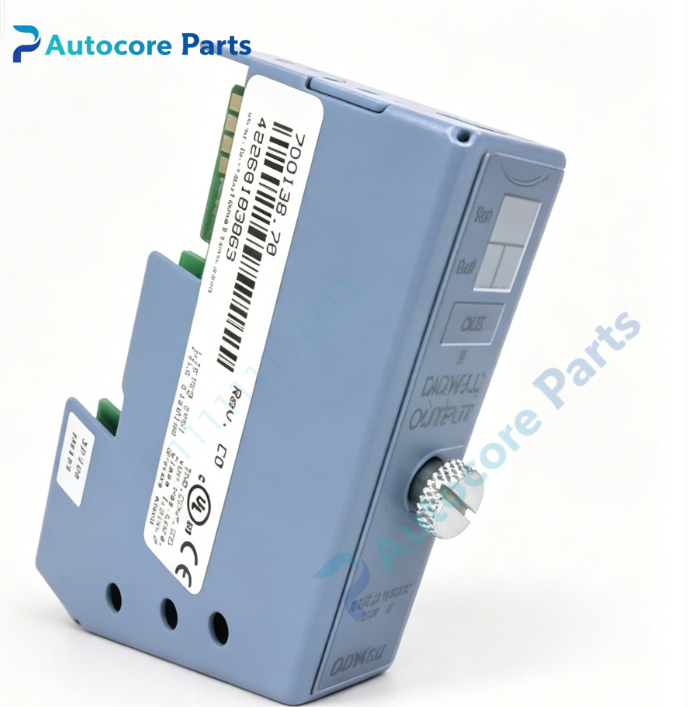

B&R 7DO138.70 Digital Output Module

Technical Specifications

Model:7DO138.70

Brand:B&R

Product Type:Series2003 screw‑in general‑purpose high‑current digital output module

Applicable System:B&R Automation Studio,Series2003 CPU system,packaging machinery,conveyor system,solenoid valve and indicator‑light control

Output Channels:8 independent FET digital output channels

Output Rating:24 VDC,0.5 A per channel

Protection:Hardware short‑circuit protection and thermal‑overload protection for each channel

Isolation:Galvanic isolation between field actuator side and controller backplane

Power supply:Power supplied via Series2003 backplane,24VDC SELV

Terminal:Terminal block 7TB712.9 / 7TB712.91 ordered separately

Installation:Screw‑in plug‑in onto Series2003 base holder

Dimension:120mm34mm23mm

Weight:0.13kg

Degree of protection:IP20

Certification:CE,cULus,UKCA,Class I Div2 hazardous‑location certification

Working temperature:‑20℃ ~ +60℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function:Convert PLC internal digital logic signals into 24VDC field‑level switch signals. 8‑channel high‑current output drives solenoid valves,relay coils and indicator lamps. Built‑in short‑circuit and thermal‑overload protection prevents module damage caused by field wiring faults. Galvanic isolation enhances anti‑interference performance in noisy industrial workshop.

Product Brief

7DO138.70 is 8‑channel high‑current digital output module of B&R Series2003 control system. Compared with 7DO135.70,it provides higher per‑channel 0.5A output current,suitable for ordinary actuators requiring larger driving capacity.

Screw‑in plug‑in mechanical structure enables quick installation and replacement on Series2003 backplane base unit. Each channel integrates short‑circuit and thermal‑overload hardware protection to improve field‑site reliability. Galvanic isolation design reduces interference risk from field‑side noise.

This is legacy EOL discontinued spare part,widely used for maintenance and hardware replacement of old‑generation Series2003 automation equipment. Before purchase,please confirm Series2003 base holder compatibility and actuator load current requirement. ESD anti‑static protection shall be performed during installation,hot‑swap under powered‑on state is prohibited. Terminal block must be purchased separately.
