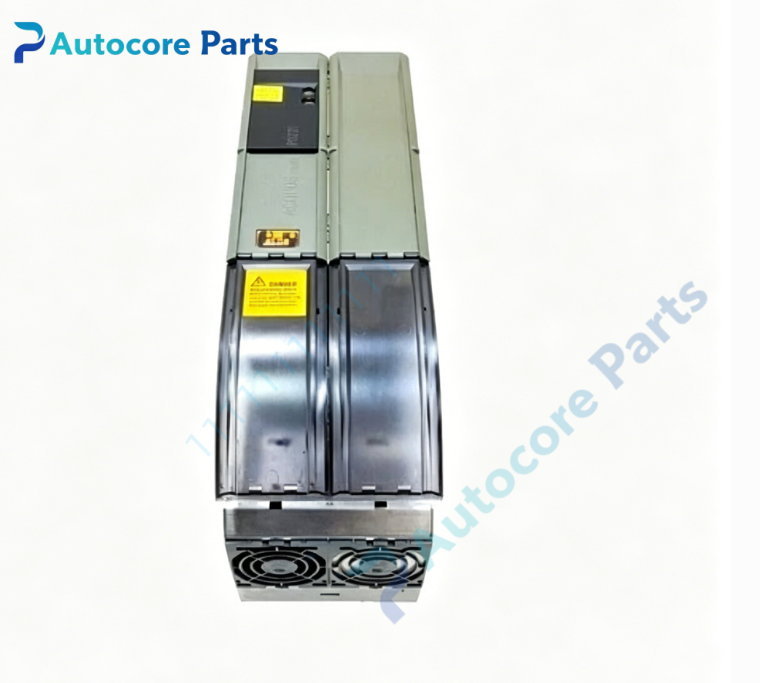

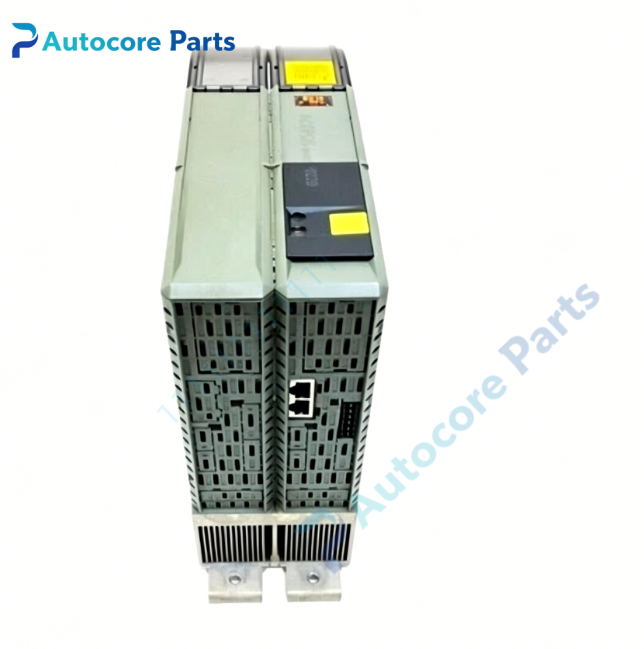

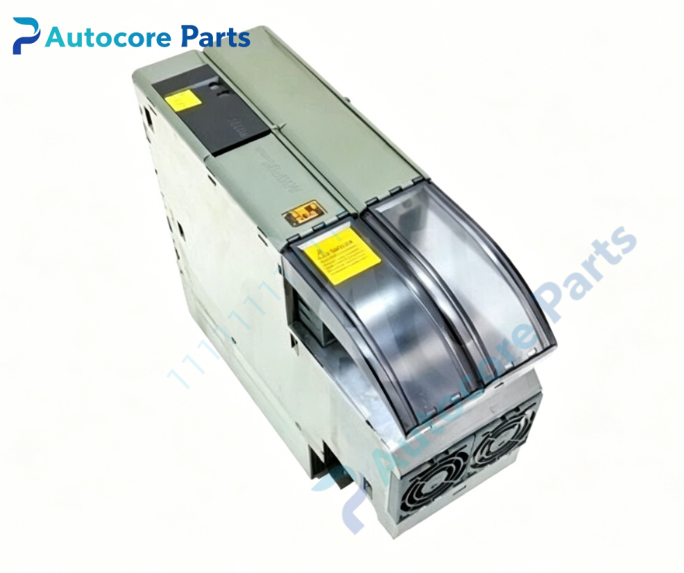

B&R 8B0P0220HW00.001‑1 Passive Power Supply Module

Technical Specifications

Model:8B0P0220HW00.001‑1

Brand:B&R

Product Type:ACOPOSmulti wall‑mount passive servo power supply module

Applicable System:B&R ACOPOSmulti multi‑axis servo drive system,packaging machinery,machine tools and general motion‑control production lines without energy regeneration requirement

Mains Input:3‑phase 380‑500 VAC ±10%,50/60 Hz;compatible with TT,TN‑S,TN‑C‑S power grid systems

Power Rating:Rated continuous power 8 kW;continuous output current 22 A;peak power up to 24 kW for short‑time operation

DC‑bus Characteristic:Nominal 750 VDC DC‑bus;max chargeable DC‑bus capacitance:14.4 mF@400VAC,10 mF@480VAC

Built‑in Function:Integrated passive motor short‑circuit brake;support DNA dynamic node allocation;external braking resistor connection terminal reserved

Auxiliary Consumption:Standby power loss approx 6 W;24VDC auxiliary power supplied by external or auxiliary supply module

Installation:Wall‑mount structure,natural air cooling;allow vertical hanging or upward horizontal mounting;horizontal standing installation forbidden;power derating required above 500 m altitude,max altitude 4000 m

Status Indication:Multi‑color LED indicators for power status,system fault and bus diagnosis

Dimension:Standard ACOPOSmulti wall‑mount module form‑factor

Weight:5.00 kg

Degree of protection:IP20

Certification:CE,cULus,UKCA,KC certification

Working temperature:5℃ ~ +55℃,power derating above 40℃

Storage temperature:‑25℃ ~ +70℃

Relative humidity:5‑85% non‑condensing,pollution degree 2

Built‑in function:Passive power supply converts three‑phase AC mains into stable 750VDC DC‑bus power for ACOPOSmulti inverter modules. Integrated passive short‑circuit brake realizes safe motor braking under fault conditions. Reserved external brake resistor interface consumes regenerative energy during axis deceleration. DNA dynamic node allocation simplifies system network configuration. Wall‑mount form provides flexible cabinet layout without relying on system backplane.

Product Brief

8B0P0220HW00.001‑1 is wall‑mount passive power supply of B&R ACOPOSmulti servo series. Compared with HC backplane version,it adopts independent wall‑mount installation,ideal for cabinet schemes that do not use system backplane.

As passive power unit,it does not support active energy feedback,needs external brake resistor to handle regenerative energy. Integrated passive motor short‑circuit brake improves equipment safety under emergency stop and fault status. DNA dynamic node allocation shortens commissioning cycle for multi‑axis projects. It matches multiple ACOPOSmulti inverter modules to constitute complete multi‑axis motion‑control system.

This is legacy spare part,widely used for maintenance and hardware replacement of old‑generation ACOPOSmulti automation equipment. Before purchase,please confirm mains voltage,total axis power consumption and external brake‑resistor matching. ESD anti‑static protection shall be performed during installation,hot‑swap under powered‑on state is prohibited. Relevant terminal accessories sold separately.
