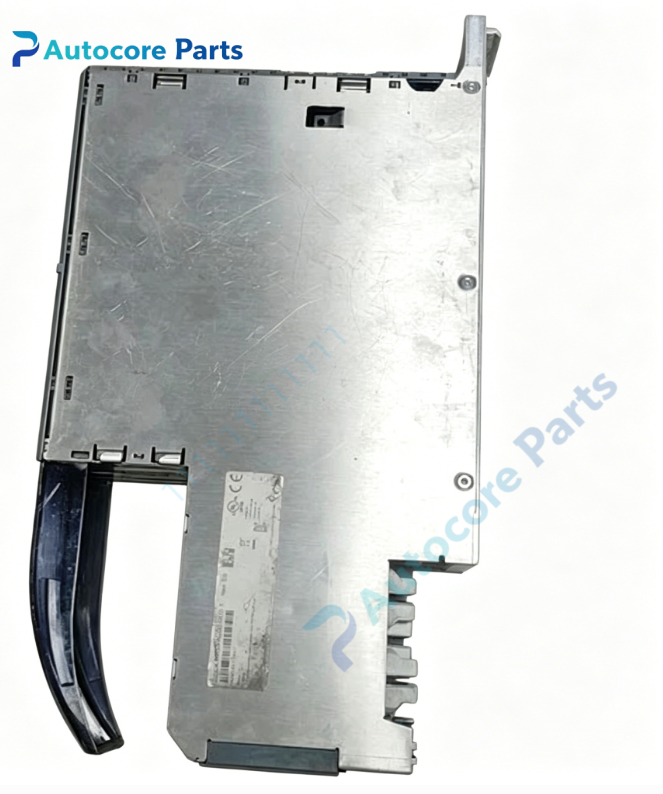

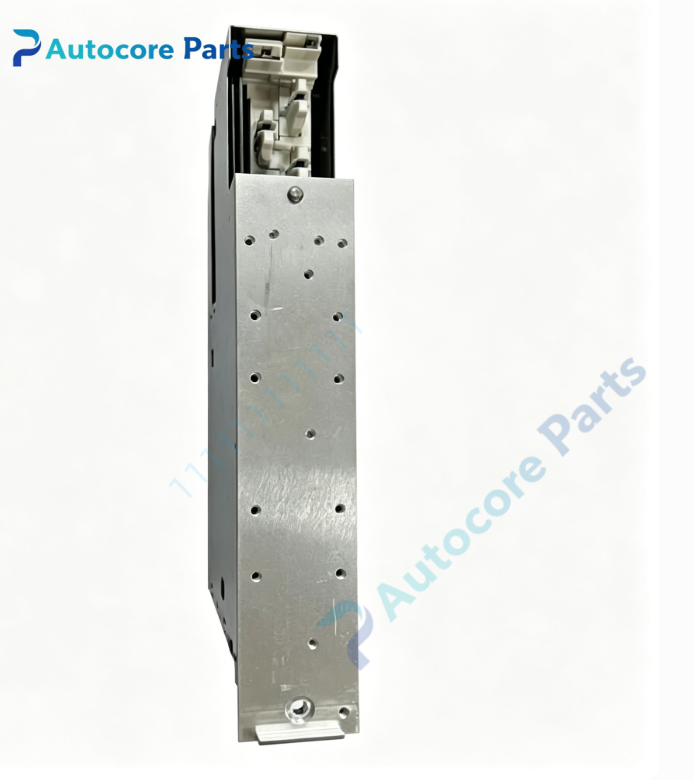

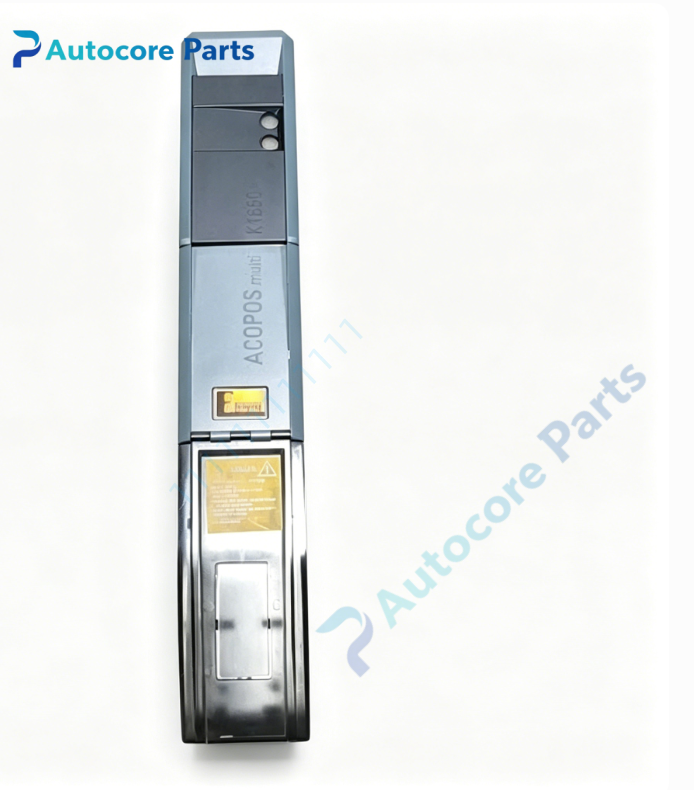

B&R 8B0K1650HC00.000‑1 Capacitor Module

Technical Specifications

Model:8B0K1650HC00.000‑1

Brand:B&R

Product Type:ACOPOSmulti backplane‑type high‑voltage DC‑bus capacitor module

Applicable System:B&R ACOPOSmulti multi‑axis servo drive system,machine tools,packaging machinery,equipment with large DC‑bus fluctuation and energy‑buffering requirements

DC‑bus parameter:Nominal voltage 750 VDC;DC‑bus capacitance 1650 µF;integrated charging circuit for safe pre‑charge

Auxiliary power:24‑25 VDC auxiliary supply;max power consumption 3 W,supplied by system backplane

Installation & Cooling:Backplane plug‑in structure;support cold‑plate cooling or feed‑through mounting;vertical hanging installation allowed,horizontal standing installation prohibited

Mechanical dimension:Width 53 mm,Height 317 mm;Depth 212 mm(cold‑plate),209 mm(feed‑through)

Weight:2.70 kg

Degree of protection:IP20

Certification:CE,cULus,UKCA,KC certification

Working temperature:5℃ ~ +55℃;derating required for altitude above 500 m,max allowable altitude 4000 m

Storage temperature:‑25℃ ~ +70℃

Relative humidity:5‑85% non‑condensing during operation,pollution degree 2

Built‑in function:High‑voltage capacitor module provides DC‑bus energy buffering for ACOPOSmulti servo system. It suppresses DC‑bus voltage fluctuation during acceleration,deceleration and regenerative feedback. Built‑in charging circuit realizes safe bus pre‑charge. Cold‑plate / feed‑through cooling structure adapts to high‑power servo cabinet layout. Backplane plug‑in design enables quick module replacement for on‑site maintenance.

Product Brief

8B0K1650HC00.000‑1 is backplane‑installed capacitor module of B&R ACOPOSmulti servo series. It is used for expanding DC‑bus capacitance,improving system stability for multi‑axis frequent start‑stop and regenerative energy feedback scenarios.

Different from wall‑mount HW version,this HC variant adopts backplane plug‑in form and supports cold‑plate and feed‑through heat dissipation,suitable for high‑power density cabinet layout. Integrated charging circuit avoids impact current when system powers‑on. It cooperates with power supply and inverter modules to constitute complete multi‑axis servo system.

This is legacy spare part,widely applied for maintenance and hardware replacement of old‑generation ACOPOSmulti motion‑control equipment. Before purchase,please confirm backplane compatibility and system DC‑bus capacitance requirement. ESD anti‑static protection shall be performed during installation,hot‑swap under powered‑on state is prohibited.
