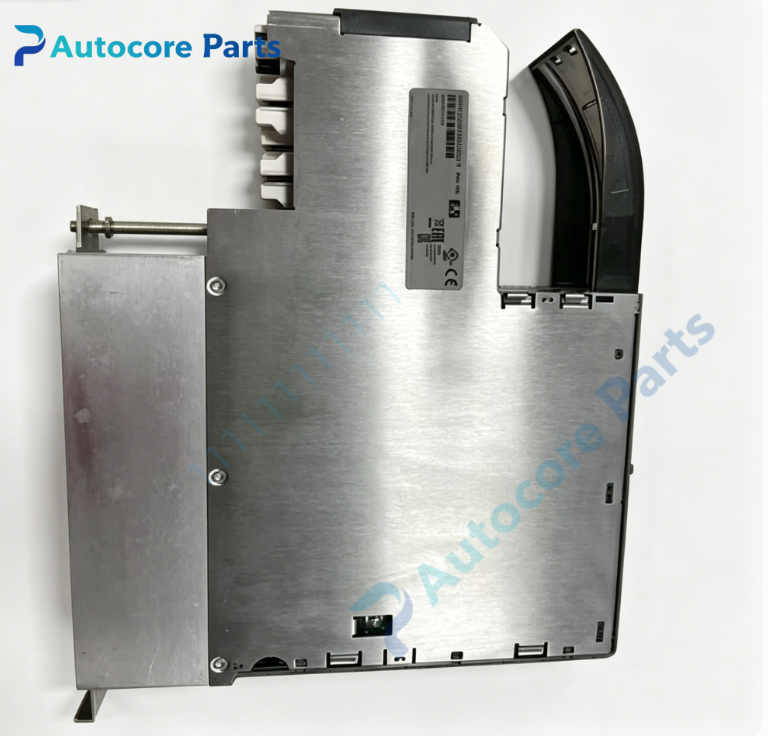

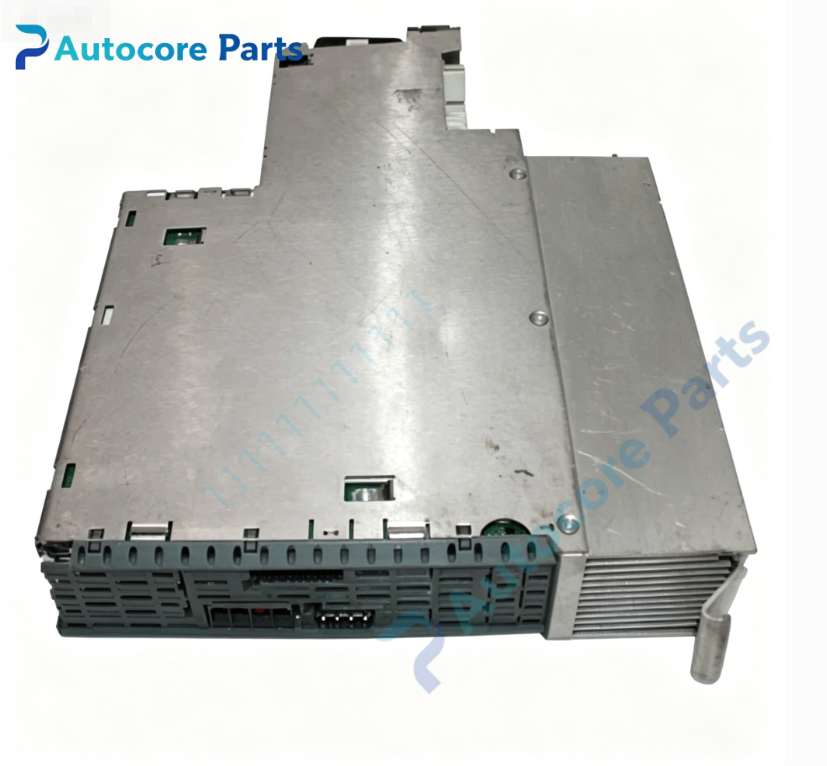

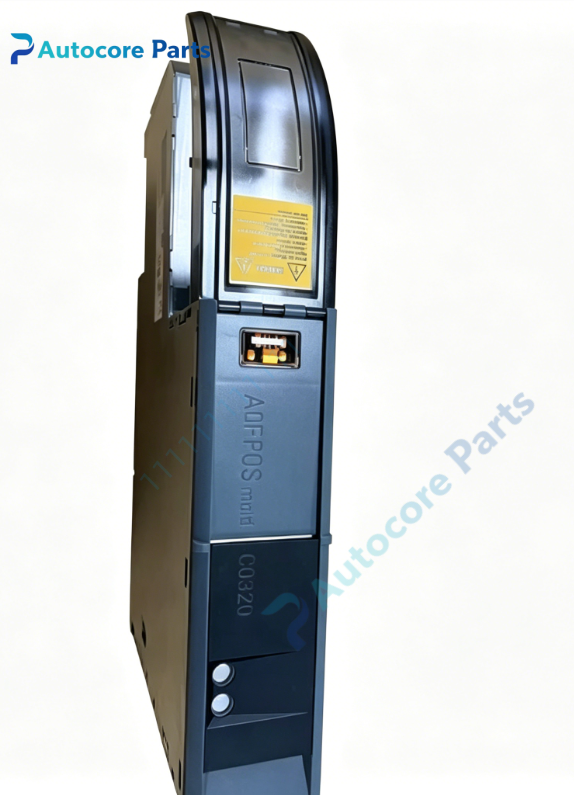

B&R 8B0C0320HW00.002‑1 Auxiliary Supply Module

Technical Specifications

Model:8B0C0320HW00.002‑1

Brand:B&R

Product Type:ACOPOSmulti high‑power wall‑mount auxiliary supply module

Applicable System:B&R ACOPOSmulti multi‑axis servo drive system,machine tools,packaging machinery and large‑scale motion‑control production lines with high 24VDC power demand

DC‑bus input:Nominal 750 VDC;continuous operating range 260‑800 VDC;full‑power range 315‑800 VDC;DC‑bus capacitance 220 nF

Power rating:Max continuous output power 800 W;max power consumption 880 W;power dissipation 22‑80W according to load rate

24VDC output:32A continuous current;315‑800VDC bus:24VDC ±6%;260‑315VDC bus:output follows bus voltage proportional scaling

Protection:Built‑in overload,short‑circuit,reverse‑voltage and overtemperature multi‑layer hardware protection;support parallel operation of multiple identical modules for power expansion

Installation:Wall‑mount structure,natural cooling;derating required above 500 m altitude

Status indication:LED indicators for power supply,running status and fault diagnosis

Dimension:317 mm height ×53.5 mm width ×263 mm depth

Weight:3.20 kg

Degree of protection:IP20

Certification:CE,cULus,UKCA,KC certification

Working temperature:0℃ ~ +55℃(no derating);power derating for higher ambient temperature and high altitude

Storage temperature:‑25℃ ~ +70℃

Relative humidity:5‑85% non‑condensing,pollution degree 2

Built‑in function:High‑power auxiliary power unit takes energy from high‑voltage DC‑bus and converts to stable 24VDC power. It supplies control logic,motor brakes,sensors and external field peripherals for ACOPOSmulti servo system. Parallel‑capable design realizes flexible power expansion for large‑scale multi‑axis projects. Comprehensive hardware protection improves system stability against field wiring faults. Wall‑mount mechanical design provides flexible cabinet layout without backplane dependency.

Product Brief

8B0C0320HW00.002‑1 is high‑power wall‑mount auxiliary supply of B&R ACOPOSmulti servo family. Compared with 8B0C0160HW00.001‑1,it upgrades output capacity to 800W /32A,suitable for multi‑axis machines with heavy 24VDC load consumption.

Module draws energy directly from 750VDC DC‑bus,no need for large external 24VDC power supply. Multiple same modules can be paralleled to increase total output power. Complete protection mechanism prevents damage caused by short‑circuit,overload and over‑temperature. LED status lights support fast on‑site fault locating.

This is legacy spare part,widely used for maintenance and hardware replacement of old‑generation ACOPOSmulti multi‑axis motion‑control equipment. Before purchase,please confirm total 24VDC load power and DC‑bus voltage range. ESD anti‑static protection shall be performed during installation. Matching terminal blocks are required for commissioning。
