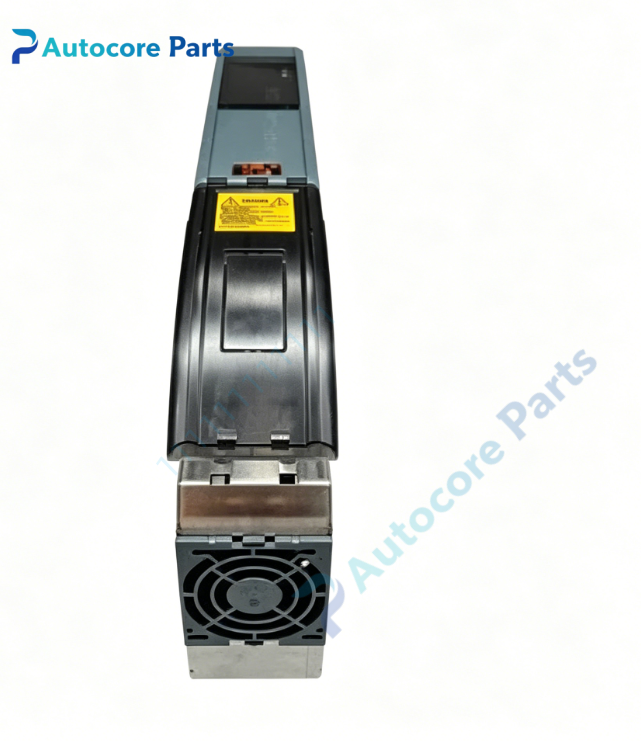

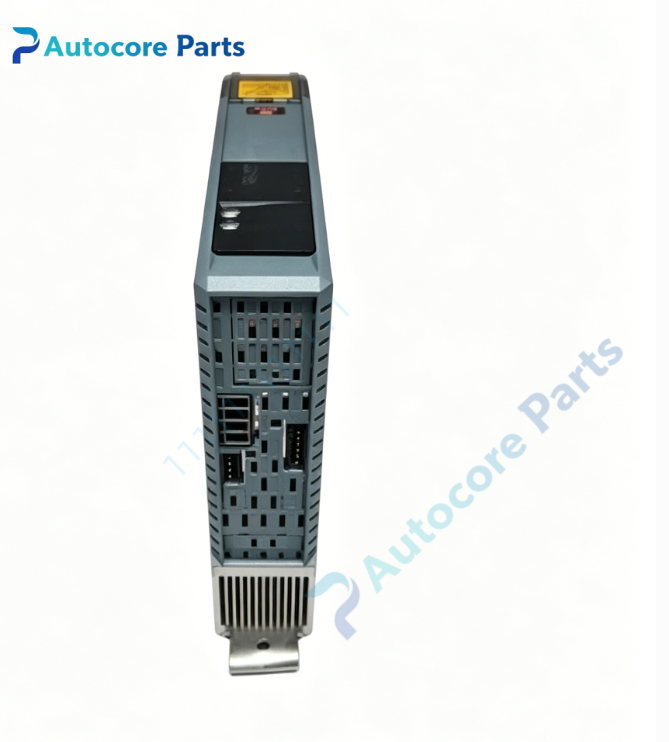

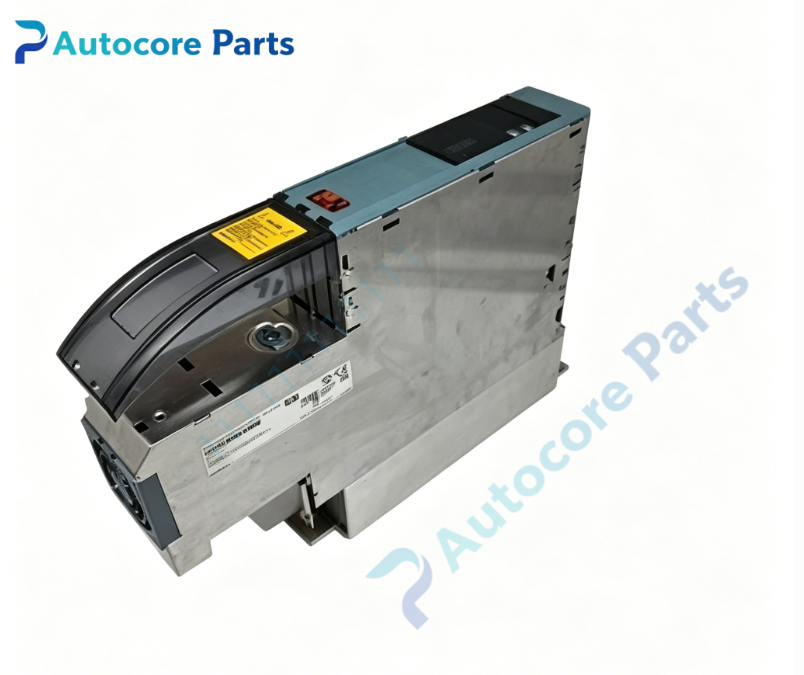

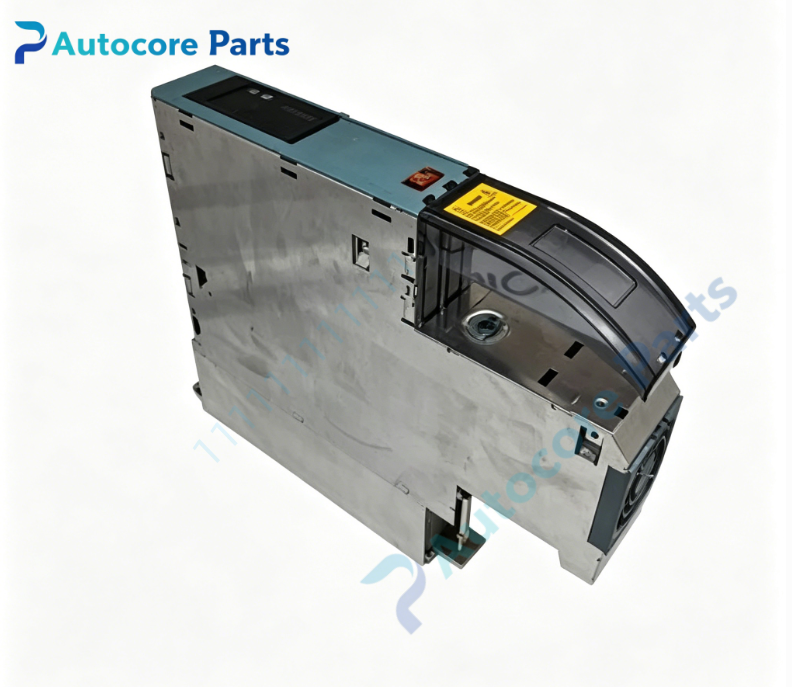

B&R 8B0C0160HW00.001‑1 Auxiliary Supply Module

Technical Specifications

Model:8B0C0160HW00.001‑1

Brand:B&R

Product Type:ACOPOSmulti wall‑mount auxiliary power supply module

Applicable System:B&R ACOPOSmulti multi‑axis servo drive system,packaging machinery,machine tools and complex motion‑control production lines

DC‑bus input:Nominal 750 VDC,continuous operating range 260‑800 VDC;full‑power range 315‑800 VDC

Power rating:Max continuous power 445 W;power dissipation:22W‑45W depends on load rate

Auxiliary output:Regulated 24 VDC ±6% auxiliary power for drive internal logic,sensors and brake peripherals

Protection:Built‑in electronic overload,short‑circuit and feedback reverse‑voltage protection,automatic reset function

Installation:Wall‑mount structure,vertical or horizontal upward mounting,unsuitable for horizontal standing installation

Status indication:LED indicators for power on,fault and module diagnostic status

Dimension:Standard ACOPOSmulti module form‑factor

Weight:0.40kg

Degree of protection:IP20

Certification:CE,cULus,UKCA certification

Working temperature:5℃ ~ +55℃;power derating required above 500 m altitude

Storage temperature:‑25℃ ~ +70℃

Relative humidity:5‑85% non‑condensing,pollution degree 2

Built‑in function:Generates stable 24VDC auxiliary power directly from high‑voltage DC bus for ACOPOSmulti drive system. Supplies power for drive control logic,sensor circuits,motor brake coils and field‑side small‑size peripherals. Integrated multi‑layer protection circuit prevents module damage caused by short‑circuit and overload fault. Wall‑mount mechanical structure offers flexible cabinet layout scheme without relying on backplane base unit

Product Brief

8B0C0160HW00.001‑1 is wall‑mount variant auxiliary power module of B&R ACOPOSmulti servo system. Different from backplane‑plug‑in HC‑version,it adopts independent wall‑mount installation mode,suitable for cabinet layout that cannot use system backplane.

It takes energy from high‑voltage DC bus and converts into stable 24VDC auxiliary power,which avoids extra external 24VDC power supply for drive system. Multiple electronic protection functions improve reliability for dynamic motion‑control occasions. It is widely matched with ACOPOSmulti power supply and inverter modules for multi‑axis motion‑control projects.

This is legacy spare part,widely used for maintenance and hardware replacement of old‑generation B&R multi‑axis servo automation equipment. Before purchase,please confirm DC‑bus voltage range and total auxiliary power consumption. ESD anti‑static protection shall be performed during installation.
