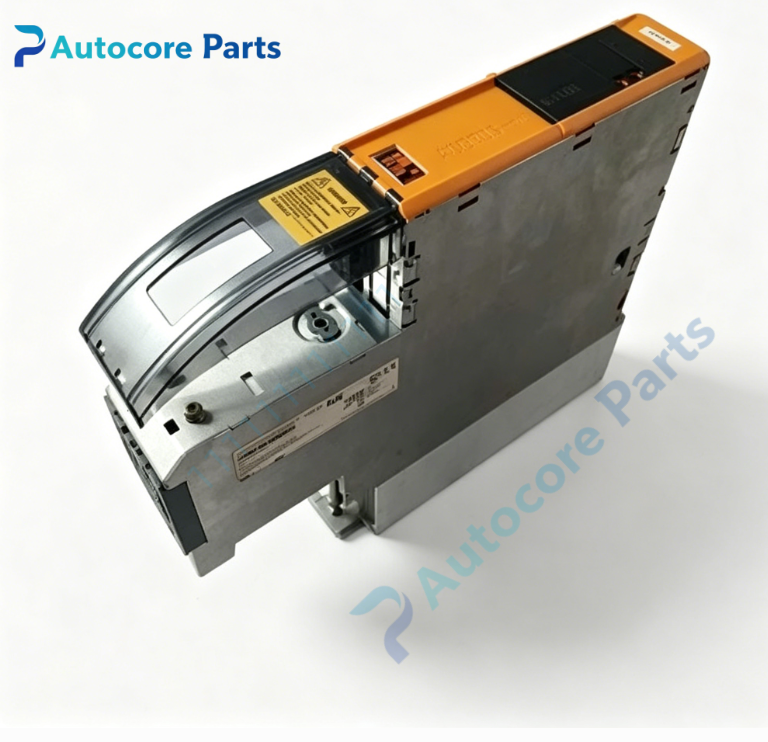

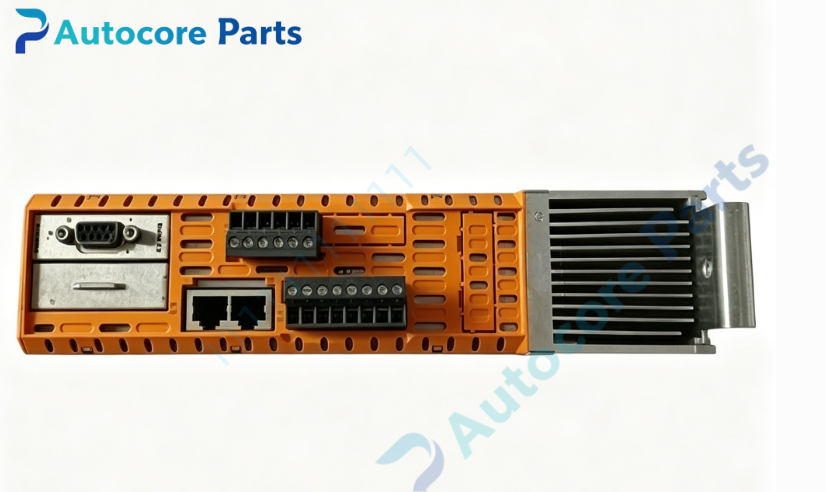

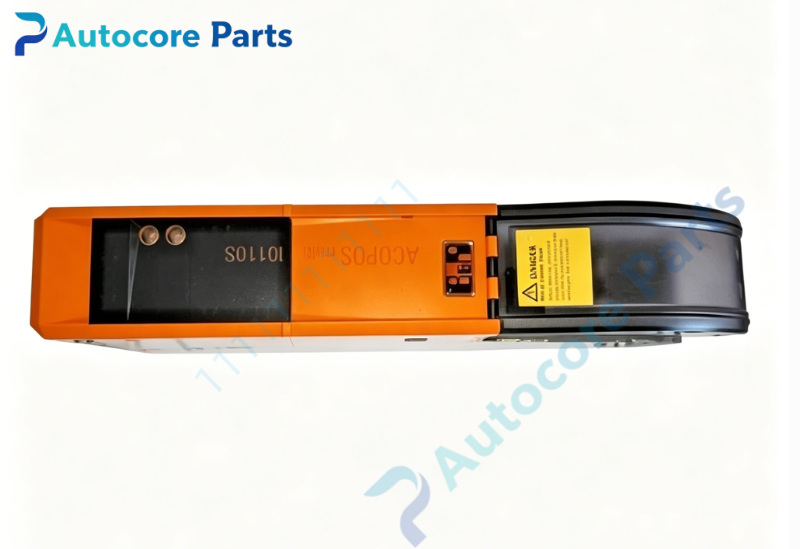

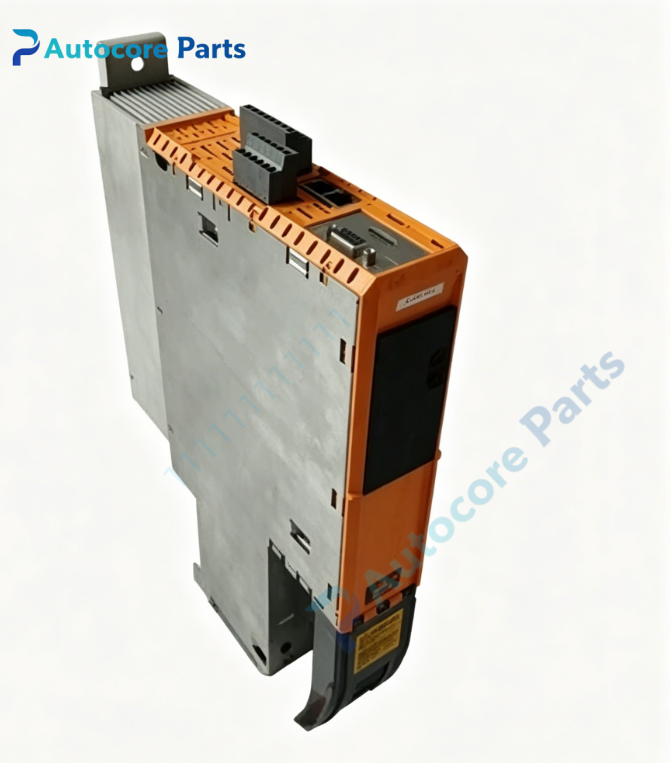

B&R 8BVI0110HWS0.000‑1 Inverter Module

Technical Specifications

Model:8BVI0110HWS0.000‑1

Brand:B&R

Product Type:ACOPOSmulti cabinet‑mount single‑axis high‑power servo inverter module

Applicable System:B&R ACOPOSmulti multi‑axis servo system,machine tools,packaging machinery,material handling equipment,high‑power single‑axis motion‑control production lines

DC‑bus:Nominal 750 VDC;continuous power consumption 11.2 kW

Output Rating:Single independent servo axis;continuous effective current 15.1 A;rated continuous power 11 kW;short‑time peak current 37.7 A;support 5/10/20 kHz switching frequency,current derating required under high switching frequency and high altitude above 500 m;max output frequency 598 Hz

Auxiliary Supply:24‑25 VDC auxiliary power input;power consumption varies with expansion‑slot and brake peripheral load

Safety Function:Integrated STO Safe Torque‑Off functional safety;built‑in safe stop and uncontrolled stop functions

Expansion Hardware:2 internal slots for ACOPOSmulti plug‑in encoder and communication feedback modules,support resolver,EnDat and other feedback types

Built‑in Interface:Motor holding‑brake output and motor temperature‑sensor input

Network Feature:Support DNA dynamic node allocation,simplify system commissioning

Protection:Hardware protection for overload,short‑circuit and ground‑fault

Installation:Cabinet‑mount natural air cooling;vertical hanging or upward horizontal mounting allowed;horizontal standing installation forbidden;power derating required above 500 m altitude,max altitude 4000 m

Status Indication:Multi‑color LED indicators for module ready status,running operation and fault diagnosis

Weight:Standard ACOPOSmulti cabinet‑mount module form‑factor

Degree of protection:IP20

Certification:CE,cULus,UKCA,KC,EAC certification

Working temperature:5℃ ~ +55℃;power derating for high ambient temperature and high altitude

Storage temperature:‑25℃ ~ +70℃

Relative humidity:5‑85% non‑condensing,pollution degree 2

Built‑in function:Cabinet‑mount single‑axis inverter converts high‑voltage DC‑bus power into variable‑frequency three‑phase AC power to drive high‑power servo motor. Integrated STO safety function satisfies machinery safety standard requirements. Dual expansion slots adapt multiple motor feedback signals. Reserved brake and temperature‑sensor interfaces simplify field‑side motor wiring. DNA dynamic node allocation shortens system configuration cycle. Cabinet‑mount natural‑cooling structure provides flexible cabinet layout without relying on system backplane. Comprehensive hardware protection improves equipment reliability against field wiring faults.

Product Brief

8BVI0110HWS0.000‑1 is high‑power single‑axis cabinet‑mount inverter of B&R ACOPOSmulti servo family. Compared with HW wall‑mount variant,this WS‑version adopts cabinet‑mount natural‑cooling design,optimized for compact cabinet layout for high‑power single‑axis applications.

Module connects to ACOPOSmulti power supply module via high‑voltage DC‑bus. Two internal expansion slots can be equipped with different feedback interface cards according to actual motor encoder type. Hardware STO safety circuit ensures safe torque‑off response under emergency‑stop and fault conditions. LED diagnostic lights support fast on‑site fault locating.

This is legacy spare part,widely used for maintenance and hardware replacement of old‑generation ACOPOSmulti motion‑control equipment. Before purchase,please confirm DC‑bus voltage,motor rated current,encoder feedback type. ESD anti‑static protection shall be performed during installation,hot‑swap under powered‑on state is prohibited. Terminal block accessories sold separately.
