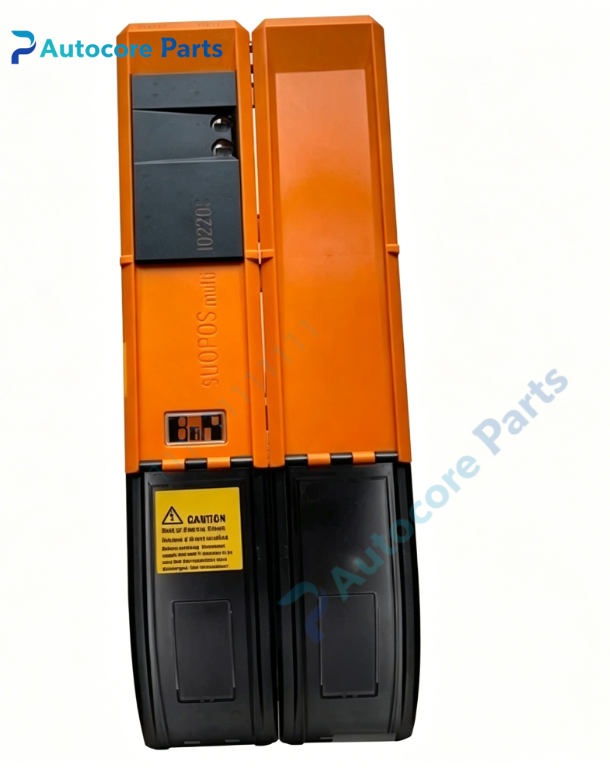

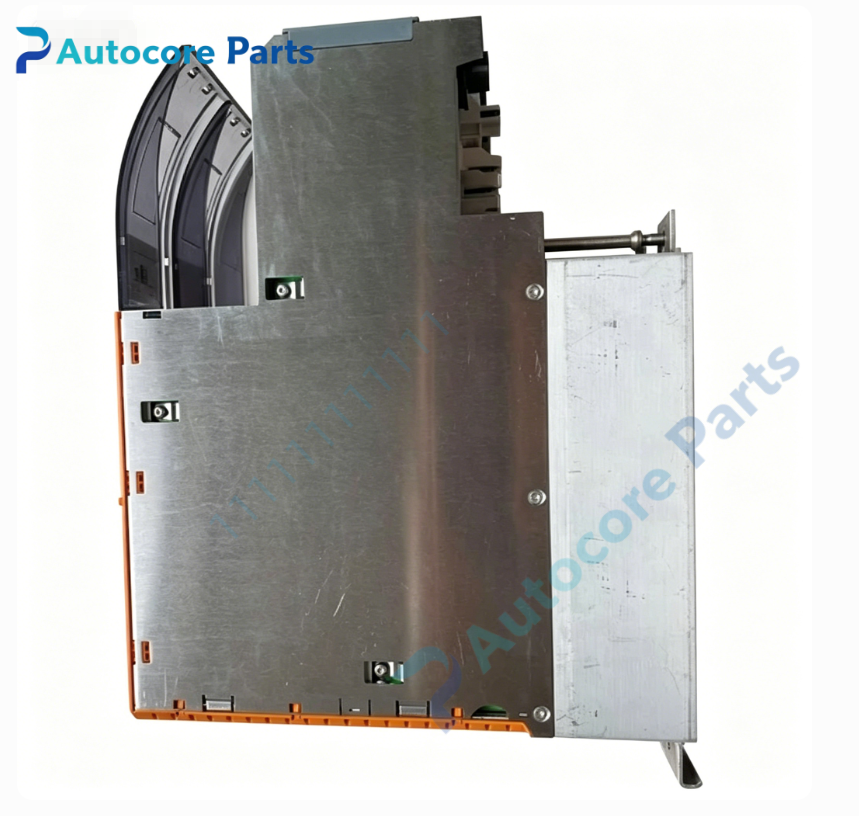

B&R 8BVI0220HWS0.000‑1 Inverter Module

Technical Specifications

Model:8BVI0220HWS0.000‑1

Brand:B&R

Product Type:ACOPOSmulti cabinet‑mount high‑power single‑axis servo inverter module

Applicable System:B&R ACOPOSmulti multi‑axis servo system,machine tools,packaging machinery,press equipment,heavy‑duty material handling high‑power single‑axis motion‑control production lines

DC‑bus:Nominal 750 VDC;wide operating DC‑bus range,matched with ACOPOSmulti power supply unit

Output Rating:Single independent servo axis;continuous effective current 30 A;rated continuous power 22 kW;short‑time peak current 75 A;support 5/10/20 kHz switching frequency;current derating required for high switching frequency and altitude above 500 m;max output frequency 598 Hz

Auxiliary Supply:24‑25 VDC auxiliary supply input;power consumption changes according to expansion‑slot and brake peripheral load

Safety Function:Integrated STO Safe Torque‑Off functional safety;built‑in safe stop and uncontrolled stop functions

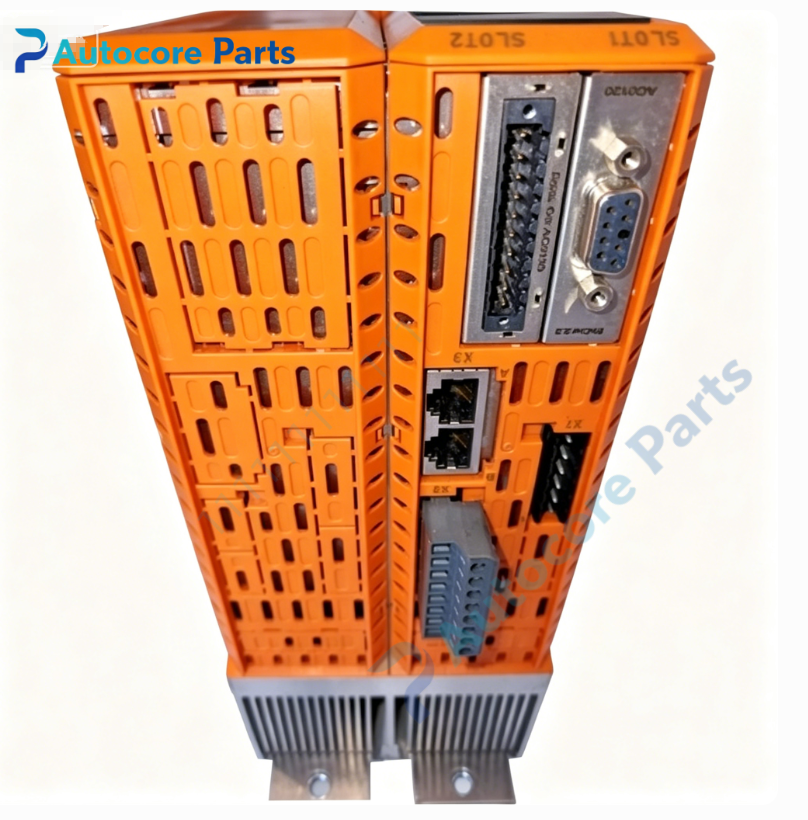

Expansion Hardware:2 internal slots for ACOPOSmulti plug‑in encoder and communication feedback modules,support resolver,EnDat and other mainstream motor feedback signals

Built‑in Interface:Motor holding‑brake output and motor temperature‑sensor input

Network Feature:Support DNA dynamic node allocation,simplify multi‑axis system network configuration and commissioning

Protection:Hardware multi‑protection for overload,short‑circuit and ground‑fault,automatic fault reset under partial conditions

Installation:Cabinet‑mount natural air cooling;vertical hanging or upward horizontal mounting allowed;horizontal standing installation forbidden;power derating for high ambient temperature and high altitude,max allowable altitude 4000 m

Status Indication:Multi‑color LED indicators for module ready status,running operation and fault diagnosis

Weight:Standard ACOPOSmulti cabinet‑mount module form‑factor

Degree of protection:IP20

Certification:CE,cULus,UKCA,KC,EAC certification

Working temperature:5℃ ~ +55℃;power derating required under high temperature and high altitude

Storage temperature:‑25℃ ~ +70℃

Relative humidity:5‑85% non‑condensing,pollution degree 2

Built‑in function:High‑power cabinet‑mount single‑axis inverter converts high‑voltage DC‑bus power into variable‑frequency three‑phase AC power,drives large‑power servo motor for heavy‑duty motion‑control occasions. Integrated STO hardware safety function complies with machine safety requirements. Dual expansion slots realize flexible matching of different motor feedback types. Reserved brake and temperature‑sensor interfaces simplify on‑site motor wiring. DNA dynamic node allocation reduces multi‑axis debugging workload. Cabinet‑mount natural‑cooling structure does not depend on system backplane,providing flexible cabinet layout scheme. Comprehensive hardware protection enhances system reliability against field wiring faults.

Product Brief

8BVI0220HWS0.000‑1 is heavy‑duty single‑axis cabinet‑mount inverter of B&R ACOPOSmulti servo family. Compared with 8BVI0110HWS0.000‑1,it greatly improves output current and power,applicable for equipment equipped with large‑torque high‑power servo motor.

It is connected to ACOPOSmulti power‑supply module via high‑voltage DC‑bus. Two internal expansion slots can install resolver,EnDat feedback cards according to actual motor encoder. STO safety circuit achieves reliable torque‑off response under emergency‑stop and fault conditions. LED status lights support fast on‑site fault locating.

This is legacy spare part,widely used for maintenance and hardware replacement of old‑generation ACOPOSmulti heavy‑duty motion‑control equipment. Before purchase,please confirm DC‑bus voltage,motor rated current and encoder feedback type. ESD anti‑static protection shall be performed during installation,hot‑swap under powered‑on state is prohibited. Terminal block accessories sold separately.
