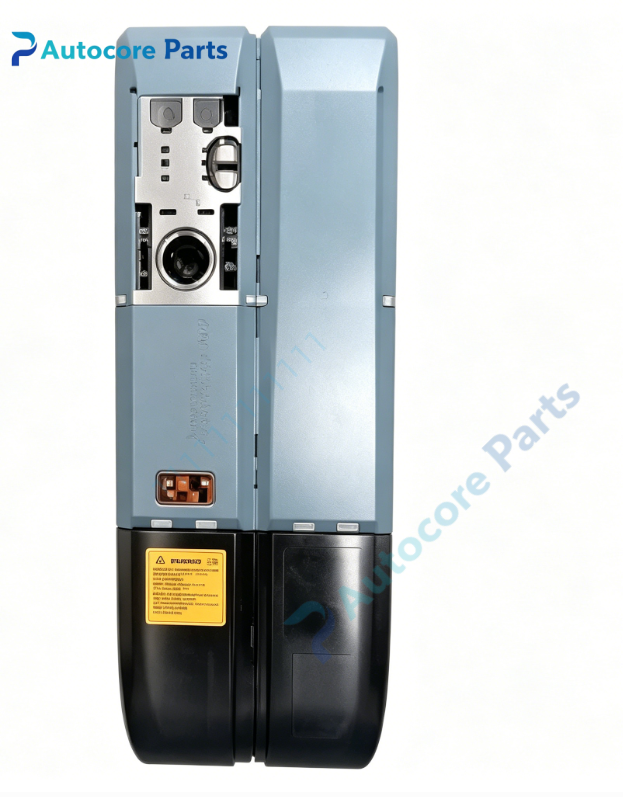

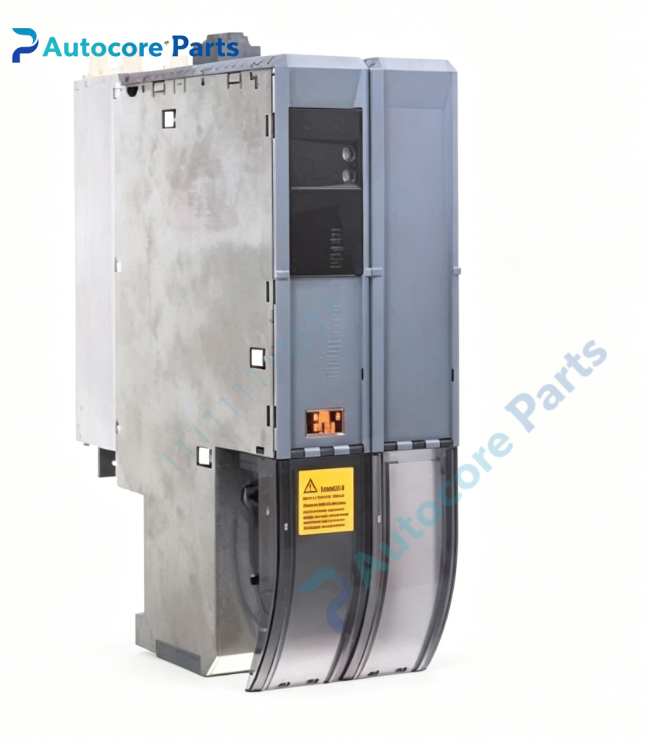

B&R 8BVP0440HW00.000‑1 Passive Power Supply Module

Technical Specifications

Model:8BVP0440HW00.000‑1

Brand:B&R

Product Type:ACOPOSmulti wall‑mount high‑power passive servo power supply module

Applicable System:B&R ACOPOSmulti multi‑axis servo drive system,machine tools,packaging machinery,heavy‑duty automated production lines without mains energy feedback requirement

Mains Input:3‑phase 380‑500 VAC ±10%,50/60 Hz;support TT,TN‑S,TN‑C‑S power grid systems

Electrical Rating:Apparent power 30.4 kVA;continuous output current 44 A;continuous power loss approx 300 W;inrush current 10A@400VAC;power‑on interval greater than 120s

DC‑bus Characteristic:Nominal 750 VDC DC‑bus;max chargeable DC‑bus capacitance:14.4 mF@400VAC,10 mF@480VAC;integrated pre‑charge circuit

Core Function:Integrated passive motor short‑circuit brake;reserved external braking resistor connection terminal;support DNA dynamic node allocation;no active regenerative feedback function

Auxiliary Power:24‑25 VDC auxiliary supply,supplied by external or ACOPOSmulti auxiliary supply module

Installation:Wall‑mount natural air cooling;vertical hanging or upward horizontal mounting allowed;horizontal standing installation forbidden;power derating required above 500 m altitude,max altitude 4000 m

Status Indication:Multi‑color LED indicators for power status,system fault and bus diagnosis

Dimension:Height 317 mm,Width 106.5 mm,Depth 263 mm

Weight:6.10 kg

Degree of protection:IP20

Certification:CE,cULus,UKCA,KC certification

Working temperature:5℃ ~ +55℃;power derating required for high ambient temperature

Storage temperature:‑25℃ ~ +70℃

Relative humidity:5‑85% non‑condensing,pollution degree 2

Built‑in function:Passive power supply converts three‑phase AC mains into stable 750VDC DC‑bus power for ACOPOSmulti inverter modules. Integrated passive short‑circuit brake realizes safe motor braking under fault and emergency‑stop conditions. Regenerative energy generated during axis deceleration shall be consumed by external brake resistor. DNA dynamic node allocation simplifies multi‑axis network configuration. Independent wall‑mount structure adapts flexible cabinet layout without relying on system backplane. Built‑in pre‑charge circuit limits inrush current during power‑on.

Product Brief

8BVP0440HW00.000‑1 is high‑power wall‑mount passive power supply of B&R ACOPOSmulti servo series. Compared with low‑power 8B0P0220HW00.001‑1,this unit provides higher current and apparent power for heavy‑duty multi‑axis systems.

As passive power unit,it cannot feed regenerative energy back to power grid,must match external brake resistor. Independent wall‑mount installation is suitable for cabinet schemes that do not adopt ACOPOSmulti system backplane. Cooperates with multiple inverter modules,capacitor modules to constitute complete high‑power multi‑axis motion‑control system.

This is legacy spare part,widely used for maintenance and hardware replacement of old‑generation ACOPOSmulti automation equipment. Before purchase,please confirm mains voltage,total servo axis power consumption and external brake‑resistor parameter. ESD anti‑static protection shall be performed during installation,hot‑swap under powered‑on state is prohibited. Terminal block accessories sold separately.
